92J09-012 Aftermarket Suzuki DF140 Service Kit (2010-12) | Sawley's Select Marine Parts

🔧 Product Description

Aftermarket Suzuki DF140 Service Kit - Kit Reference: 92J09-012

A major-service package for Suzuki DF140 four-stroke outboards in the 2010-2012 production group. It combines the later 92J water-pump system with the engine's ignition, oil, fuel, thermostat, anode and drain-seal service items.

⚙️ Key Features

• Model- and year-specific major service package

• Includes the specified Suzuki-pattern cooling, ignition, fuel and drain-sealing components

• Water-pump parts match the stated gearcase generation

• Includes the correct spark-plug type and quantity

• Designed for annual or major scheduled outboard servicing

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• 17400-92J23 → Later complete water-pump-kit reference for the 92J family

• 15440-90J00 → High-pressure fuel-filter reference for later DF140 service

OEM / Related Numbers:

• 92J09-012

• 09482-00427 / NGK BKR6E

• 16510-82703

• 09168-12012

• 09168-10022

• 17400-92J23

• 55321-87J01

• 09280-22019

• 11265-87E10

• 55320-94900

• 15410-87J30

• 09204-03003

• 17670-90J01

• 15440-90J00

Aftermarket / Verified Equivalents:

• Sawley's Select application-specific aftermarket service package

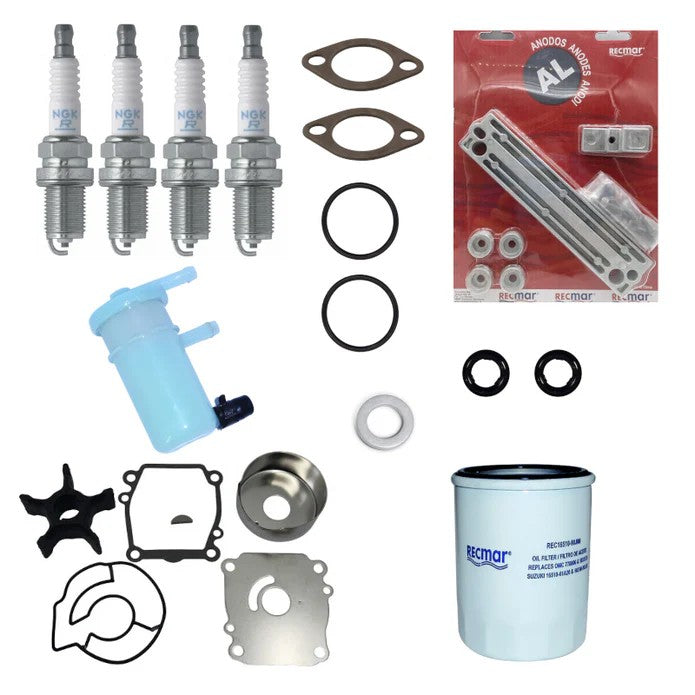

Included Components:

• 4 × NGK BKR6E spark plugs - Suzuki 09482-00427

• 1 × Oil filter - 16510-82703

• 1 × Engine-oil drain gasket - 09168-12012

• 2 × Gear-oil drain/fill gaskets - 09168-10022

• 1 × Water-pump repair kit - 17400-92J23

• 4 × Internal anodes - 55321-87J01

• 2 × Anode O-rings - 09280-22019

• 2 × Anode-cover gaskets - 11265-87E10

• 1 × Gearcase anode - 55320-94900

• 1 × Low-pressure fuel filter - 15410-87J30

• 1 × Propeller cotter pin - 09204-03003

• 1 × Thermostat - 17670-90J01

• 1 × High-pressure fuel filter - 15440-90J00

🚤 Compatibility

Commonly used on:

• Suzuki DF140 outboard service applications

Typically suits:

• Engine models:

• Suzuki DF140 four-stroke, 2010 model year

• Suzuki DF140 four-stroke, 2011 model year

• Suzuki DF140 four-stroke, 2012 model year

• HP Range: 140HP

• Engine Type: EFI inline-four four-stroke outboard

• Year Range: 2010-2012

• Serial Range: Confirm by DF140 model year and serial

🔌 Function

The service kit groups the routine ignition, lubrication, fuel-system, cooling-system and gearcase consumables required for a major scheduled service. Replacing the listed components helps maintain reliable starting, correct operating temperature, clean fuel delivery, adequate cooling-water flow and secure engine and gearcase sealing.

Common signs service is due:

• Hard starting, rough idle or misfire from worn or fouled spark plugs

• Restricted fuel delivery or unstable engine speed from a contaminated filter

• Engine temperature runs high because the thermostat or water pump is deteriorated

• Low oil pressure, dirty engine oil or a restricted oil filter on four-stroke engines

• Water or lubricant leakage from reused drain-plug seals

• Reduced cooling-water discharge or damaged impeller vanes

📦 Condition

• Brand new aftermarket service kit

• New and unused components

• Supplied in manufacturer or equivalent protective packaging
