17400-97820 Aftermarket Suzuki DF2.5HP Service Kit (2006-11) | Sawley's Select Marine Parts

🔧 Product Description

Aftermarket replacement DF2.5 Major Service Kit - Early Application - Kit / Reference: 17400-97820

New aftermarket maintenance kit replacing Suzuki 17400-97820 for early DF2.5 four-stroke outboards.

⚙️ Key Features

• Complete major scheduled-maintenance kit for the listed Suzuki engine family

• Matched cooling, ignition, fuel, lubrication and corrosion-control components

• Individual service parts identified by OEM or verified cross-reference number

• Designed to simplify annual or hour-based scheduled maintenance

• Engine model and serial number must be confirmed before installation

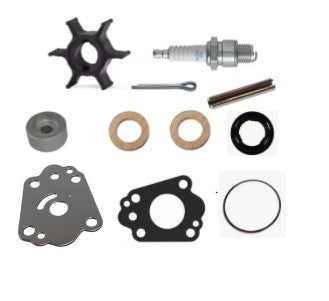

🧰 Kit / Assembly Contents

• 1 × Gearcase sealing gasket - Suzuki P/N 09168-10022

• 1 × Impeller/shear pin - Suzuki P/N 09202-02006

• 1 × Propeller cotter pin - Suzuki P/N 09204-02001

• 1 × Water-pump O-ring - Suzuki P/N 09280-33005

• 1 × Spark plug - Suzuki P/N 09482-00406 / NGK CR6HSA

• 1 × Water-pump impeller - Suzuki P/N 17461-97JM0

• 1 × Water-pump lower panel - Suzuki P/N 17471-97J00

• 1 × Water-pump panel gasket - Suzuki P/N 17472-97JL0

• 1 × Internal protection anode - Suzuki P/N 55321-87J01

• 2 × Gearcase drain-plug gaskets - Suzuki P/N 59178-97J00

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• 17400-97820 (Suzuki OEM maintenance-kit reference)

OEM / Related Numbers:

• 09168-10022

• 09202-02006

• 09204-02001

• 09280-33005

• 09482-00406

• 17461-97JM0

• 17471-97J00

• 17472-97JL0

• 55321-87J01

• 59178-97J00

Aftermarket / Verified Equivalents:

• Aftermarket component kit matched to Suzuki 17400-97820

🚤 Compatibility

Commonly used on:

• Suzuki outboard scheduled-maintenance applications

Typically suits:

• Engine models:

• DF2.5 four-stroke outboards

• HP Range: 2.5HP

• Year Range: 2006 - 2011

• Model / Serial Identification: Confirm the early propeller-pin configuration; 2012-up DF2.5 uses kit 17400-97810.

🔌 Function

This scheduled-maintenance kit groups the cooling, ignition, fuel, lubrication and corrosion-control components required for the listed engine family. Replacing the matched consumables together helps restore reliable starting, correct cooling-water flow, clean fuel and oil circulation, and leak-free drain and thermostat joints.

Common signs that service is due:

• The annual, 100-hour or manufacturer-specified service interval is due

• The engine's previous service history is unknown

• Cooling-water flow is weak or the engine runs hotter than normal

• Spark plugs are fouled, filters are restricted or starting quality has deteriorated

• Drain seals, pump components or sacrificial anodes show corrosion, wear or leakage

📦 Condition

• New aftermarket replacement service kit

• Brand new

• Supplied in original or equivalent packaging
