17400-89820 Aftermarket Suzuki DF25, DF30 Service Kit (2001-10) | Sawley's Select Marine Parts

🔧 Product Description

Aftermarket replacement DF25/DF30 Major Service Kit - Early Inline-Three - Kit / Reference: 17400-89820

New aftermarket maintenance kit corresponding with Suzuki 17400-89820 for early DF25 and DF30 inline-three four-stroke outboards.

⚙️ Key Features

• Complete major scheduled-maintenance kit for the listed Suzuki engine family

• Matched cooling, ignition, fuel, lubrication and corrosion-control components

• Individual service parts identified by OEM or verified cross-reference number

• Designed to simplify annual or hour-based scheduled maintenance

• Engine model and serial number must be confirmed before installation

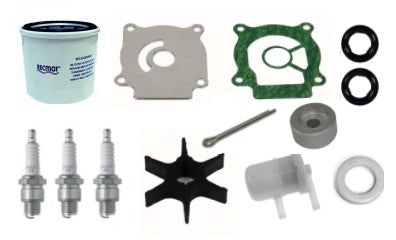

🧰 Kit / Assembly Contents

• 1 × Complete water-pump repair kit - Suzuki P/N 17400-96354

• 2 × Gearcase drain-plug gaskets - Suzuki P/N 09168-10022

• 1 × Engine-oil drain gasket - Suzuki P/N 09168-12012

• 1 × Propeller cotter pin - Suzuki P/N 09204-03003

• 3 × Spark plugs - Suzuki P/N 09482-00446 / NGK DCPR6E

• 1 × Protection-cover gasket - Suzuki P/N 11265-87E10

• 1 × Fuel filter - Suzuki P/N 15410-87J10

• 1 × Engine-oil filter - Suzuki P/N 16510-87J01

• 1 × Internal protection anode - Suzuki P/N 55321-87J01

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• 17400-89823 → Current service family replacing 17400-89822 and earlier 17400-89820

OEM / Related Numbers:

• 17400-89822

• 17400-89823

• 17400-96354

• 09168-10022

• 09168-12012

• 09204-03003

• 09482-00446

• 11265-87E10

• 15410-87J10

• 16510-87J01

• 55321-87J01

Aftermarket / Verified Equivalents:

• Aftermarket DF25/DF30 component service kit

🚤 Compatibility

Commonly used on:

• Suzuki outboard scheduled-maintenance applications

Typically suits:

• Engine models:

• DF25 inline-three four-stroke

• DF30 inline-three four-stroke

• HP Range: 25HP - 30HP

• Year Range: 2001 - 2010

• Model / Serial Identification: Later DF25A/DF30A engines use the 17400-9482x maintenance-kit family.

🔌 Function

This scheduled-maintenance kit groups the cooling, ignition, fuel, lubrication and corrosion-control components required for the listed engine family. Replacing the matched consumables together helps restore reliable starting, correct cooling-water flow, clean fuel and oil circulation, and leak-free drain and thermostat joints.

Common signs that service is due:

• The annual, 100-hour or manufacturer-specified service interval is due

• The engine's previous service history is unknown

• Cooling-water flow is weak or the engine runs hotter than normal

• Spark plugs are fouled, filters are restricted or starting quality has deteriorated

• Drain seals, pump components or sacrificial anodes show corrosion, wear or leakage

📦 Condition

• New aftermarket replacement service kit

• Brand new

• Supplied in original or equivalent packaging
