17400-94810 Aftermarket Suzuki DF9.9T/DF15 Service Kit (2011-13) | Sawley's Select Marine Parts

🔧 Product Description

Aftermarket replacement DF9.9T/DF15 Major Service Kit - Kit / Reference: 17400-94810

New aftermarket maintenance kit replacing Suzuki 17400-94810 for the 2011-2013 DF9.9T and DF15 four-stroke family.

⚙️ Key Features

• Complete major scheduled-maintenance kit for the listed Suzuki engine family

• Matched cooling, ignition, fuel, lubrication and corrosion-control components

• Individual service parts identified by OEM or verified cross-reference number

• Designed to simplify annual or hour-based scheduled maintenance

• Engine model and serial number must be confirmed before installation

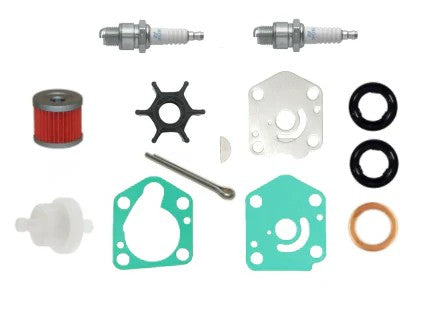

🧰 Kit / Assembly Contents

• 1 × Complete water-pump repair kit - Suzuki P/N 17400-94J00

• 2 × Gearcase drain-plug gaskets - Suzuki P/N 09168-10022

• 1 × Engine-oil drain gasket - Suzuki P/N 09168-12017

• 1 × Propeller cotter pin - Suzuki P/N 09204-02004

• 1 × O-ring - Suzuki P/N 09280-10013

• 2 × Spark plugs - Suzuki P/N 09482-00L04 / NGK CPR6EA-9

• 1 × Fuel filter - Suzuki P/N 15410-98500

• 1 × Engine-oil filter - Suzuki P/N 16510-45H10

• 1 × Water-pump case sleeve - Suzuki P/N 17413-94J00

• 1 × Protection zinc - Suzuki P/N 55321-90L00

• 1 × Internal protection anode - Suzuki P/N 55321-99E00

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• 17400-94810 (Suzuki OEM maintenance-kit reference)

OEM / Related Numbers:

• 17400-94J00

• 09168-10022

• 09168-12017

• 09204-02004

• 09280-10013

• 09482-00L04

• 15410-98500

• 16510-45H10

• 17413-94J00

• 55321-90L00

• 55321-99E00

Aftermarket / Verified Equivalents:

• Aftermarket DF9.9T/DF15 component service kit

🚤 Compatibility

Commonly used on:

• Suzuki outboard scheduled-maintenance applications

Typically suits:

• Engine models:

• DF9.9T

• DF15 four-stroke applications using the 94J maintenance family

• HP Range: 9.9HP - 15HP

• Year Range: 2011 - 2013

• Model / Serial Identification: Do not use on later DF9.9B/DF15A/DF20A engines.

🔌 Function

This scheduled-maintenance kit groups the cooling, ignition, fuel, lubrication and corrosion-control components required for the listed engine family. Replacing the matched consumables together helps restore reliable starting, correct cooling-water flow, clean fuel and oil circulation, and leak-free drain and thermostat joints.

Common signs that service is due:

• The annual, 100-hour or manufacturer-specified service interval is due

• The engine's previous service history is unknown

• Cooling-water flow is weak or the engine runs hotter than normal

• Spark plugs are fouled, filters are restricted or starting quality has deteriorated

• Drain seals, pump components or sacrificial anodes show corrosion, wear or leakage

📦 Condition

• New aftermarket replacement service kit

• Brand new

• Supplied in original or equivalent packaging
