🔧 Product Description
T70152 Raymarine EV-100 Wheel Pilot Complete Kit - Part Number: T70152
Wheel drive autopilot for small to medium sailboats
Model: EV-100 Wheel Pilot Complete Kit
Autopilot for Wheel Steered Sailboats

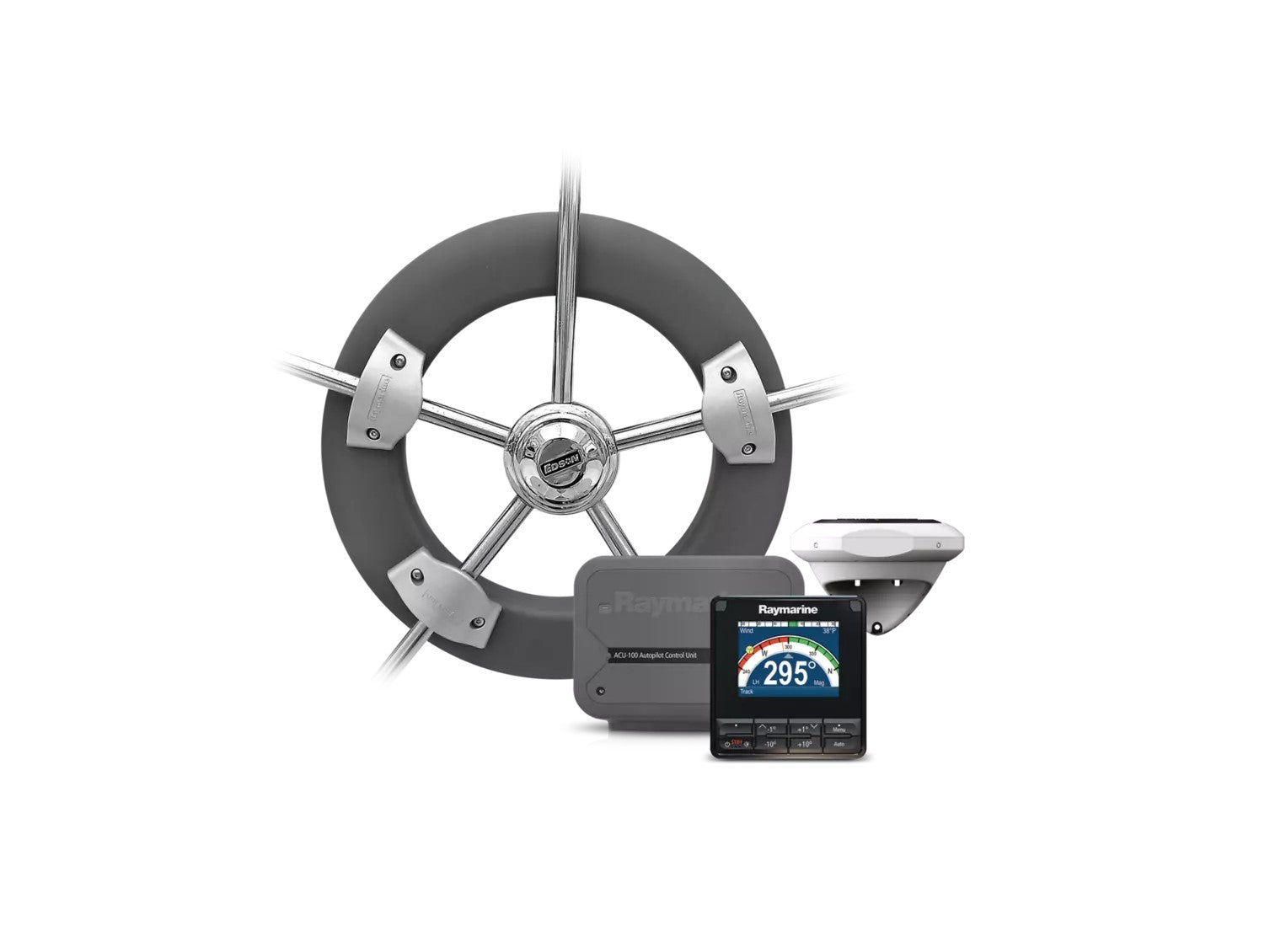

The EV-100 Wheel Pilot is a complete autopilot solution for wheel-steered sailboats. Designed for do-it-yourself installations, the EV-100 Wheel Pilot's externally mounted drive mounts in the cockpit, attached directly to the spokes of the boat's steering wheel. The EV-100 Wheel Pilot delivers precision autopilot control using the intelligent EV-1 sensor core and the ACU-100 actuator control unit. EV-100 Wheel Pilot systems are available with p70s autopilot control head, or choose a system without a control head and use a Raymarine Axiom chartplotter for full autopilot control.
EV-100 Wheel Pilot Key Features
- Rated for wheel-steered sailboats up to 16,500 lbs (7,500kg) displacement
- Tech Tip: Remember to always take your vessel's fully laden displacement weight into account (often 20% above the designed displacement).
- Designed for cockpit installations.
- SeaTalkNG/NMEA2000 for networking with sailing instruments and chartplotters
- Requires no complicated setup or autopilot calibration.
- Includes the EV-1 sensor core. An intelligent 9-axis heading sensor that uses aerospace guidance technology to adapt and evolve to changing sea conditions and vessel dynamics
Genuine Raymarine product supplied through Raymarine's Australian distributor, shipped Australia-wide from Kadina, SA.
📏 Specifications
| Output | |
|---|---|
| Drive current output | Maximum continuous 7 A at supply voltage |
| Physical | |
| Dimensions | Width: 180 mm (7.1 in), Height: 140 mm (5.5 in), Depth: 52 mm (2.0 in) |
| Weight | 0.6 kg (1.32 lbs) |
| Environmental | |
| Relative humidity | Max. 93% |
| Waterproof rating | Connector panel: IPx2, Drive electronics: IPx6 |
| Storage temperature | -30 °C to +70 °C (-22 °F to 158 °F) |
| Operating temperature | -20 °C to +55 °C (-4 °F to 131 °F) |
| Conformance | |
| Standards | Europe: 2004/108/EC, Australia and New Zealand: C-Tick, Compliance Level 2 |
| Power | |
| Power consumption (standby) | 300 mA (12 V) |
| Nominal supply voltage | 12 V dc |
| Operating voltage range | 10.8 V dc to 15.6 V dc |
| LEN (NMEA 2000 Load Equivalency Number) | 1 |
📦 What's in the box
- ACU unit
- Documentation
- Screws (pan head type)
- SeaTalkng spur to bare wires cable 1 m (3.3 ft)
✅ Condition
- Brand new genuine product
- Supplied in original packaging
- Full Australian manufacturer warranty
