🔧 Product Description
T70156 Raymarine EV-200 Power - Part Number: T70156
Autopilot for medium to large powerboats with hydraulic steering
Model: EV-200 Power Pilot (without drive)
Autopilot System for Hydraulic Outboards and Inboards
The EV-200 Power Pilot is a complete autopilot solution for powerboats with hydraulic steering. Ideal for many outboard or inboard powered boats, the EV-200 delivers precision autopilot control using the intelligent EV-1 sensor core and the ACU-200 actuator control unit.

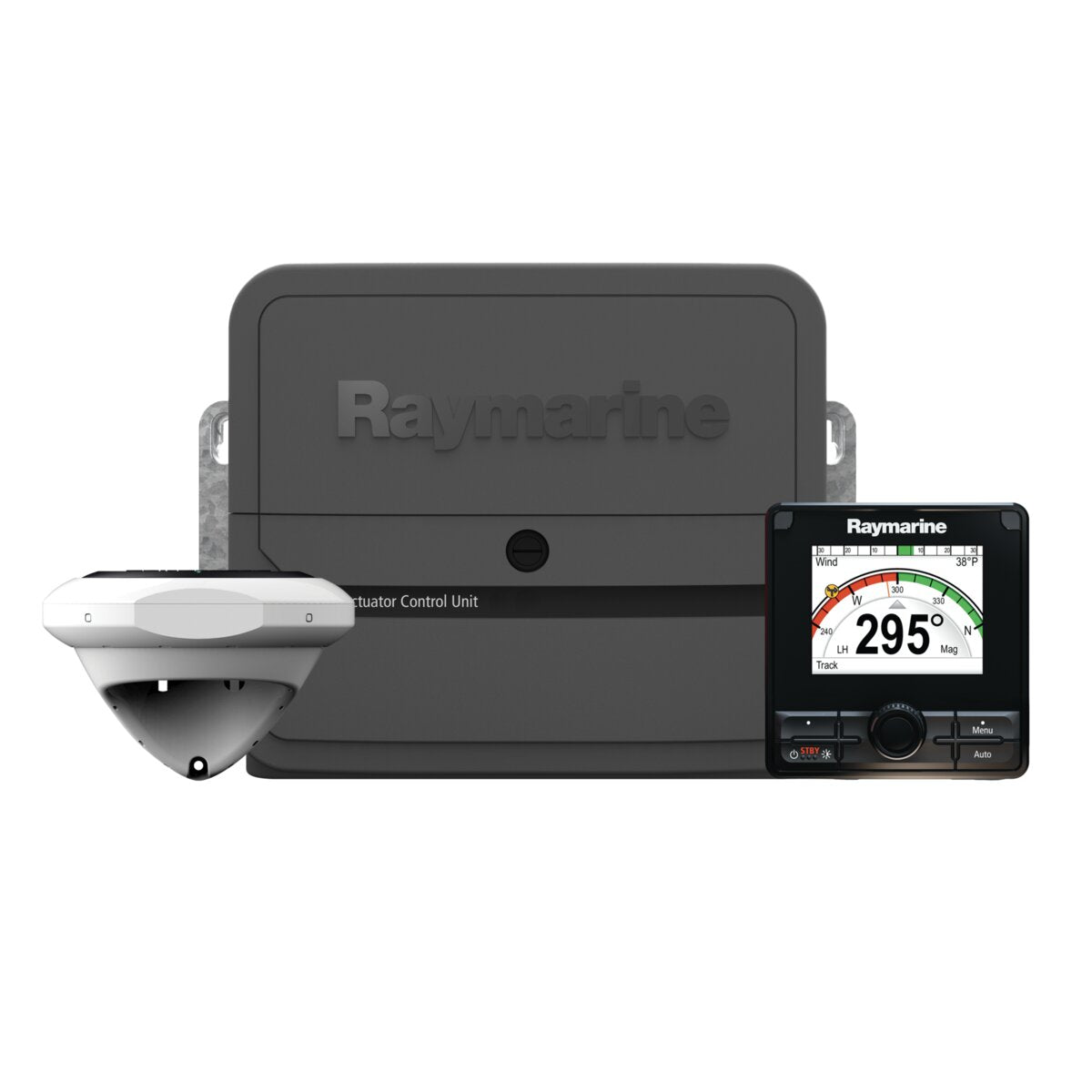

The complete system pack includes a Type 1 hydraulic autopilot pump that is compatible with outboard and inboard hydraulic steering cylinder capacities between 80cc – 230cc (4.9 in3–14in3). EV-200 Power Pilot systems are available with p70Rs autopilot control head, ACU-200 actuator control unit, EV-1 heading sensor and a 12 Volt Type 1 hydraulic pump.
Raymarine autopilot owners with an existing Type 1 hydraulic drive can upgrade to Evolution technology with Evolution Power Pilot kit without the type 1 drive included.
EV-200 Power Pilot Key Features
- Requires no complicated setup or autopilot calibration.
- Includes the EV-1 sensor core. An intelligent 9-axis heading sensor that uses aerospace guidance technology to adapt and evolve to changing sea conditions and vessel dynamics
- Exclusive Raymarine Hydro-Balance™ technology adjusts for elasticity in the hydraulic steering systems and compensates automatically to prevent steering oscillation. The result is precise course-keeping and no drive-unit hunting.
- The EV-200 autopilot steers so accurately you will save fuel and get to your destination faster.
Genuine Raymarine product supplied through Raymarine's Australian distributor, shipped Australia-wide from Kadina, SA.
📏 Specifications
| Output | |
|---|---|
| Drive current output | Maximum continuous 15 A at supply voltage |
| Physical | |
| Dimensions | Width: 180 mm (7.1 in), Height: 140 mm (5.5 in), Depth: 52 mm (2.0 in) |
| Weight | 0.6 kg (1.32 lbs) |
| Environmental | |
| Relative humidity | Max. 93% |
| Waterproof rating | Connector panel: IPx2, Drive electronics: IPx6 |
| Storage temperature | -30 °C to +70 °C (-22 °F to 158 °F) |
| Operating temperature | -20 °C to +55 °C (-4 °F to 131 °F) |
| Conformance | |
| Standards | Europe: 2004/108/EC, Australia and New Zealand: C-Tick, Compliance Level 2 |
| Power | |
| Power consumption (standby) | 300 mA (12 V) |
| Nominal supply voltage | 12 V dc |
| Operating voltage range | 10.8 V dc to 15.6 V dc |
| LEN (NMEA 2000 Load Equivalency Number) | 1 |
📦 What's in the box
- ACU unit
- Documentation
- Screws (pan head type)
- SeaTalkng spur to bare wires cable 1 m (3.3 ft)
✅ Condition
- Brand new genuine product
- Supplied in original packaging
- Full Australian manufacturer warranty
