🔧 Product Description
T70161 Raymarine EV-400 Sail Pilot Pack - Part Number: T70161
Autopilot for large sailboats with mechanical steering
Model: EV-400 Sail Pilot Pack (suitable for Type 2 & 3 drives)
EV-400 Sail Overview
The EV-400 Sail Pilot is the perfect solution for large sailboats with mechanical steering.

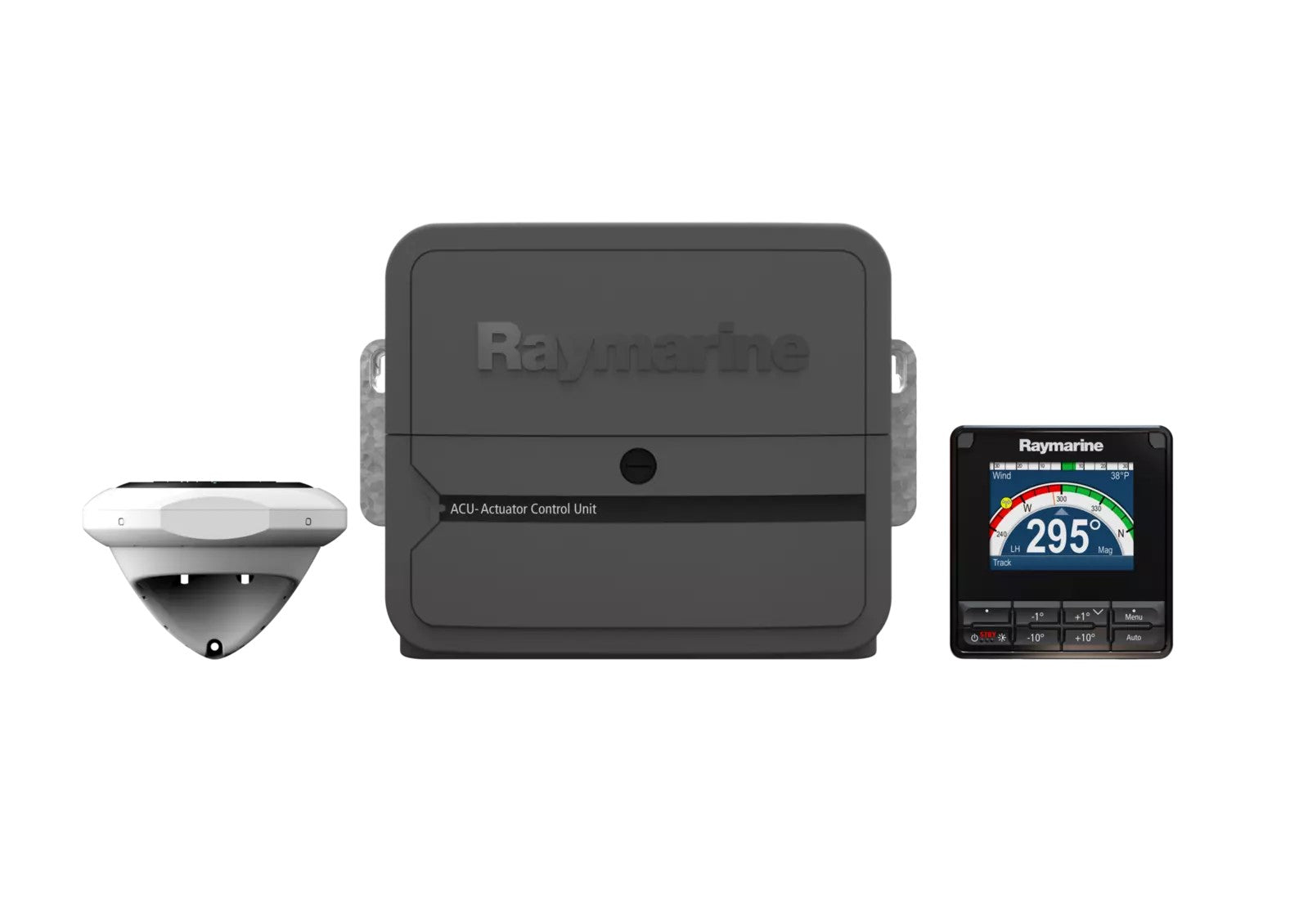

The EV-400 Sail Pilot kit includes the p70s colour, pushbutton autopilot controller, EV-1 sensor core, ACU-400 actuator control unit, rotary rudder feedback unit, and an Evolution cabling kit.
Choose any Type 2 or Type 3 mechanical linear, rotary or hydraulic linear autopilot drive unit to complete the system.
EV-400 Sail Pilot Key Features
- Suitable for large sailboats with mechanical steering systems
- Works Type 2 or Type 3 mechanical linear, rotary, or hydraulic linear drives
- Rotary rudder feedback sensor kit included
- SeaTalkNG/NMEA2000 for networking with instruments and chartplotters
- Requires no complicated setup or autopilot calibration.
- Includes the EV-1 sensor core. An intelligent 9-axis heading sensor that uses aerospace guidance technology to adapt and evolve to changing sea conditions and vessel dynamics
Genuine Raymarine product supplied through Raymarine's Australian distributor, shipped Australia-wide from Kadina, SA.
📏 Specifications
| Output | |
|---|---|
| Drive clutch output | Up to 4 A continuous at 12 V on 12 V systems Up to 4 A continuous at 24 V on 24 V systems Up to 4 A continuous at 12 V on 24 V systems |
| Drive current output | Maximum continuous 30 A at supply voltage |
| Physical | |
| Dimensions | Width: 285 mm (11.2 in), Height: 211.5 mm (8.3 in), Depth: 64.5 mm (2.5 in) |
| Weight | 2.2 kg (4.84 lbs) |
| Environmental | |
| Relative humidity | Max. 93% |
| Waterproof rating | Drip resistant |
| Storage temperature | -30 °C to +70 °C (-22 °F to 158 °F) |
| Operating temperature | -20 °C to +55 °C (-4 °F to 131 °F) |
| Conformance | |
| Standards | Europe: 2004/108/EC, Australia and New Zealand: C-Tick, Compliance Level 2 |
| Power | |
| Power consumption (standby) - main power supply | 300 mA (12 / 24 V) |
| Power output to SeaTalkng bus | 3 A @ 12 V (fuse protected at 3 A) |
| Power consumption (standby) - SeaTalkng bus | 20 mA (12 V) |
| Nominal supply voltage | 12 / 24 V dc |
| Operating voltage range | 10.8 V dc to 31.2 V dc |
| LEN (NMEA 2000 Load Equivalency Number) | 1 |
📦 What's in the box
- ACU unit
- Documentation
- Screws (pan head type)
- SeaTalkng spur to bare wires cable 1 m (3.3 ft)
✅ Condition
- Brand new genuine product
- Supplied in original packaging
- Full Australian manufacturer warranty
