🔧 Product Description
T70164 Raymarine EV-DBW Pilot - Part Number: T70164
Autopilot for boats with digital drive-by-wire steering systems
Model: EV-DBW Autopilot System
EV-DBW Overview
The EV-DBW Pilot system is an advanced, digital autopilot for boats with drive-by-wire electronic steering.
The EV-2 sensor core communicates directly with the boat's digital steering system using CAN bus communication for accurate, reliable autopilot control.

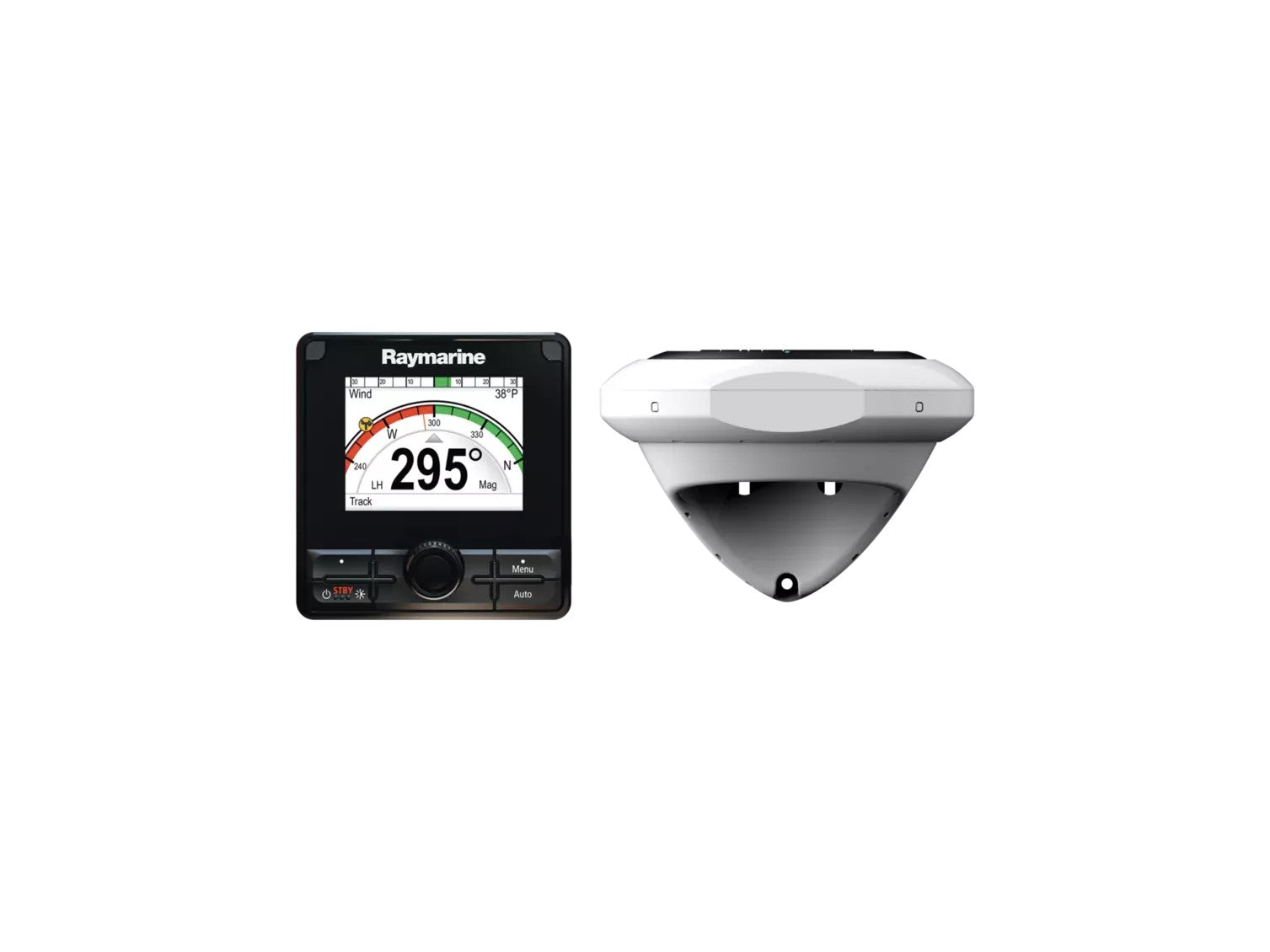

The EV-DBW Pilot kit includes the p70Rs colour, rotary autopilot controller, EV-2 sensor core, and an Evolution cabling kit.
EV-DBW Pilot Key Features
- Suitable for vessels with drive-by-wire digital steering
- SeaTalkNG/NMEA2000 for networking with instruments and chartplotters
- Requires no complicated setup or autopilot calibration.
- Includes the EV-2 sensor core. An intelligent 9-axis heading sensor that uses aerospace guidance technology to adapt and evolve to changing sea conditions and vessel dynamics
Genuine Raymarine product supplied through Raymarine's Australian distributor, shipped Australia-wide from Kadina, SA.
📏 Specifications
| Environmental | |
|---|---|
| Relative humidity | Max. 93% |
| Waterproof rating | IPx6 |
| Storage temperature | -30 °C to +70 °C (-22 °F to 158 °F) |
| Operating temperature | -25 °C to +55 °C (-13 °F to 131 °F) |
| Power | |
| Nominal supply voltage | 12 V dc |
| Operating voltage range | 10.8 V dc to 15.6 V dc |
| Power consumption | 30 mA |
| LEN (NMEA 2000 Load Equivalency Number) | 1 |
| Physical | |
| Dimensions | Diameter: 140 mm (5.5 in), Depth (including mounting enclosure): 35 mm (1.4 in), Depth (including wall bracket): 95 mm (3.8 in) |
| Sensors | 3-axis digital accelerometer, 3-axis digital compass, 3-axis gyro digital angular rate sensor |
| Weight | 0.29 kg (0.64 lbs) |
| Conformance | |
| Standards | Europe: 2004/108/EC, Australia and New Zealand: C-Tick, Compliance Level 2 |
✅ Condition
- Brand new genuine product
- Supplied in original packaging
- Full Australian manufacturer warranty
