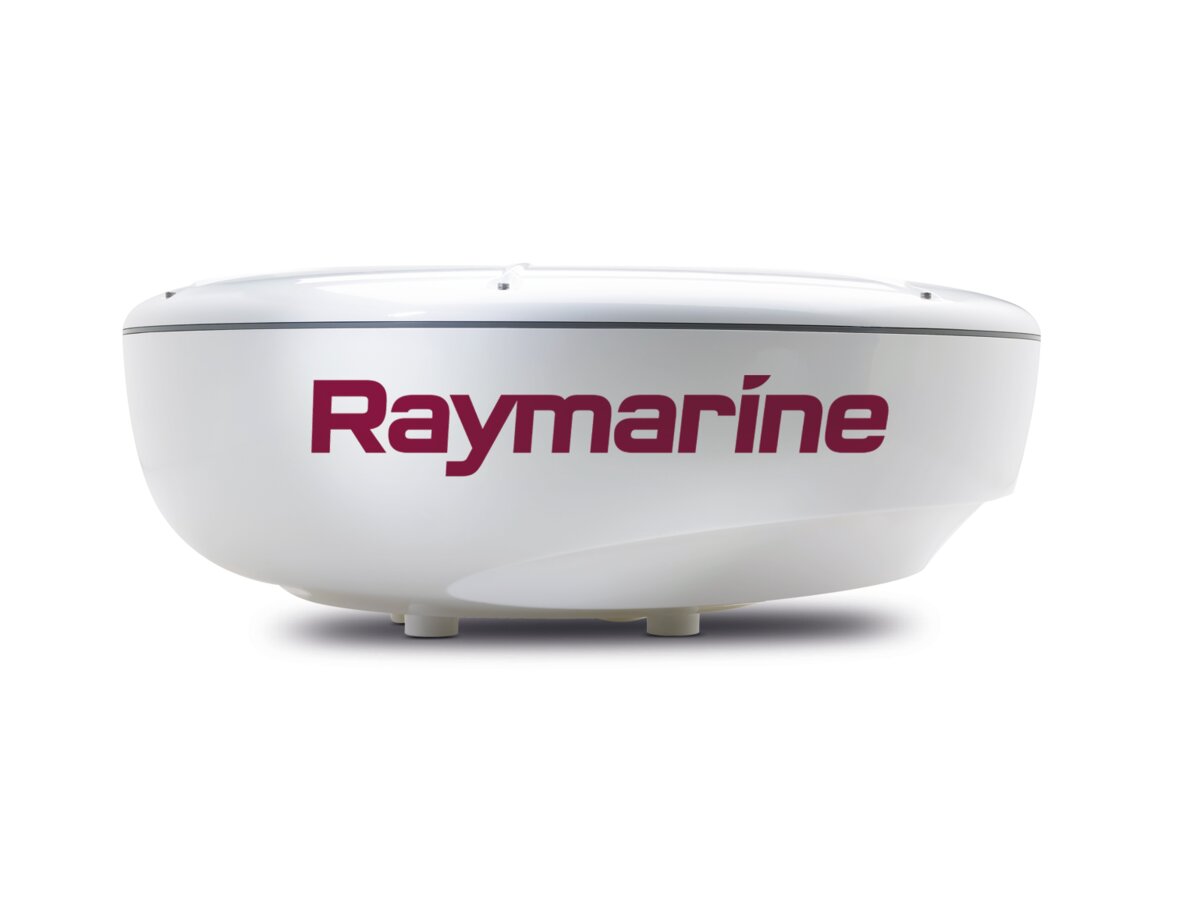

T70169 Raymarine 4kW 24" (608mm) HD Colour Radome + 10m Raynet Cable - Part Number: T70169
Proven magnetron based high-performance radomes for commercial applications. Trusted by the United States Coast Guard and available in 18" and 24" versions.
Model: RD424HD Colour 24" Radome
High performance radomes
Day and night Raymarine HD Radomes keep you aware of surrounding traffic, hazards, obstacles, and approaching weather. Navigate confidently in dense fog, rain, and limited visibility. Radome antennas are the perfect blend of compact size, lightweight, and high performance. Choose a Radome antenna when space is a premium or restricted by rigging. HD Radome scanners deliver trusted radar performance while consuming less power than magnetron based open array scanners.
HD Radome Key Features
- Powerful 4kW transmitter delivers trusted Raymarine radar performance
- Automatic tuning modes deliver superior target detection and lifelike target presentation
- Buoy, Harbor, Coastal, Offshore, and Bird automatic tuning modes
- Manual radar adjustments for Tune, Gain, Colour Gain, Sea Clutter and Rain
- An adaptive transmitter/receiver seamlessly adapt to shifts in the environment, ensuring reliable target returns in all sea conditions
- Enhanced collision avoidance with MARPA target tracking
- Fast target tracking with 48 RPM scanner rotation speed
- Compatible with Raymarine Axiom family chartplotters
- Support for radar/chart overlay, AIS target overlay, and FLIR camera target tracking with Axiom chartplotter displays
HD Radome Cable Options
Digital Radar Cable with RJ45 Connector
5m, 10m, 15m and 25m digital radar cables with RJ45 connectors.
Digital Radar Cable with RayNet Connector
5m, 10m, 15m and 25m digital radar cables with RayNet connectors.
Digital Radar Extension Cable
2.5m, 5m and 10m digital radar extension cables.
Genuine Raymarine product supplied through Raymarine's Australian distributor, shipped Australia-wide from Kadina, SA.
📏 Specifications
| General | |
|---|---|
| Dimensions - 18" antenna | Φ521 mm x 247 mm (20.5 in x 9.7 in) |
| Dimensions - 24" antenna | Φ652 mm x 247 mm (25.67 in x 9.7 in) |
| Weight - 18" antenna | 9.5 kg (21 lbs) |
| Weight - 24" antenna | 10 kg (22 lbs) |
| Supply voltage | Either 12 V dc or 24 V dc nominal Minimum: 10.8 V Maximum: 33 V |
| Power consumption | 60 W (25 W standby) |
| Waterproof to | IPX6 |
| Operating temperature range | -25 °C to +55 °C (-13 °F to +131 °F) |
| Humidity | Up to 95% at 35 °C (95 °F) |
| Maximum wind speed | 100 kts |
| Maximum range scale | 48 Nautical miles (Nm) |
| Transmitter | |
| Type | Solid-state modulator, driving magnetron |
| Transmit frequency | 9405 MHz ±25 MHz |
| Peak power output | 4 kW |
| Duplexer | Circulator |
| Standby mode | Magnetron heater - ON Magnetron control - ON All other services - OFF |
| Antenna | |
| Type | Patch array |
| Beamwidth (nominal) | Horizontal: 4.9° (18 in antenna), 3.9° (24 in antenna) Vertical: 25° |
| Polarisation | Horizontal |
| Rotation speed | 24 rpm nominal 48 rpm with compatible displays |
| Receiver | |
| Intermediate frequency | 70 MHz |
| Receiver characteristic | Linear |
| Receiver noise | Less than 5 dB (including low noise converter and IF amplifier) |
| Bandwidth | Matched digital filter for each pulse length |
| Compatibility | |
| Axiom 2 XL - 16", 19", 22" and 24" models | Yes |
| Axiom 2 Pro - 9", 12" and 16" RVM and -S variants | Yes |
| Axiom+ - 7", 9" and 12" RV and chartplotter variants | Yes |
| Element - 7", 9" and 12" HV and -S variants | No |
| Axiom XL - 16", 19", 22" and 24" models | Yes |
| Axiom Pro - 9", 12" and 16" RVX and -S variants | Yes |
| Axiom - 7", 9" and 12" RV and chartplotter variants | Yes |
| gS-Series - gS95, gS125 and gS165 | Yes |
| eS-Series - eS95, eS97, eS98, eS125, eS127, eS128, eS165 | Yes |
| e-Series - e7, e7D, e95, e97, e125, e127, e165 | Yes |
| c-Series - c95, c97, c125, c127 | Yes |
| a-Series - a75, a77, a78, a95, a97, a98, a125, a127, a128 | Yes |
| E-Series Widescreen - E90W, E120W, E140W | Yes |
| C-Series Widescreen - C90W, C120W, C140W | Yes |
| G-Series Classic - GPM400 | Yes |
| E-Series Classic - E80, E120 | Yes |
📦 What's in the box
- Radome Antenna
- M8 bolt (x4)
- Spring washer (x4)
- Flat washer (x4)
- Denso paste
- Installation template
✅ Condition
- Brand new genuine product
- Supplied in original packaging
- Full Australian manufacturer warranty
