T70327 Raymarine RS150 With Pole Mounting Kit | Genuine Raymarine Electronics
T70327 Raymarine RS150 With Pole Mounting Kit | Genuine Raymarine Electronics
Couldn't load pickup availability
✓ Authorised Volvo Penta Dealer · Marine & auto specialists · Ships Australia-wide
🔧 Product Description

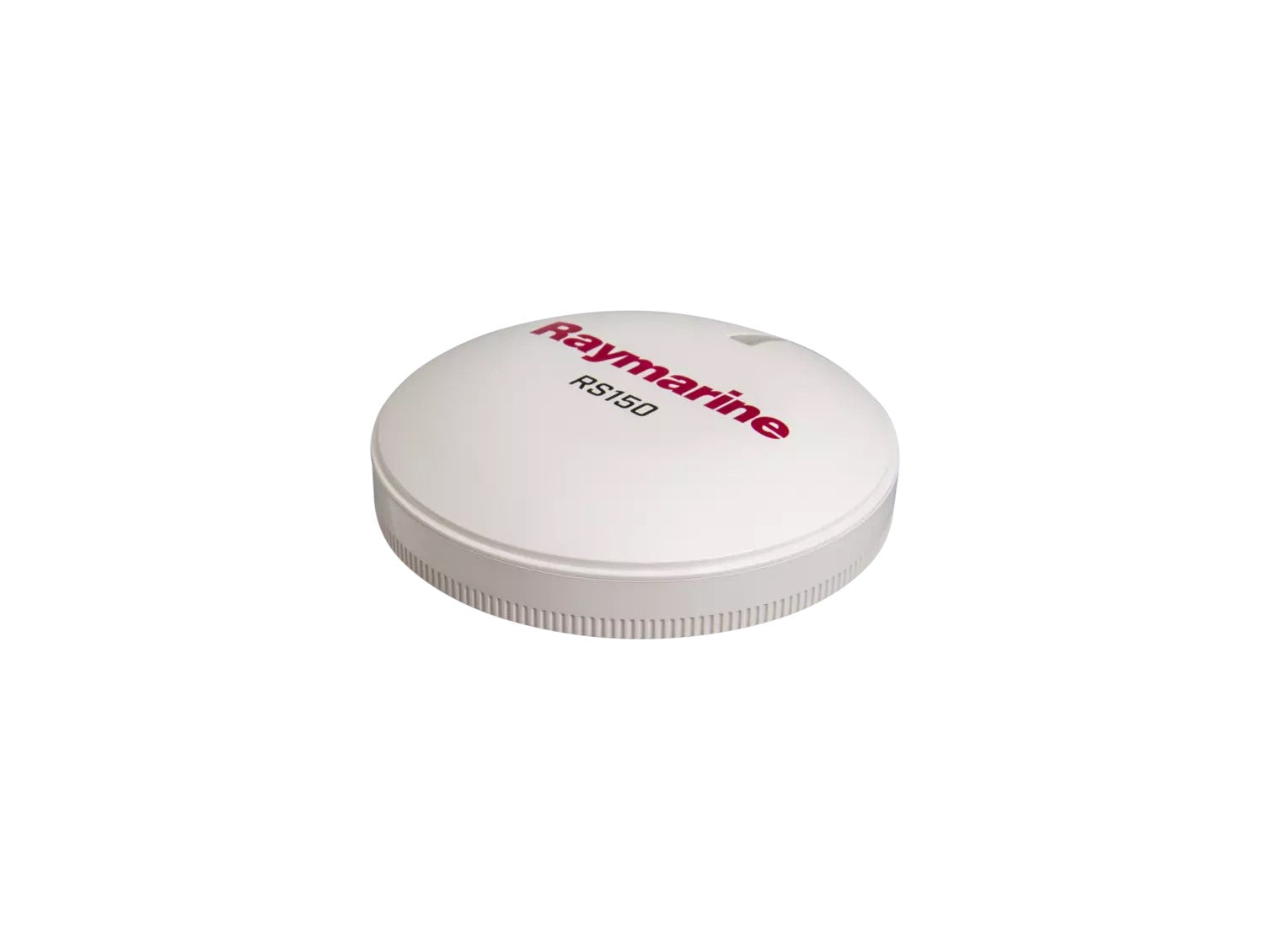

T70327 Raymarine RS150 With Pole Mounting Kit - Part Number: T70327
The RS150 GPS is a high-performance, self-contained, remotely mounted GPS/GNSS sensor for Raymarine navigation systems.
Model: RS150 with pole mounting kit
High Performance GPS Sensor
The RS150 GPS is a high-performance, remotely mounted GPS/GNSS sensor for Raymarine navigation systems. Choose the RS150 when a dedicated remotely mounted, network-compatible GPS sensor is required.
RS150 Key Features
- 72-channel GPS receiver
- Fast 10Hz position updates
- Satellite differential GPS-compatible. Space-Based Augmentation System (SBAS) enabled with WAAS, EGNOS, MSAS and GAGAN support
- A GNSS receiver with GLONASS compatibility
- Low power consumption: 30mA (1 LEN)
- SeaTalkng and NMEA2000 compatible (using a device net adapter cable)

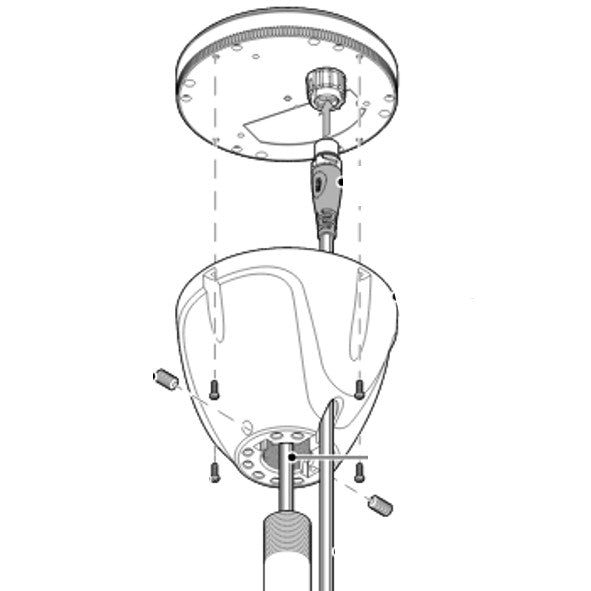

- Designed for low profile surface mounting or optional pole mounting
Genuine Raymarine product for the Australian market, with Australian warranty support.
📏 Specifications
| GNSS (GPS) | |
|---|---|
| Position accuracy | Without SBAS: ≤ 15 metres 95% of the time, With SBAS: ≤ 5 metres 95% of the time |
| Geodetic Datum | WGS84 |
| Satellite Differential Type (SBAS) | WAAS (United States), EGNOS (Europe), MSAS (Japan), GAGAN (India) |
| GNSS compatibility | BeiDou and Galileo ready (supported by future software update) |
| Differential acquisition | Automatic |
| Signal acquisition | Automatic |
| Sensitivity | -163 dBm (tracking), -147 dBm (acquisition) |
| Time to first fix from hot start | < 8 seconds |
| Time to first fix from cold start | < 2 minutes (< 45 seconds typical) |
| Speed accuracy (95%) | < 0.3 knots |
| Channels | 72 |
| Environmental | |
| Relative humidity | Up to 93% |
| Waterproof rating | IPx6 |
| Storage temperature | -25°C to +70°C (-13°F to 158°F) |
| Operating temperature | -25°C to +55°C (-13°F to 131°F) |
| Physical | |
| Connections | SeaTalkng |
| Dimensions | Height: 26.61 mm (1.05 in) Diameter: 108.48 mm (4.27 in) |
| Conformance | |
| Standards | Europe: 2004/108/EC, Australia and New Zealand: C-Tick, Compliance Level 2 |
| Power | |
| Operating voltage range | 9 V dc to 16 V dc (protected up to 32 V dc) |
| Power consumption | 30 mA |
| Nominal supply voltage | 12 V dc (Supplied by SeaTalkng network) |
| LEN (NMEA 2000 Load Equivalency Number) | 1 |
📦 What's in the box
- GNSS receiver
- Mounting gasket
- Documentation
- SeaTalkng (White) cable 6 m (19.69 ft)
- Threaded studs (M4x40mm) x 3
- Finger nuts x 3
✅ Condition
- Brand new genuine product
- Supplied in original packaging
- Full Australian manufacturer warranty
