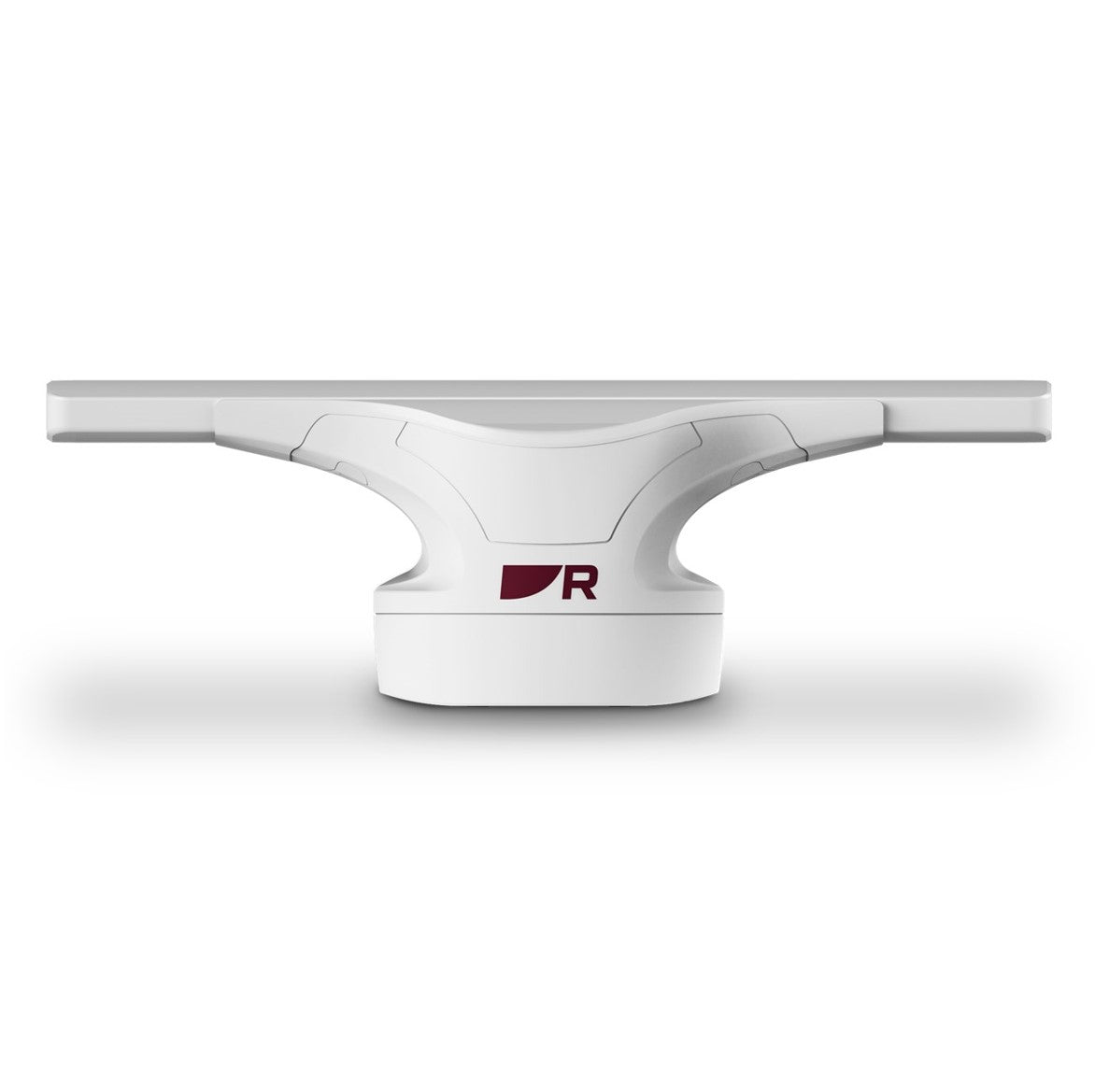

T70494 Raymarine Cyclone Pro 110 Watts 3ft Open Array Radar with 15m Cables - Part Number: T70494
110 Watt open array with CHIRP Pulse Compression technology. Available with your choice of a 3, 4, or 6-foot antenna array. This powerful 110-watt solid-state radar is equivalent to a 12kW magnetron radar, offering extended range performance up to 96 NM.
Model: Cyclone Pro 3ft Open Array Pack
Increased power for superior range
With a powerful 110-watt solid-state transmitter, Cyclone Pro delivers superior target separation and increased long-range resolution using CHIRP pulse compression and beam sharpening technology. The increased power output of Cyclone Pro is equivalent to a 12kW magnetron radar and gives Cyclone Pro a range of up to 96 nautical miles.
Cyclone Pro model features innovative detection capabilities, including Doppler target tracking, RangeFusion™ technology, Bird Mode and high-speed 60 rpm imaging.
Cyclone Radar Features
Aircraft wing inspired
Engineered for extremes with best-in-class 100-knot wind rating and designed to meet the commercial grade IEC 62388 standard for ship bourne radar.
Low profile
At 13.1 inches (335 mm) tall, Cyclone’s lower profile allows greater flexibility of boat architecture and more adaptable installation options.
Clean installation
Innovative pedestal design conceals cable connections for a cleaner installation. Built in cable gland to allow sleeker design configuration to boat designers.
Enhanced Situational Awareness
RangeFusion™ technology
Available exclusively on Cyclone radars, RangeFusion™ technology combines short and long pulses into the single high clarity radar image, delivering exceptional short-range and long-range targets simultaneously.
Doppler target tracking
Available exclusively on Quantum 2 radomes and Cyclone open array radars, Doppler allows the radar to instantly detect targets in motion and display them in a unique colour palette. Inbound targets are red while outbound targets are green for improved awareness in high-traffic situations.
Genuine Raymarine product supplied through Raymarine's Australian distributor, shipped Australia-wide from Kadina, SA.
📏 Specifications
| General | |
|---|---|
| Antenna Size | 3 / 4 / 6 Foot Array |
| Max Range Scale | 96 Nm |
| Rotation Speed | 12 / 24 / 36 / 48 / 60 rpm |
| Boot Up time | 40 seconds |
| Standby to Transmit | Less than 5 seconds |
| Power Connection | 1x Power connector |
| Data Connection | 1x RayNet connector |
| Transmitter Frequency | 9370, 9400, 9430 MHz (User Selectable) |
| Receiver Characteristic | Linear |
| Receiver Noise | Less than 5 dB |
| Power | |
| Peak Power Output | 110 W |
| Supply voltage (Using VCM100) | Nominal: 12 V dc or 24 V dc Minimum: 10.2 V dc Maximum: 31.2 V dc |
| Power Consumption (Typical) | 95 W |
| Power Consumption (Max) | 195 W |
| Power Consumption (Standby) | 30 W |
| Antenna / Beam | |
| Beamwidth (vertical) | 25° |
| Beamwidth (horizontal) | 2.83° |
| Polarisation | Horizontal |
| Length | 1031 mm / 40.59 in |
| Weight | 7 Kg / 15.4 lb |
| Pedestal | |
| Dimensions | 388 mm x 360 mm x 335 mm / 15.27 in x 14.17 in x 13.18 in (to the top of the antenna) |
| Weight | 16 Kg |
| Environmental | |
| Waterproof Rating | IPX6 |
| Operating Temperature Range | -25°C to +55°C (-13°F to 131°F) |
| Humidity | Up to 93% at 40°C (104°F) |
| Maximum Wind Speed | 100 Kts |
| ARPA | |
| Target tracking | Tracking of 100 simultaneous ARPA targets. |
| Conformance | |
| Standards (Canada) | RSS138 Iss. 1, Technical Acceptance Certificate, Cyclone: IC:4069B-953LPSSR, Cyclone Pro: IC:4069B-953MPSSR |
| Standards (European Union & EFTA) | Radio Equipment Directive 2014/53/EU, Self-Declaration |
| Standards (Australia / New Zealand) | ACMA Declaration of Conformity, Compliance level 3 |
| Standards (USA) | 47CFR Part 80, Certificate of Approval, Cyclone: FCC ID: PJ5-953LPSSR, Cyclone Pro: FCC ID: PJ5-953MPSSR |
| Receiver | |
| Receiver characteristic | Linear |
| Receiver noise | Less than 5 dB |
| Physical (Antenna) | |
| Dimensions | 3 Foot Antenna Length: 1031 mm (40.5 inches) 4 Foot Antenna Length: 1336 mm (52.59 inches) 6 Foot Antenna Length: 1945mm (76.57 inches) |
| Weight | 3 Foot Antenna Weight: 7Kg (15.43lbs) 4 Foot Antenna Weight: 9Kg (19.84lns) 6 Foot Antenna Weight: 12Kg (26.45lbs) |
| Antenna | |
| Polarisation | Horizontal |
| Beamwidth (vertical) | 25° |
| Rotation speed | 12 RPM / 24 RPM/ 36 RPM / 48 RPM/ 60 RPM |
| Beamwidth (horizontal) | 3 Foot Antenna:2.83° 4 Foot Antenna:1.99° 6 Foot Antenna1.32° |
| Transmitter | |
| Transmitter frequency | 9370, 9400, 9430 MHz (User Selectable) |
📦 What's in the box
- Radar pedestal
- M10 stud x 4
- M10 nut x 8
- M10 spring washer x 4
- M10 plain washer x 4
- Cable gasket
- Radar Antenna
- M8 Hex Bolt x4
- M8 Plain Washer x 4
- M8 Spring Washer x 4
- O Ring x 4
- RayNet data cable
- Power cable
- Denso paste
- Documentation pack
✅ Condition
- Brand new genuine product
- Supplied in original packaging
- Full Australian manufacturer warranty
