T70545 Raymarine AXIOM2 XL 16 - 15.6" Glass Bridge Multi-function Display Kit - Part Number: T70545

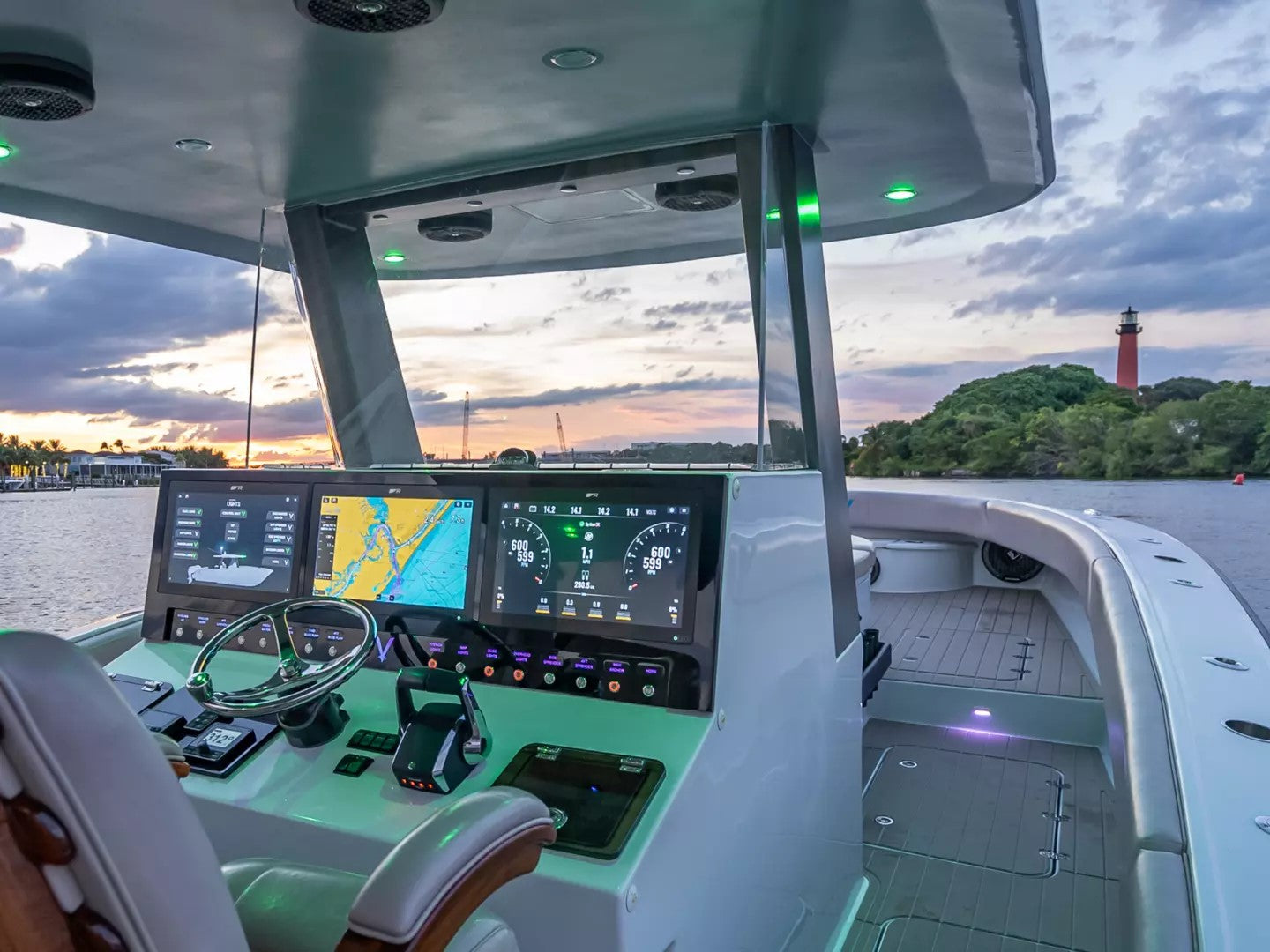

Axiom 2 XL chartplotters are designed for premier glass‑bridge helms, combining expansive displays with advanced networking and video integration for elegant, centralized control. Available in 16, 19, 22, or 24‑inch sizes.
Model: Axiom 2 XL 16 Chartplotter Kit
A Commanding View
The flagship of the Axiom family, Axiom 2 XL delivers powerful chartplotter performance, stylish large-format navigation, and the confidence of the LightHouse operating system. Designed for all weather conditions, the rugged yet beautiful Axiom 2 XL displays are at home in open cockpits or enclosed glass bridge stations. Enhanced with powerful 6-core processors, expanded networking, and ultra-bright HydroTough displays, Axiom 2 XL is the premium chartplotter for captains who demand the best.
Power that Pushes the Limits
Axiom 2 XL chartplotters do everything faster. Pan and zoom charts with ease and harness the full power of Axiom 2 XL with radar, sonar modules, autopilot, and video integrated seamlessly with the intelligent LightHouse operating system.
6 Core Processor
Get underway and do everything faster
Ample Storage
64 GB for waypoints, apps, and LightHouse Charts
Smooth Video and Faster Charts
Faster video frame rates and 30% faster chart rendering
Ready for All Conditions
Axiom 2 XL's exclusive HydroTough™ nano-coating technology repels water for confident touchscreen control, beautiful colors, and excellent sunlight visibility.
Smart Backlighting
Axiom 2 XL's ambient light sensor automatically adjusts display brightness for day and evening lighting conditions.
Remote Control
Navigate effortlessly with Axiom 2 XL's touchscreen or take command with the optional RMK-10 remote keypad. The RMK-10 provides full remote control of every Axiom on the helm.

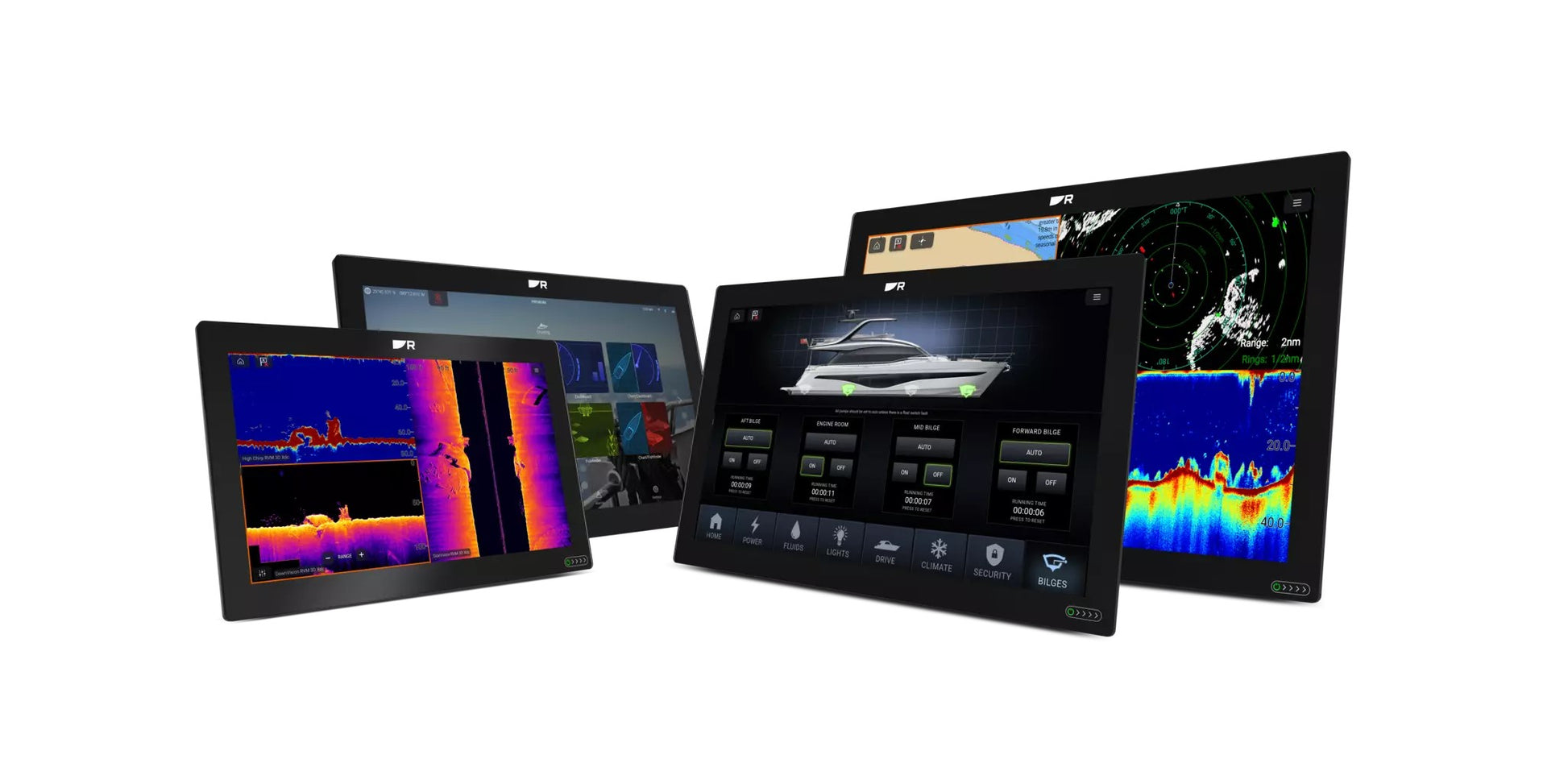

One Display- Endless Possibilities
Discover More

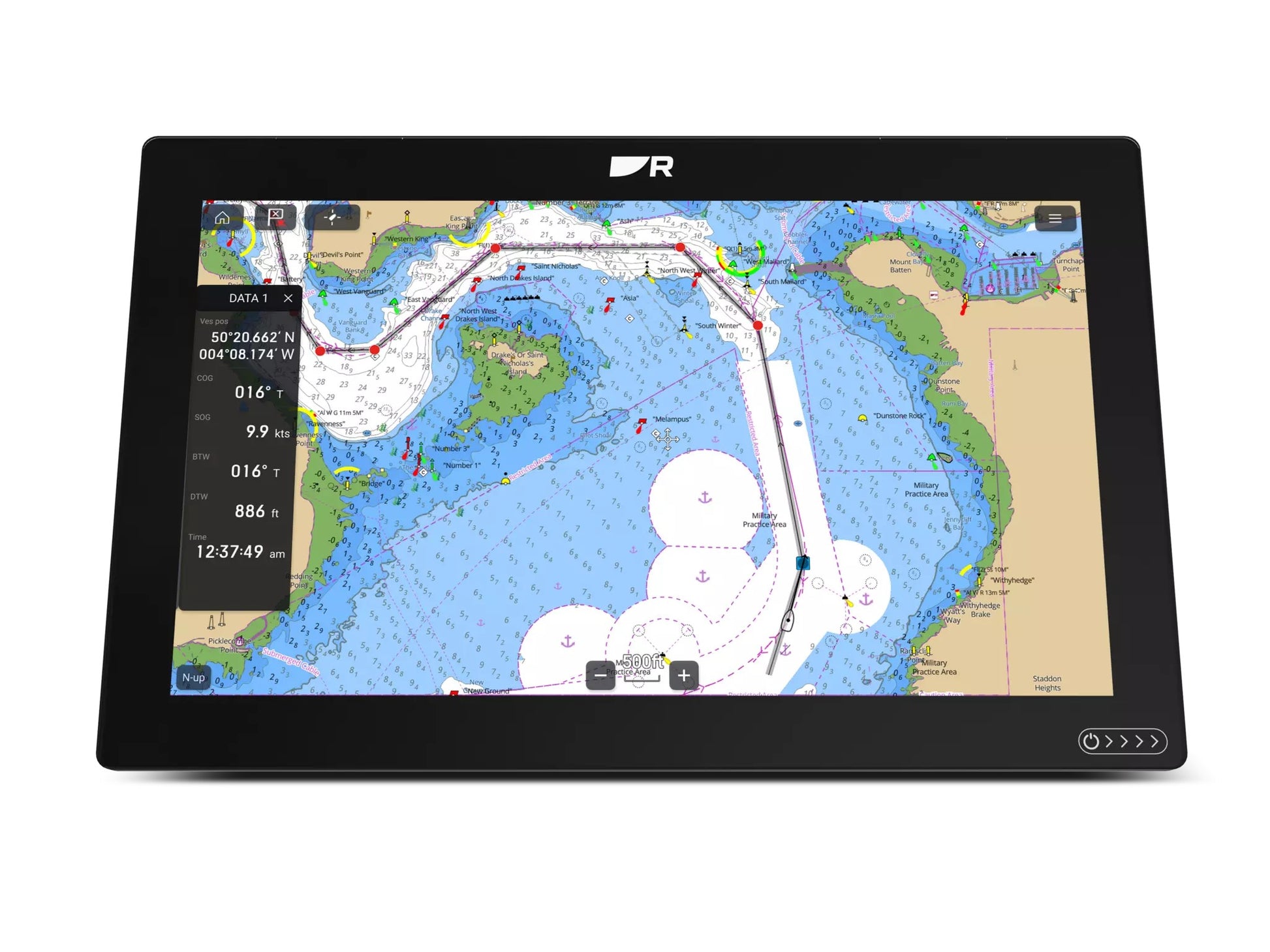

Created from official hydrographic charts, you can trust LightHouse Charts and Axiom 2 XL for maximum readability, intuitive navigation, and superior quality.
Upgrade your Awareness
Add a Quantum 2 radome or Cyclone open array radar and navigate safer with Doppler target tracking and radar/chart overlay.
Turn Night Into Day
FLIR thermal imaging and Axiom 2 XL turn night into day, keeping you safe and secure so you can boat with confidence.
Fish to the Max
Outfit Axiom 2 XL with CHIRP sonar modules. Choose the CP570 for deep water adventures or the RVM1600 with RealVision MAX SideVision, DownVision, and 3D fish finder.
Advanced Sailing Tools
Axiom 2 XL offers a suite of smart sailing features to help you optimize your performance under sail, including layline overlays, preloaded polars, sailing dashboards, and race timers.
Navigate with Confidence
Axiom 2 XL's intuitive LightHouse operating system makes everything easier. Integrate all navigation, engine and sensor data on a single display
Make Smarter Decisions
Add a CAM300 and an AR200 sensor for ClearCruise augmented reality. See AIS, waypoints, and chart objects overlaid on high-definition video.
Advanced Engine Integration
Connect with NMEA2000-compatible engines or experience advanced integration with Mercury SmartCraft and Yamaha Command Link engines.
Stream, Watch, and Listen
Stream Netflix and Spotify, connect and control Fusion, JL Audio, and Rockford Fosgate marine audio systems, or view Axiom 2 XL on the big screen with HDMI output.
Smarter Boating
Stay Connected
Add the YachtSense Link router and keep your system connected onboard and off with the Raymarine mobile App.
Axiom on your Smartphone
Built-in Wi-Fi lets you view and control your Axiom 2 XL on your phone or tablet with the Raymarine Mobile App.
Do More with LightHouse Apps
Expand the capabilities of our Axiom 2 XL with third-party apps from our marine technology partners. Explore LightHouse Apps for Axiom
Genuine Raymarine product supplied through Raymarine's Australian distributor, shipped Australia-wide from Kadina, SA.
📏 Specifications
| Physical | |
|---|---|
| Dimensions | Axiom XL 16: Height: 248.22 mm (9.77 in), Width, 394.9 mm (15.55 in), Depth (including cables): 174.95 mm (6.89 in) Axiom XL 19: Height: 289.44 mm (11.40 in), Width, 461.78 mm (18.18 in), Depth (including cables): 174.95 mm (6.89 in) Axiom XL 22: Height: 326.33 mm (12.85 in), Width, 533.56 mm (21.00 in), Depth (including cables): 180.75 mm (7.12 in) AxiomXL 24: Height: 386.84 mm (15.23 in), Width, 578.40 mm (22.77 in), Depth (including cables): 177.39 mm (6.98 in) |
| Weight | Axiom XL 16: 5.9 kg (13 lbs) Axiom XL 19: 7.6 kg (16.76 lbs) Axiom XL 22: 9.9 kg (21.83 lbs) Axiom XL 24: 11.3 kg (24.9 lbs) |
| USB connection | USB-A: Touch input, USB-B: Touch output |
| Accessory connection | USB Micro B |
| GPS antenna connection | TNC type connector |
| External storage | Remote card reader required |
| NMEA 0183 connection | Port 1: Input and output 4,800 or 38,400 baud rate, Port 2: Input only 4,800 or 38,400 baud rate |
| Ethernet connection | PoE RayNet (10/100/1,000 Mbits/s) x 3 |
| HDMI connections | HDMI in, HDMI out |
| NMEA 2000 connection | DeviceNet connector |
| Analog video connections | Composite BNC connectors x 2 (Alarm/Video 1 connector, Power/Data/Video cable Video 2) |
| Wireless connections | Bluetooth: V4.0, Wi-Fi: Dual band (2.4 GHz and 5 GHz) 802.11/b/g/n |
| External alarm connection | Bare-ended wires x 2 |
| Internal storage | 64 GB Solid State |
| Power | |
| Power consumption @ 12 V dc | Axiom XL 16: 77.88 W Axiom XL 19: 87.48 W Axiom XL 22: 97.32 W Axiom XL 24: 93.6 W |
| Power consumption @ 24 V dc | Axiom XL 16: 70.80 W Axiom XL 19: 76.08 W Axiom XL 22: 81.84 W Axiom XL 24: 80.88 W |
| Off current @ 12 V dc | PoE: 2,250 mA (27 W), No PoE: 360 mA (4.32 W) |
| Off current @ 24 V dc | PoE: 1,150 mA (27.6 W), No PoE: 240 mA (5.76 W) |
| PoE operating voltage range | 9.5 V dc to 32 V dc |
| Current | 9.5 A |
| Operating voltage range | 8 V dc to 32 V dc |
| Fuse rating | 15 A |
| Nominal supply voltage | 12 V dc / 24 V dc |
| LEN (NMEA 2000 Load Equivalency Number) | 1 |
| LCD | |
| Size (diagonal) | Axiom XL 16: 15.6" Axiom XL 19: 18.5" Axiom XL 22: 21.5" Axiom XL 24: 24" |
| Resolution | Axiom XL 16: 1920 x 1080 pixels Axiom XL 19: 1920 x 1080 pixels Axiom XL 22: 1920 x 1080 pixels Axiom XL 24: 1920 x 1200 WUXGA |
| Illumination | Axiom XL 16: 1300 nits / 1300 cd/m2 Axiom XL 19: 1200 nits / 1200 cd/m2 Axiom XL 22: 1500 nits / 1500 cd/m2 Axiom XL 24: 1300 nits / 1300 cd/m2 |
| Viewing angle | Axiom XL 16: Top 88° / Bottom 88° / Left 88° / Right 88° Axiom XL 19: Top 88° / Bottom 88° / Left 88° / Right 88° Axiom XL 22: Top 89° / Bottom 89° / Left 89° / Right 89° Axiom XL 24: Top 89° / Bottom 89° / Left 89° / Right 89° |
| Ratio | Axiom XL 16: 16:9 Axiom XL 19: 16:9 Axiom XL 22: 16:9 Axiom XL 24: 16:10 |
| Type | IPS (In-Plane Switching) |
| Color depth | 24-bit |
| Number of simultaneous touches | 2 |
| Environmental | |
| Operating temperature | -25°C to +55°C (-13°F to 131°F) |
| Storage temperature | -30°C to +70°C (-22°F to 158°F) |
| Relative humidity | up to 93% @ 40°C (104°F) |
| Waterproof rating | IPx6, IPx7 |
