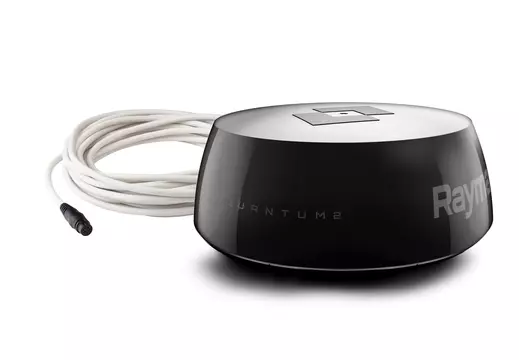

T70549 Raymarine Black Quantum Q24D Doppler 18" Radar with 10m Power Cable and 10m Data Cable - Part Number: T70549
Quantum 2 18" solid-state radar dome with CHIRP Pulse Compression and Doppler collision avoidance technology.
Model: Quantum 2 Q24D Doppler 18" Radar with 10m Power Cable and 10m Data Cable
Doppler Collision Avoidance Technology
Ensure a safe and stress-free boating experience, even in busy waters, by keeping unforeseen hazards and novice boaters at a distance.
Quantum 2, equipped with Doppler collision avoidance technology, simplifies the identification of potential risks amidst bustling marine traffic. Leveraging sophisticated Doppler processing, Quantum 2 clearly highlights moving radar contacts, applying colour coding to clearly show if they are approaching or moving away, enhancing your navigational confidence and safety.
QUANTUM 2 BLACK - STAY AWARE WITH STYLE
Offering confident radar navigation and style, Quantum 2 Black adds a level of sophistication to any vessel.
Quantum 2 Black offers the same performance and safety-enhancing Doppler target tracking as the original white Quantum 2 in a premium black housing.
Key Features
The Quantum 2 Doppler radar is an ideal addition for sailboats, RIBs, and smaller powerboats. Quantum 2 excels in short-range detection and offers enhanced detail of targets, with a minimum range of 18 feet (6m). Installation is streamlined and quick, and Quantum can be mounted using existing Raymarine mounting points. Once in place, Quantum 2 powers up instantly, providing immediate situational awareness. Its MARPA target tracking mode is an efficient tool for tracking hazardous targets, employing the same technology relied upon by the United States Coast Guard.
Quantum Cables and Accessories
Scanstrut Quantum Radome Mast Mount
Scanstrut SC20 Quantum radome mast mount in white.
Quantum Radar Power Cable
10m and 15m Quantum radar power cables with bare wires.
Scanstrut Self Levelling Mast Mount for 18"/24" Radome Scanner
Self levelling mast mount for 18" / 24" radome scanner.
Quantum Data Cable with RayNet Connector
5m, 10m, 15m and 25m Quantum radar data cables with RayNet connectors.
Quantum/Cyclone Data Cable
5m, 10m, 15m and 25m Quantum/Cyclone radar data cables.
Quantum Power and Data Adapter
Y-cable for adapting Quantum radars to existing digital radome cabling.
Genuine Raymarine product supplied through Raymarine's Australian distributor, shipped Australia-wide from Kadina, SA.
📏 Specifications
| General Specifications | |
|---|---|
| Dimensions: Diameter | Height | 541.0 mm | 209.5 mm |
| Weight | 5.6 kg |
| Supply voltage | Either 12 V dc or 24 V dc nominal Minimum: 10.8 V dc | Maximum: 31.2 V dc |
| Operating voltage range | Minimum: 10.8 V dc | Maximum: 31.2 V dc |
| Power Consumption | Transmit mode (maximum): 17 W | Standby mode: 7 W | Sleep mode (applies only to radars connected via Wi-Fi): 2 W |
| Waterproofing | IPX6 |
| Operating temperature range | -10°C to +55°C |
| Storage temperature range | -25°C to +70°C |
| Additional storage conditions | Store upright; do not block vents on underside |
| Humidity | Up to 95% at 35°C |
| Maximum wind speed | 100 kts |
| Transmitter | |
| Type | X-band solid-state transmitter with pulse compression technology |
| Transmit frequency | 9354 MHz to 9446 MHz |
| Peak power output | 20W |
| Duplexer | Circulator |
| Pulse widths (3 dB) | 40 ns to 14.7 us |
| Chirp lengths | 400 ns to 22 us |
| Pulse repetition frequency | 920 Hz to 5900 Hz |
| Chirp bandwidth | Up to 32 MHz |
| Standby mode | Scanner rotation - OFF | Scanner transmission - OFF | Wi-Fi link - ON |
| Antenna | |
| Type | Patch array |
| Beamwidth (nominal) | Horizontal: 4.9° | Vertical: 20° |
| Polarisation | Horizontal |
| Rotation speed | 24 rpm nominal |
| Receiver | |
| IF frequency | 26 MHz |
| Noise figure | Less than 4 dB |
| Doppler | |
| Target Tracking | Tracking of 25 simultaneous MARPA and / or ARPA targets |
| Target Filtering | True Motion mode identifies only those objects that are moving relative to the vessel |
| Radar | |
| Transmitter type | X-band solid-state transmitter with pulse compression technology |
| Target tracking | Track up to 25 simultaneous Radar targets |
| Standby mode | Rotation: OFF, Transmission: OFF, Wi-Fi: ON |
| Antenna type | Patch Array |
| Noise | Less than 4 dB |
| Beamwidth (nominal) | Horizontal: 4.9°, Vertical: 20° |
| Polarisation | Horizontal |
| Duplexer | Circulator |
| Transmit frequency | 9354 MHz to 9446 MHz |
| Pulse repetition frequency | 920 Hz to 5900 Hz |
| CHIRP lengths | 400 ns to 22 µs |
| Pulse widths (3 dB) | 40 ns to 14.7µs |
📦 What's in the box
- Radome
- Power cable 10 m (32.8 ft)
- Fixing bolts with spring washers and flat washers (M8) x 4
- Documentation
✅ Condition
- Brand new genuine product
- Supplied in original packaging
- Full Australian manufacturer warranty
