361-87322-0 Aftermarket Tohatsu Water Pump Repair Kit with Housing M25C3, M30A4, M40C, M30H Models | Sawley's Select Marine Parts

🔧 Product Description

Aftermarket Tohatsu / Nissan 25-40 HP Water Pump Repair Kit with Upper Housing - Part Number: 361-87322-0

Expanded water-pump overhaul kit for compatible Tohatsu and Nissan 25-40 HP two-stroke outboards. It combines the complete component set used in the 361-87322-0 / 361873220M repair kit with the upper water-pump housing, allowing the pump chamber, liner, wear plate, impeller, drive key, gaskets and mounting hardware to be renewed together.

⚙️ Key Features

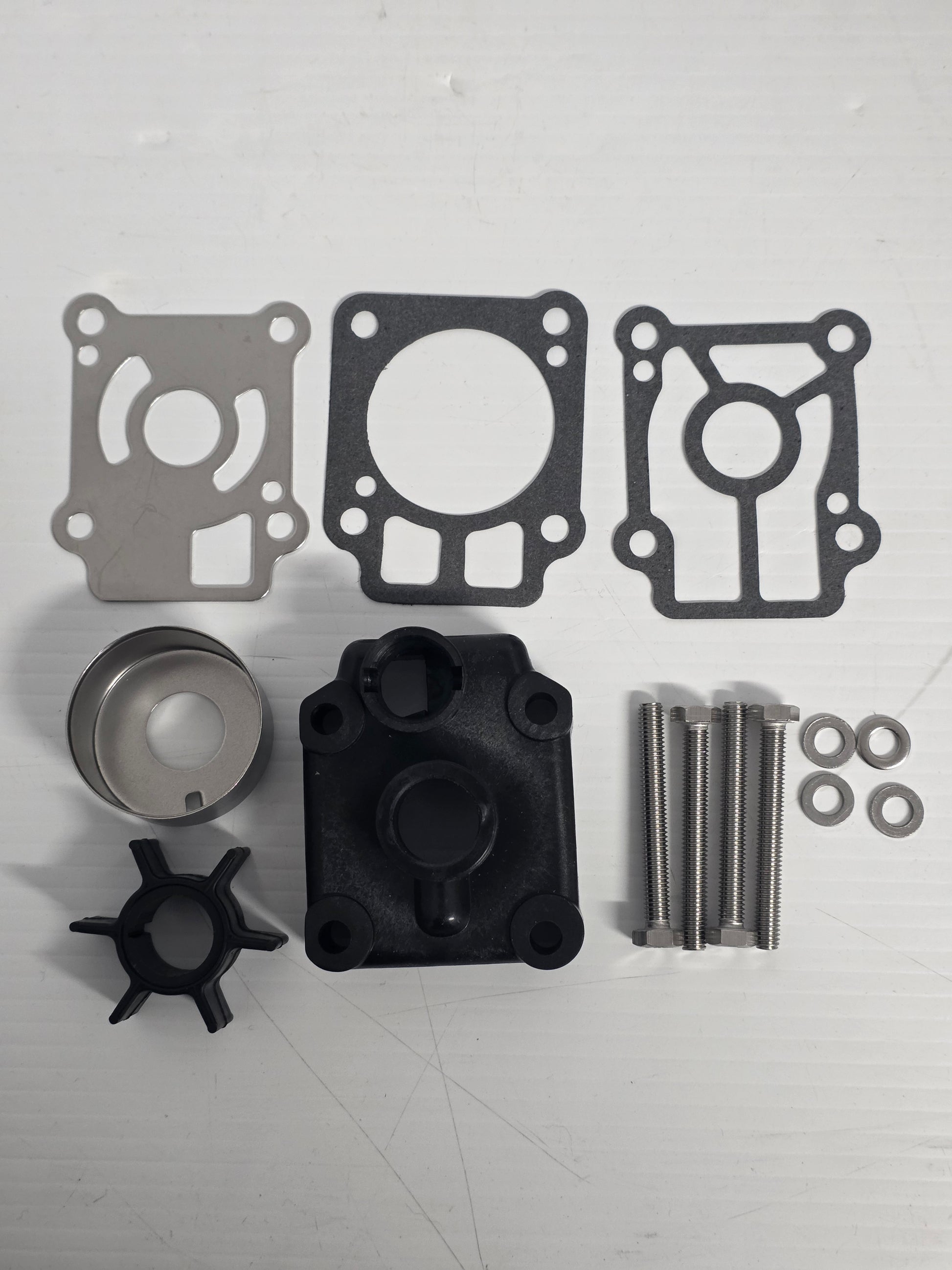

Kit contents:

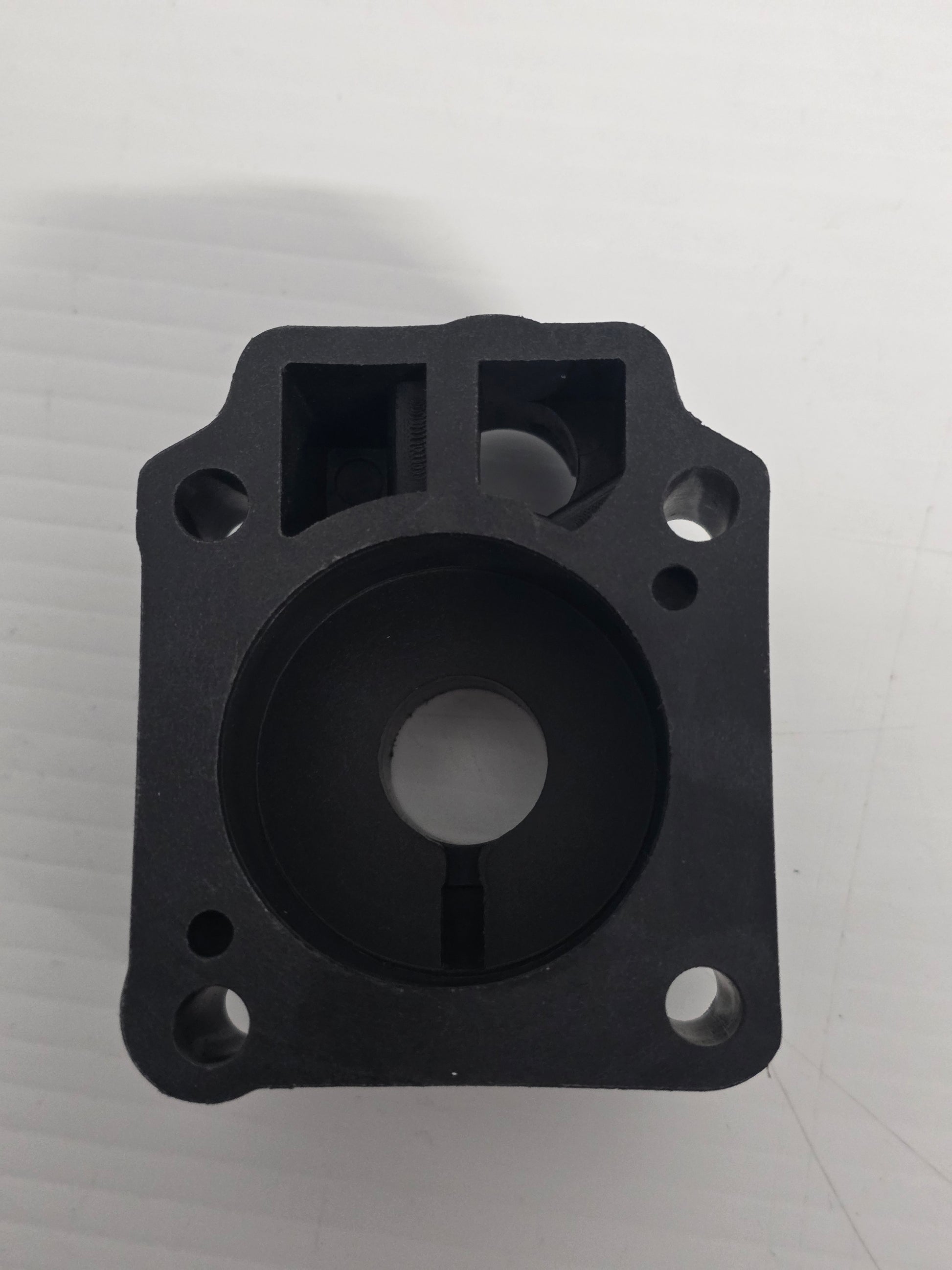

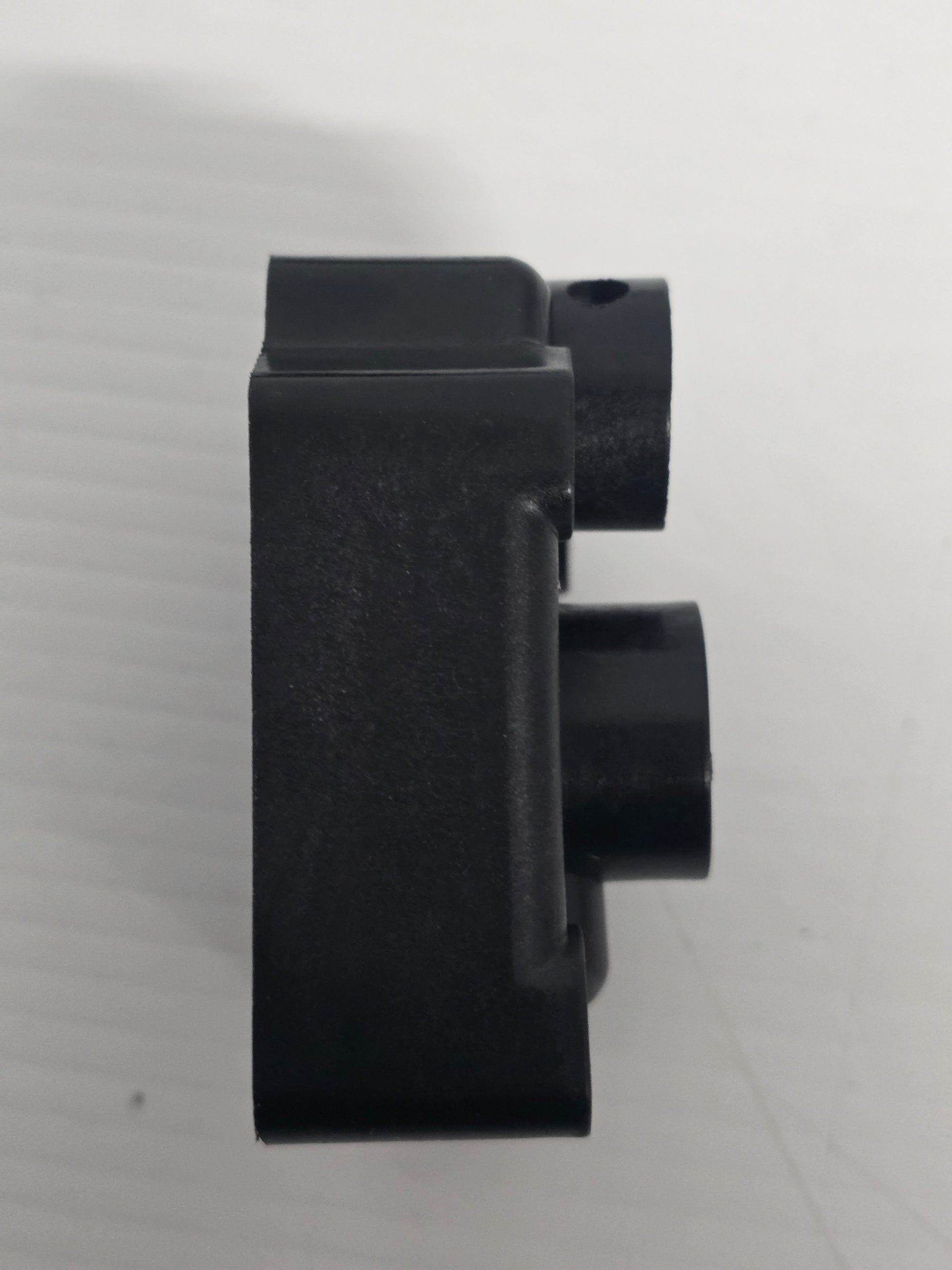

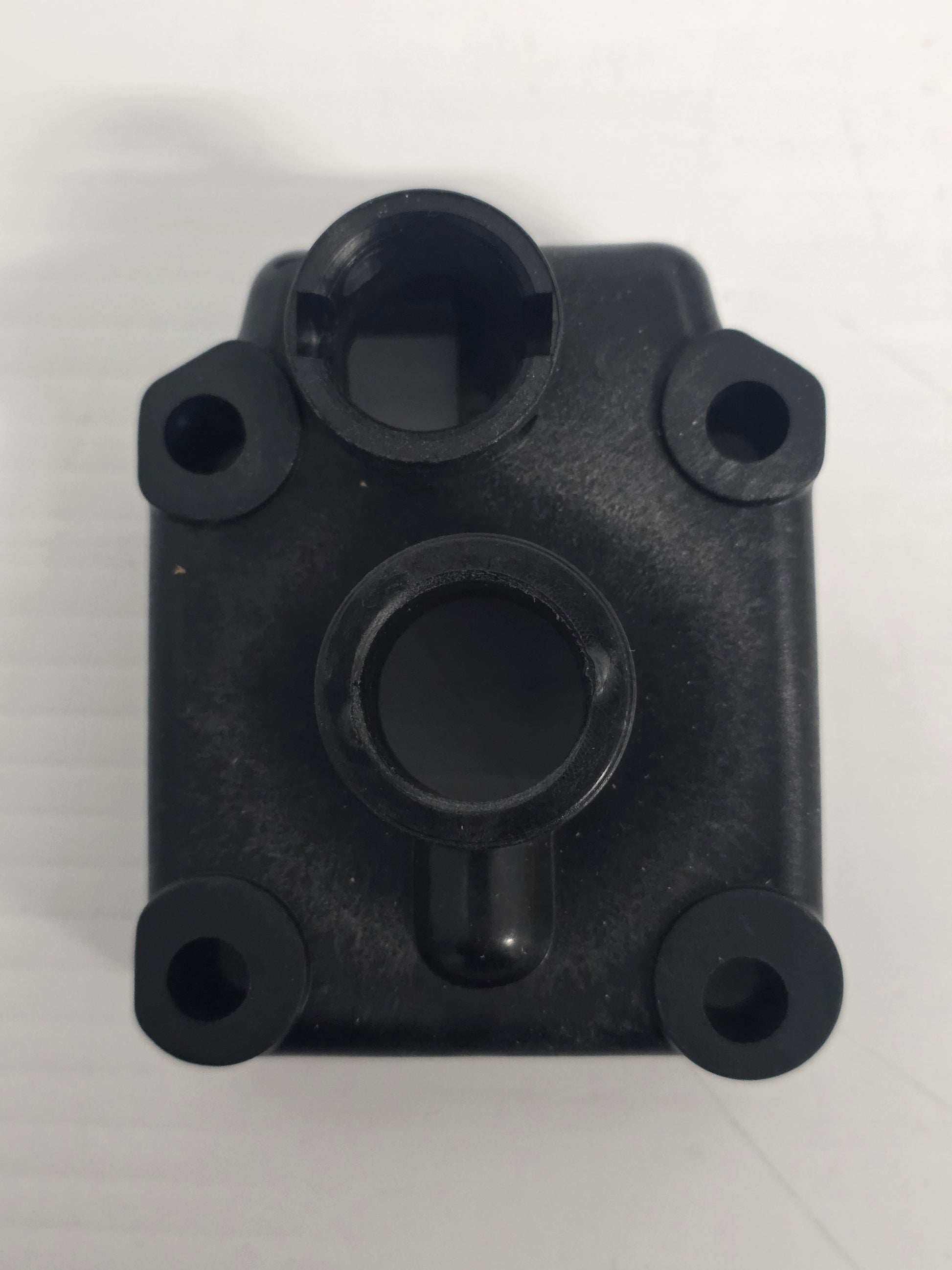

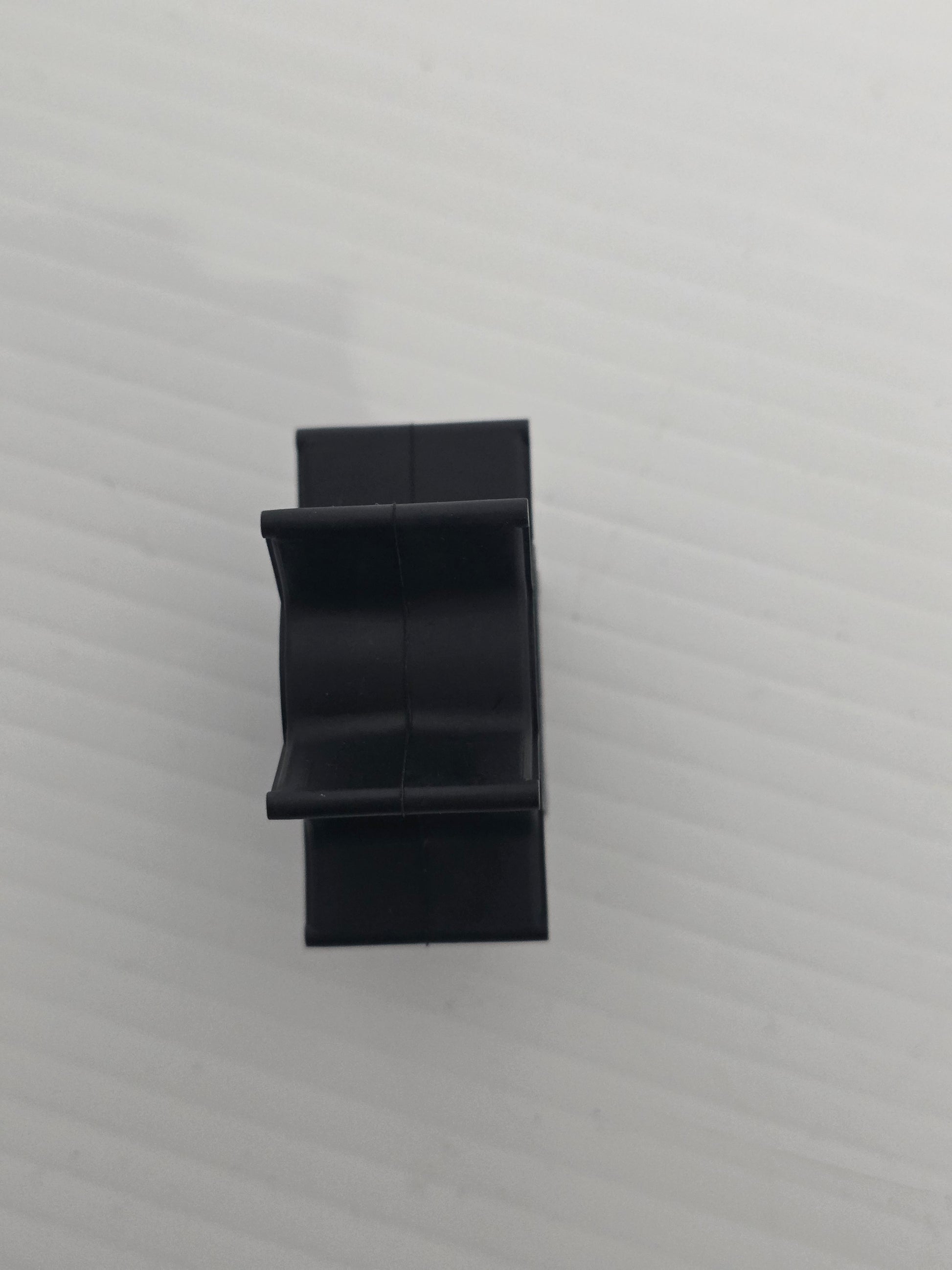

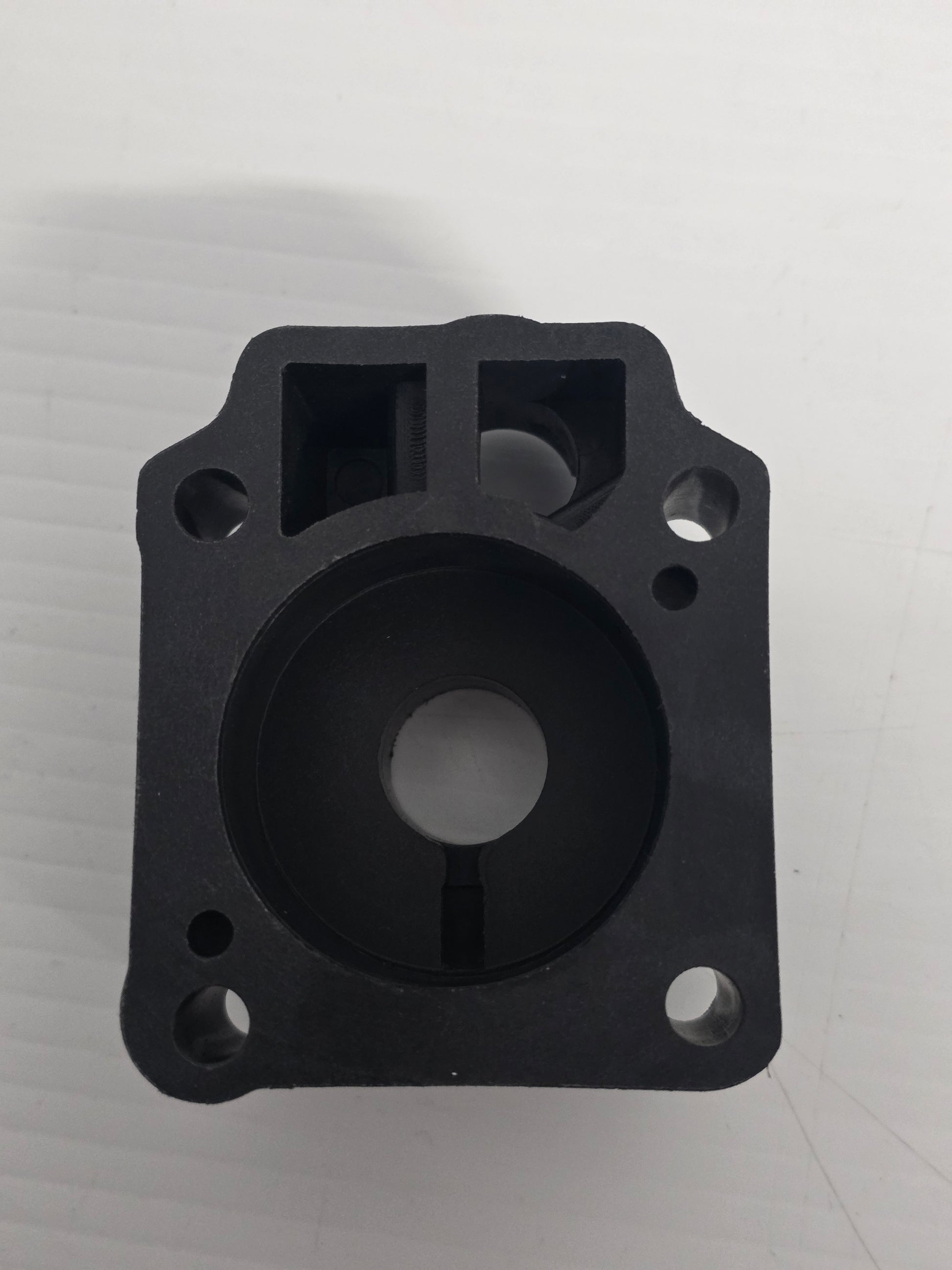

• 1 × Upper water-pump housing / pump case - Part Number: 348-65016-1

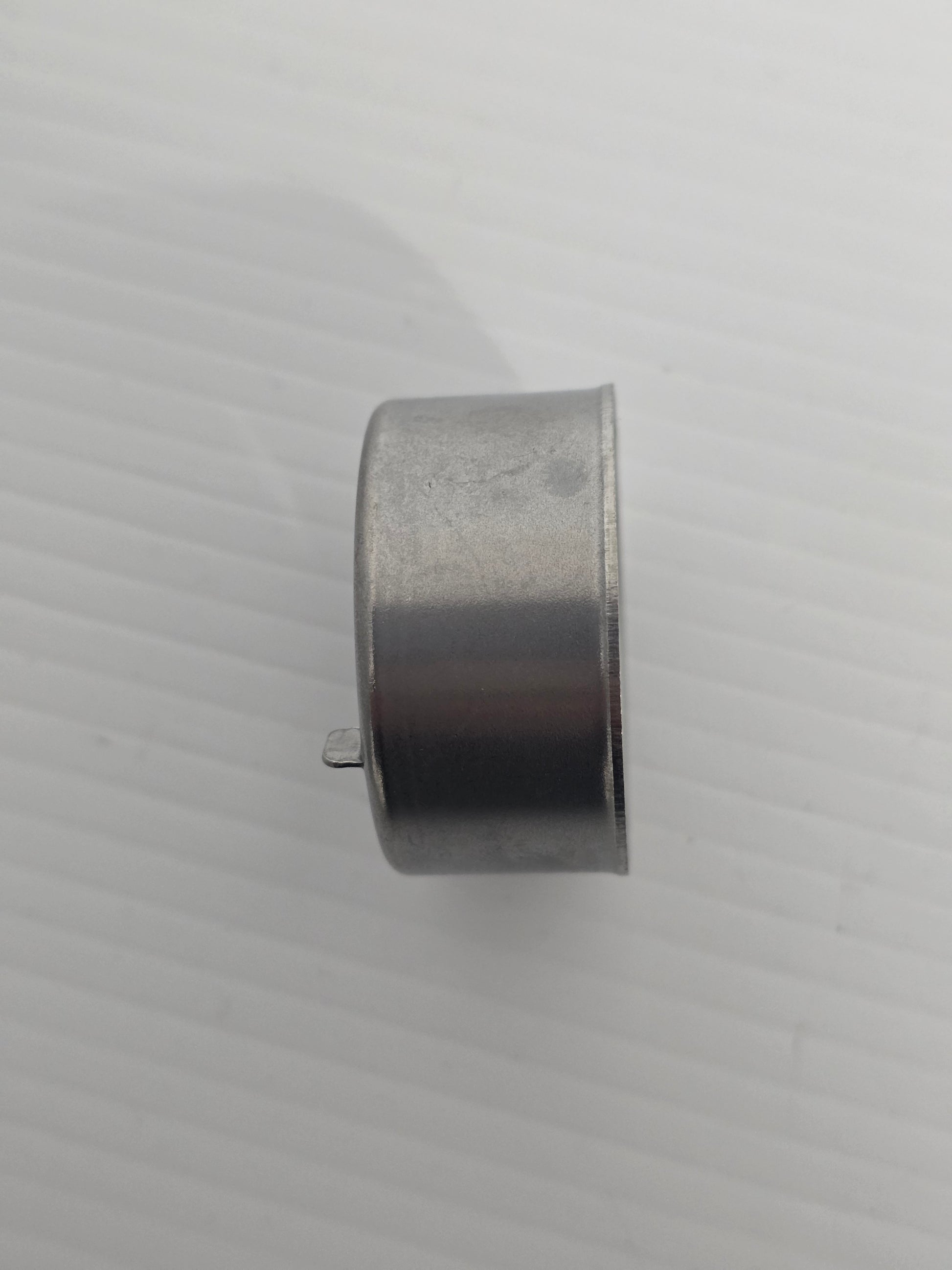

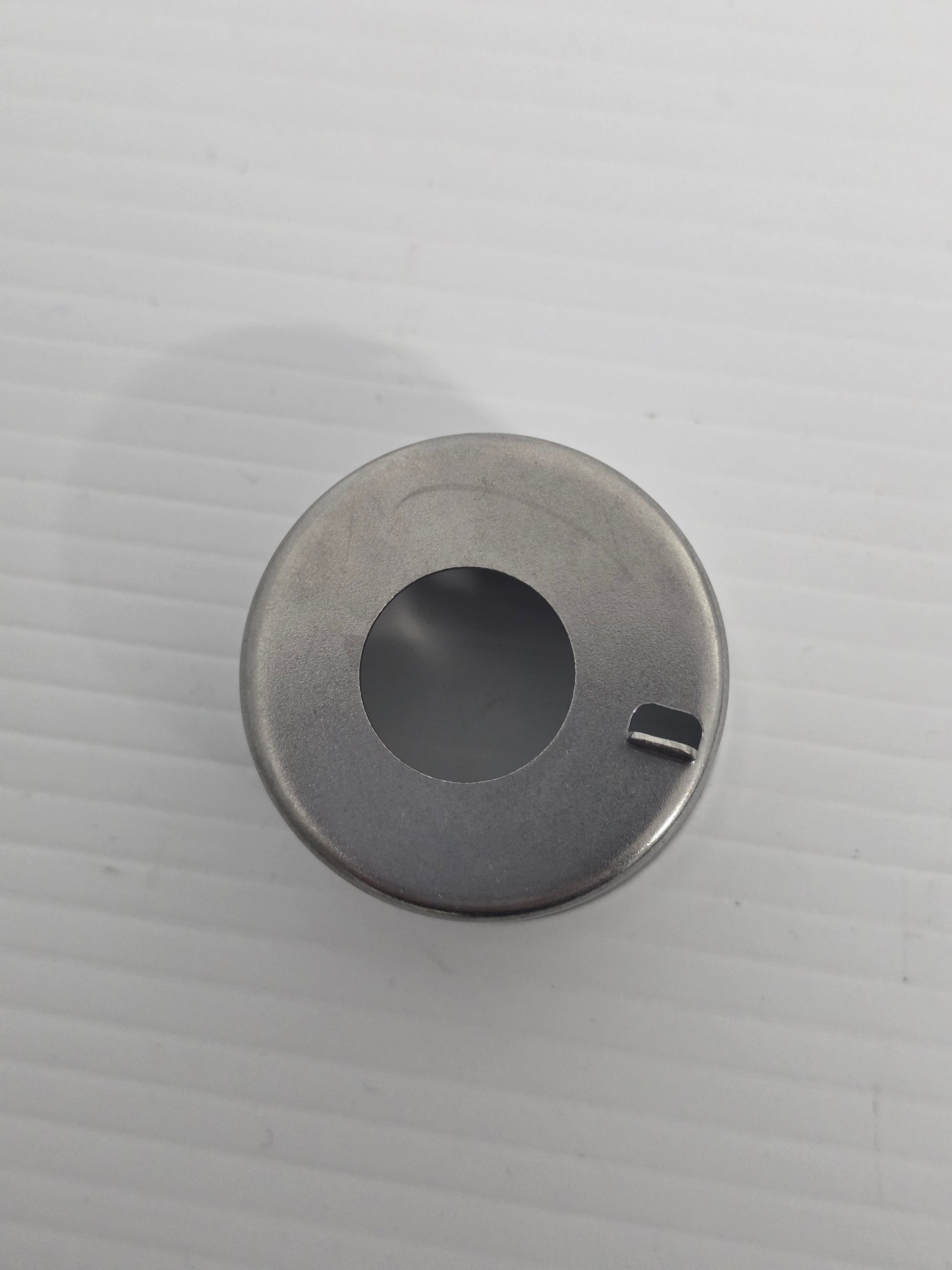

• 1 × Stainless pump-case liner / cup - Part Number: 348-65011-0

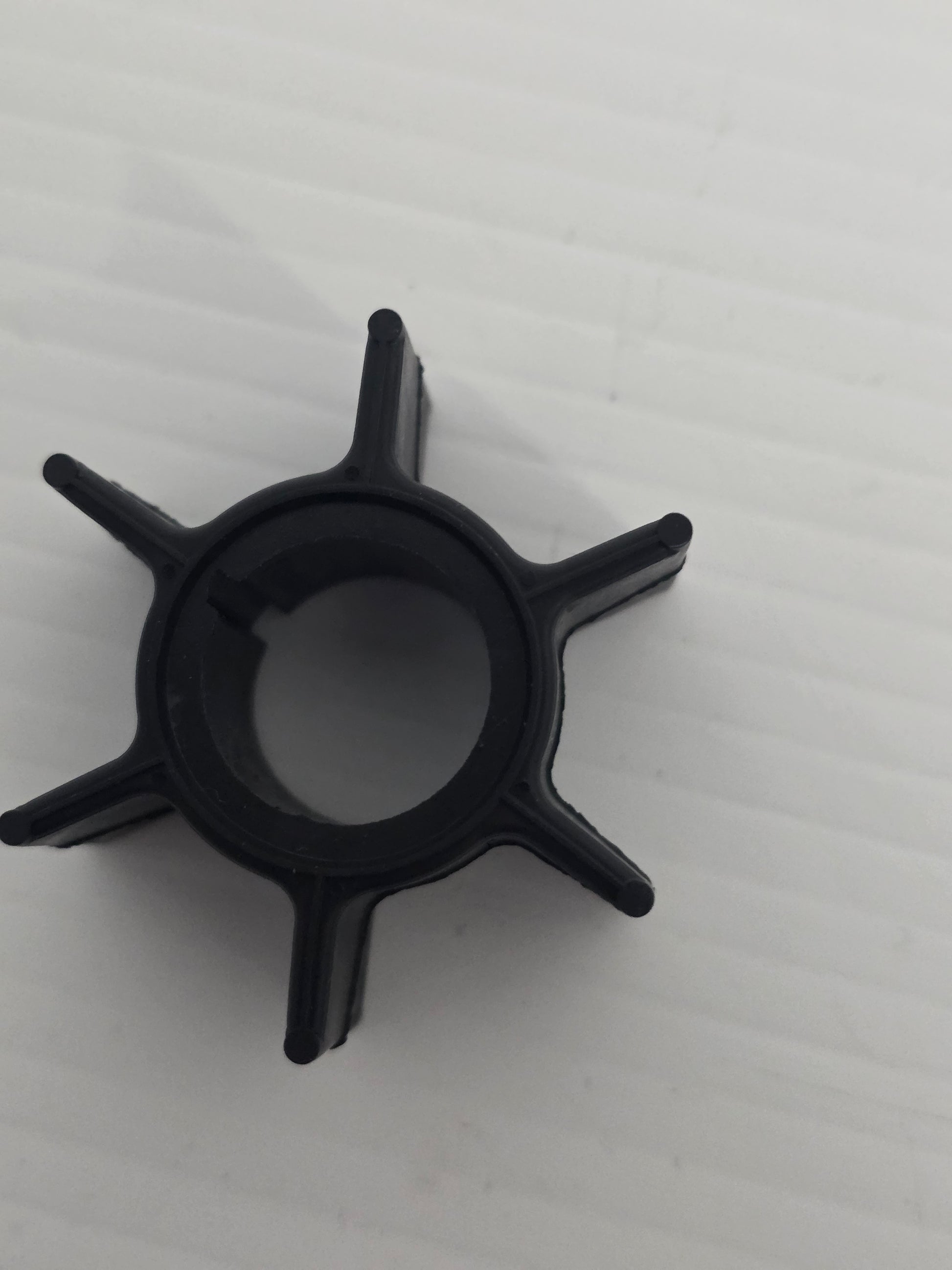

• 1 × Water-pump impeller - Part Number: 345-65021-0

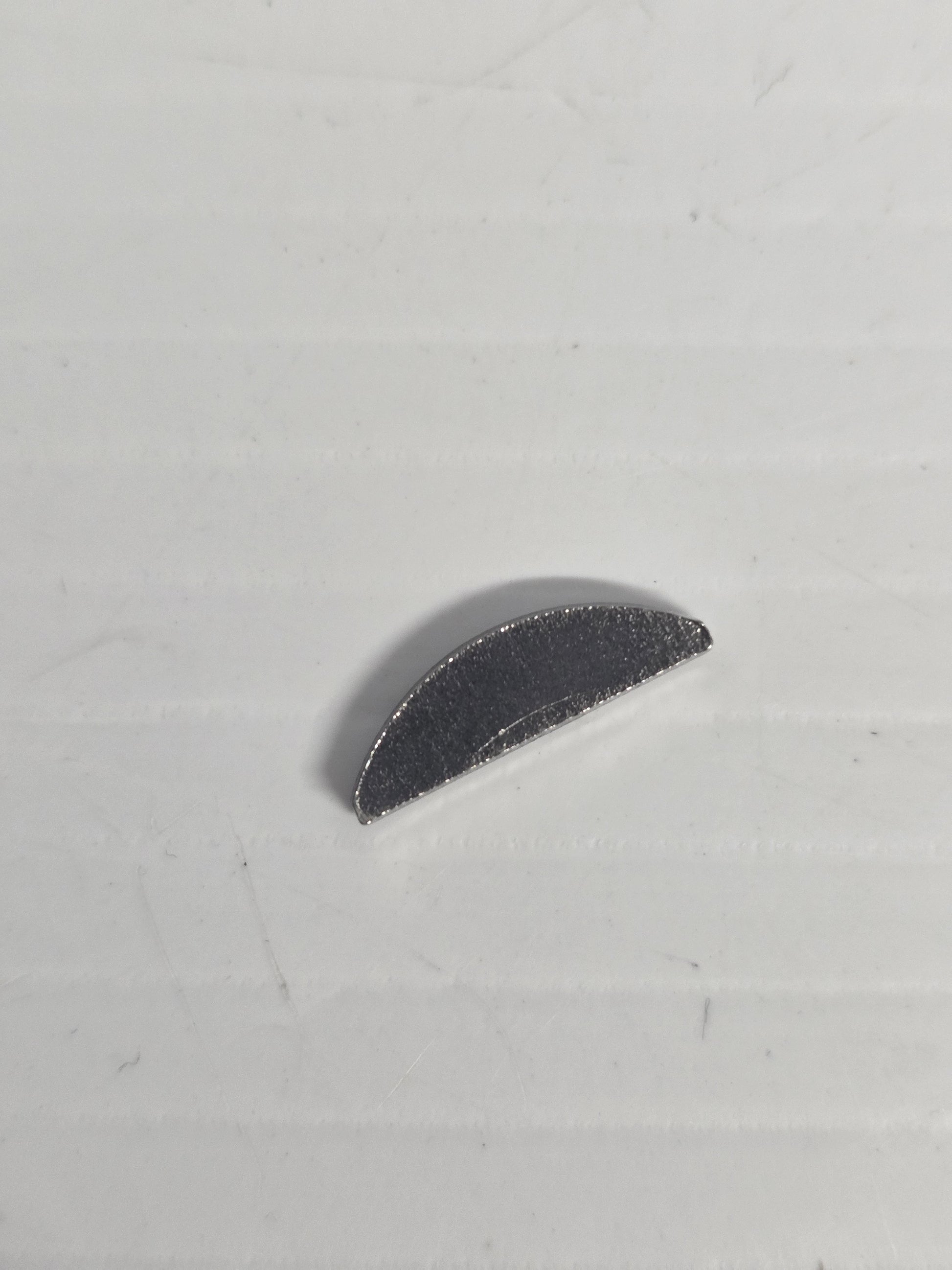

• 1 × Impeller drive key - Part Number: 332-65022-0

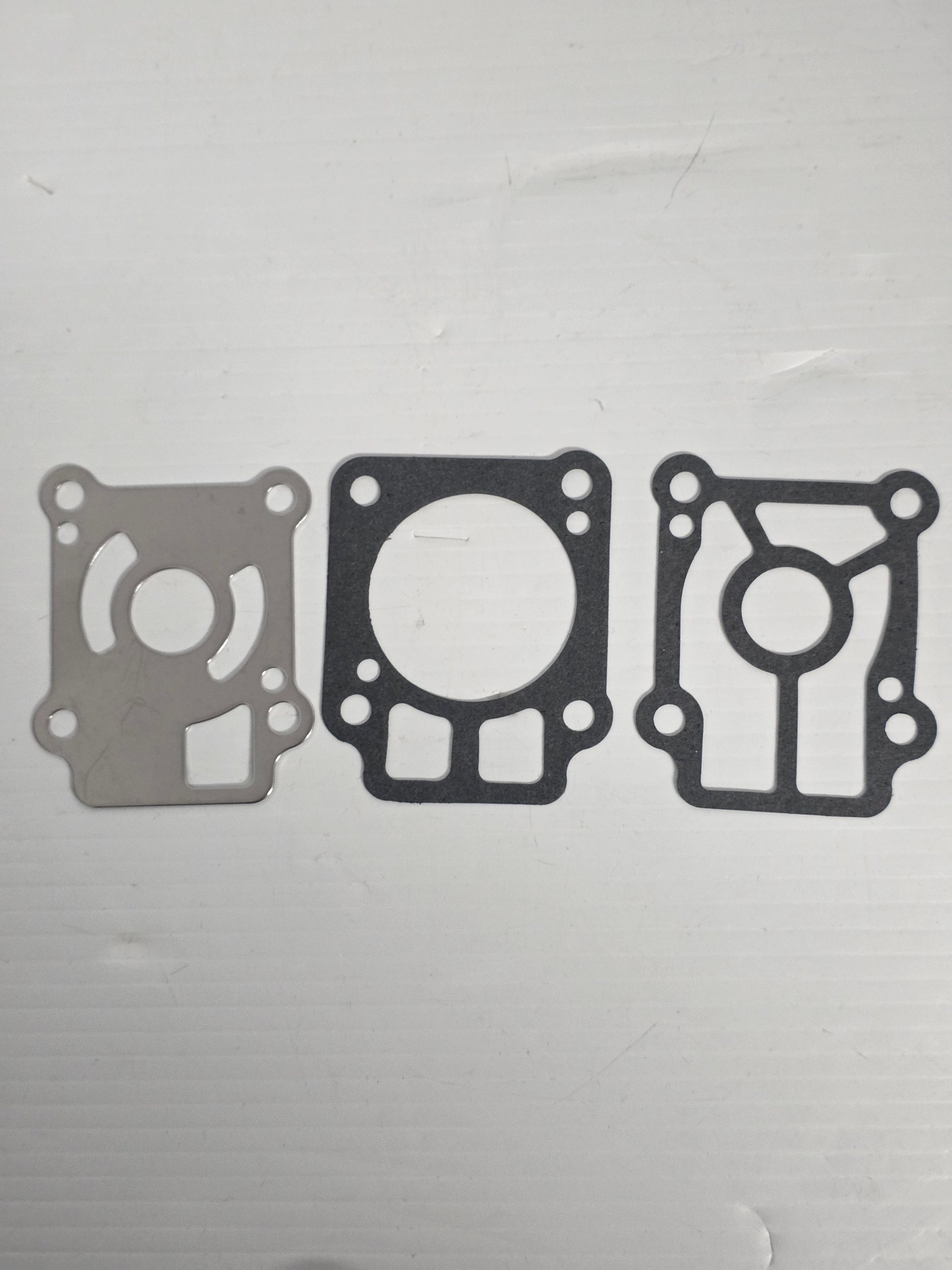

• 1 × Stainless water-pump guide plate / wear plate - Part Number: 348-65025-0

• 1 × Guide-plate gasket - Part Number: 348-65029-1

• 1 × Pump-case gasket - Part Number: 348-65018-0

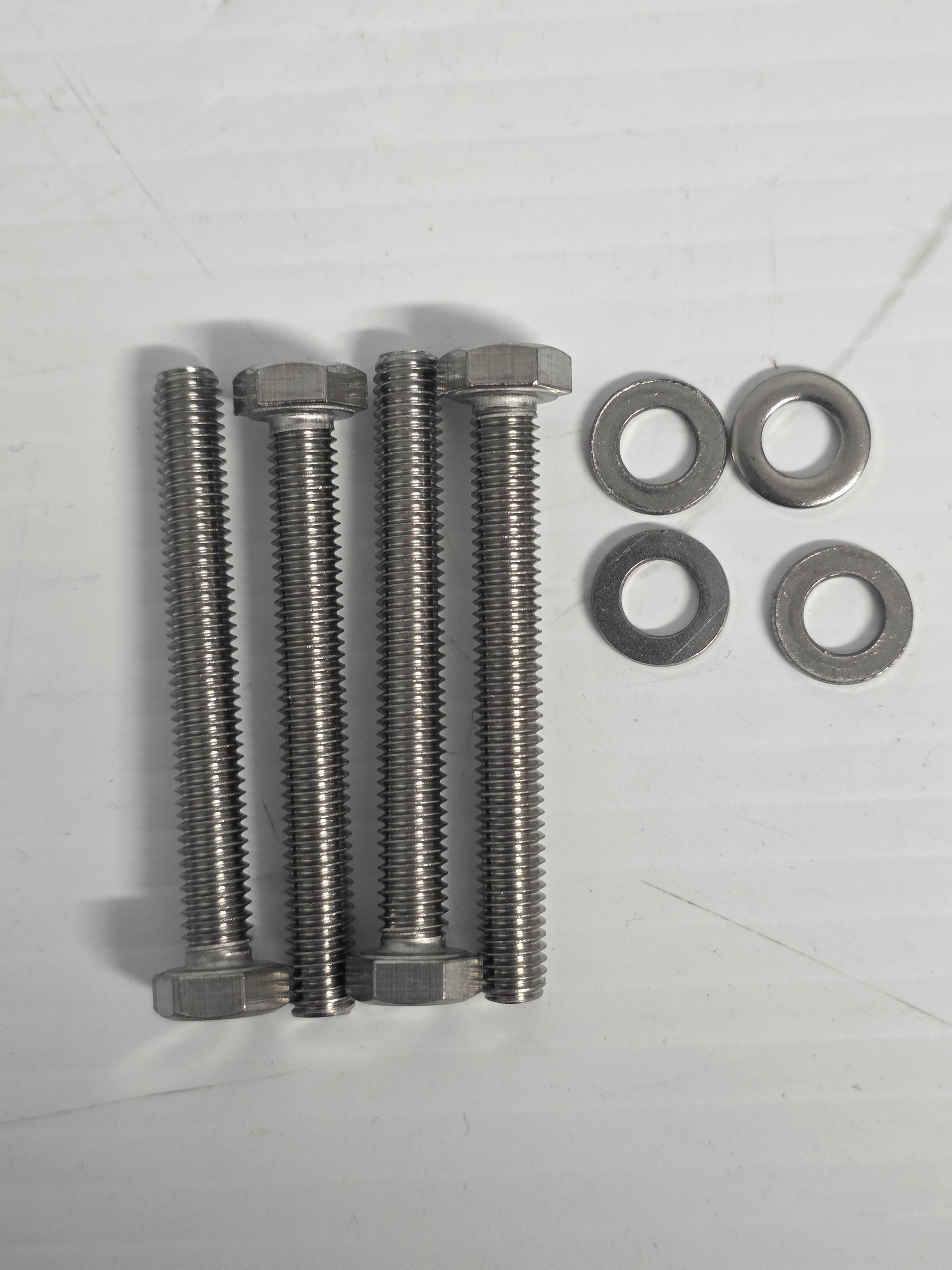

• 4 × Water-pump bolts with washers - Part Number: 9101E3-5652

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• 361873220M → Current Tohatsu/Nissan packaged-part format for 361-87322-0

• 361-87322-0 → Original water-pump repair-kit reference

• 348-65016-1 → Supersedes upper pump case 348-65016-0

• 348-65016-0 → Supersedes earlier upper pump case 345-65016-0

OEM / Related Numbers:

• 361873220M

• 361-87322-0

• 361873220

• Mercury / Mariner 853792A1

• Mercury / Mariner 853792T01

• Mercury / Mariner 853792A07

• 348-65016-1

• 348-65011-0

• 345-65021-0

• 332-65022-0

• 348-65025-0

• 348-65029-1

• 348-65018-0

• 9101E3-5652

Aftermarket / Verified Equivalents:

• Cobra Marine: 361-87322-0 complete replacement-kit family

• HJ Marine: THJB-361WH housing-inclusive water-pump kit

🚤 Compatibility

Commonly used on:

• Tohatsu and Nissan two-cylinder two-stroke outboard water pumps

• Mercury and Mariner Tohatsu-built 25/30 HP two-stroke models where 853792A1 or 853792T01 is specified

Typically suits:

• Tohatsu engine models:

• M25C2 and M25C3

• M25H and MX25H

• M30A3 and M30A4

• M30H and MX30H

• M35C

• M40C

• Nissan engine models:

• NS25C2 and NS25C3

• NS30A3 and NS30A4

• NS35C

• NS40C and NS40C2

• Mercury / Mariner models:

• Tohatsu-built 25 HP and 30 HP two-stroke SeaPro and Lightning families using 853792A1 / 853792T01

• HP Range: 25-40 HP

• Engine Type: Two-cylinder, carburetted two-stroke outboard; displacement varies by model

• Year Range: Approximately mid-1990s-2019, depending on engine model and market

• Serial / Identification Range: Tohatsu and Nissan fitment is controlled by the complete model code. Applicable Mercury/Mariner models commonly use serial numbers beginning 0N0; confirm the engine serial and original pump-kit number before ordering

🔌 Function

The water pump draws cooling water through the gearcase intake and circulates it through the engine cooling passages. Renewing the housing, liner, wear plate, impeller and seals restores the pump chamber clearances needed for reliable cooling-water pressure.

Common signs replacement is required:

• Weak, intermittent or absent tell-tale stream

• Engine overheat alarm or rising cylinder-head temperature

• Steam, reduced cooling-water discharge or salt blockage symptoms

• Missing, cracked, hardened or permanently bent impeller vanes

• Scored, corroded or distorted pump housing, liner or wear plate

📦 Condition

• Brand-new aftermarket replacement kit

• Supplied as new replacement components

• Supplied in suitable retail or equivalent packaging
