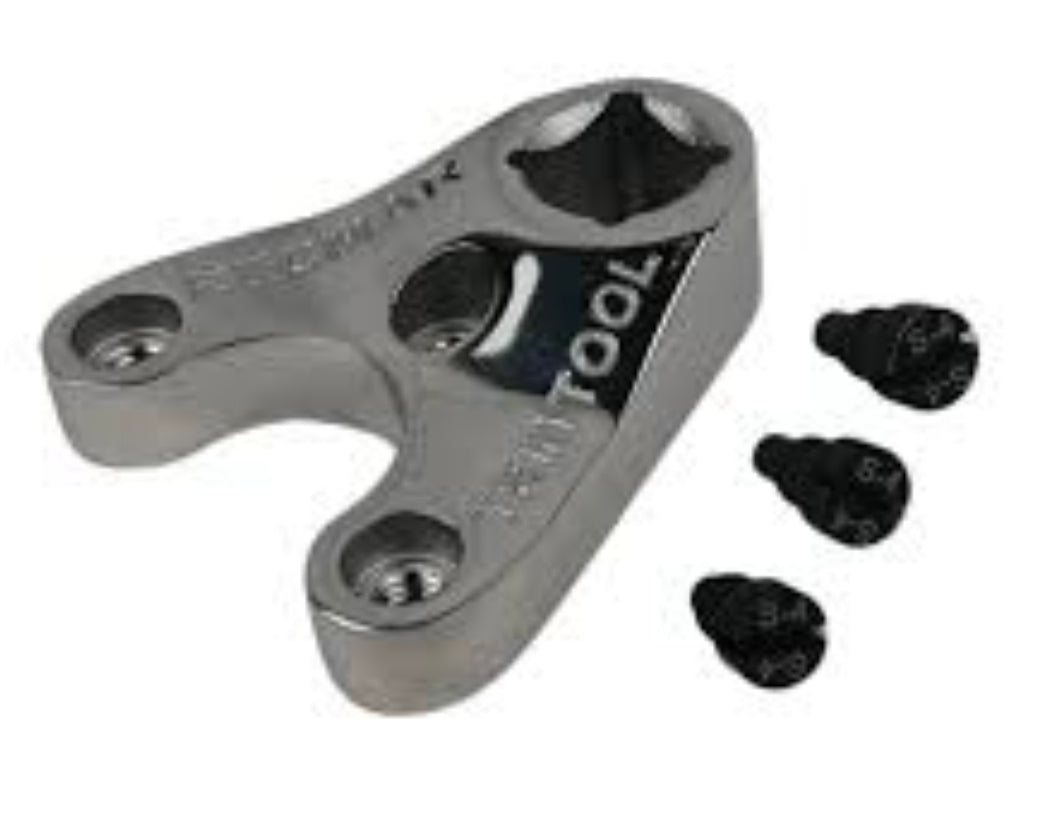

TOOLTRIM3 Aftermarket Marine Trim Piston Tool 35mm | Sawley's Select Marine Parts

🔧 Product Description

Six-pin trim/tilt ram end-cap spanner with a nominal 35mm working diameter. Recmar TOOLTRIM3 is used on selected Yamaha, Suzuki, Evinrude, Johnson and Honda trim systems and accepts a 1/2-inch drive with the matching six-pin insert set.

The six-point engagement distributes torque around the gland cap and reduces damage during corrosion-affected service.

⚙️ Key Features

• Nominal 35mm six-pin pattern

• 1/2-inch square-drive operation

• Purpose-made for multi-brand trim-cylinder end caps

• Part of the Recmar three-tool trim service system

📋 Kit Contents

• 1 × 35mm six-pin tool body - TOOLTRIM3 / RECTOOLTRIM3

• RECPIN6 pin set not included unless specifically stated

• Drive handle not included

🔄 Supersession & Cross Reference

• Recmar references: TOOLTRIM3 / RECTOOLTRIM3

• Required related pin set: RECPIN6

• Included as the 35mm tool in TOOLTRIMKIT

• No verified single OEM cross-reference covers every application

🚤 Compatibility

• Selected Yamaha F115, F150, F175, F200 2.8L, F350 and VMAX models

• Suzuki DF115-DF300 where a 35mm six-pin cap is fitted

• Evinrude 115-300HP E-TEC and selected Johnson/Evinrude 25-250HP two-strokes

• Honda 75-225HP models from approximately 1997 onward where cap pattern matches

• Measure cap diameter, six-pin circle and hole size before use

🔌 Function

Removes and installs the trim-cylinder gland/end cap during hydraulic piston, rod and seal repair. Correct pin engagement and secure clamping reduce the risk of cap distortion or trim-unit damage.

📦 Condition

• Brand-new aftermarket Recmar specialist tool

• One 35mm tool body supplied

• RECPIN6 and 1/2-inch drive equipment may be required separately
