TRC9015 SuperPro Front Differential Drop Kit to Suit Isuzu D-Max, MU-X and Mazda BT-50 | Genuine SuperPro Suspension Component

Benefit Note: The kit is supplied complete with all required spacers, bolts, washers and nuts.

When lifting a vehicle, the Constant Velocity (CV) joints are put on an increased angle, helping to accelerate the wear on the joint and putting additional stress on the CV boots. The added down travel from adding extended shocks can also cause the joint to exceed the maximum operating angle, which causes the CV joints to bind up and cease to operate. The SuperPro bolt-on kit corrects the geometry of the front axles and CV's by lowering the front diff approximately 25mm. Reducing the angles on the CV joints can help get them back into the normal operating range, helping to avoid the expensive replacement costs of CV's.

Kit Specifications

Bush Type
Bush Quantity
OD (A)
ID (B)
Length (C)
Flange Thickness (D)
Flange OD (E)
C/Tube Quantity
C/Tube ODxIDxL
Similar Bushing Size

Packaged Weight and Dimensions

Units	cm/kg	in/lbs
Weight	1.064kg	2.35lbs
Length	10cm	3.94"
Width	26cm	10.24"
Height	16cm	6.3"

Misc. Product Information

More Information

SKU	TRC9015

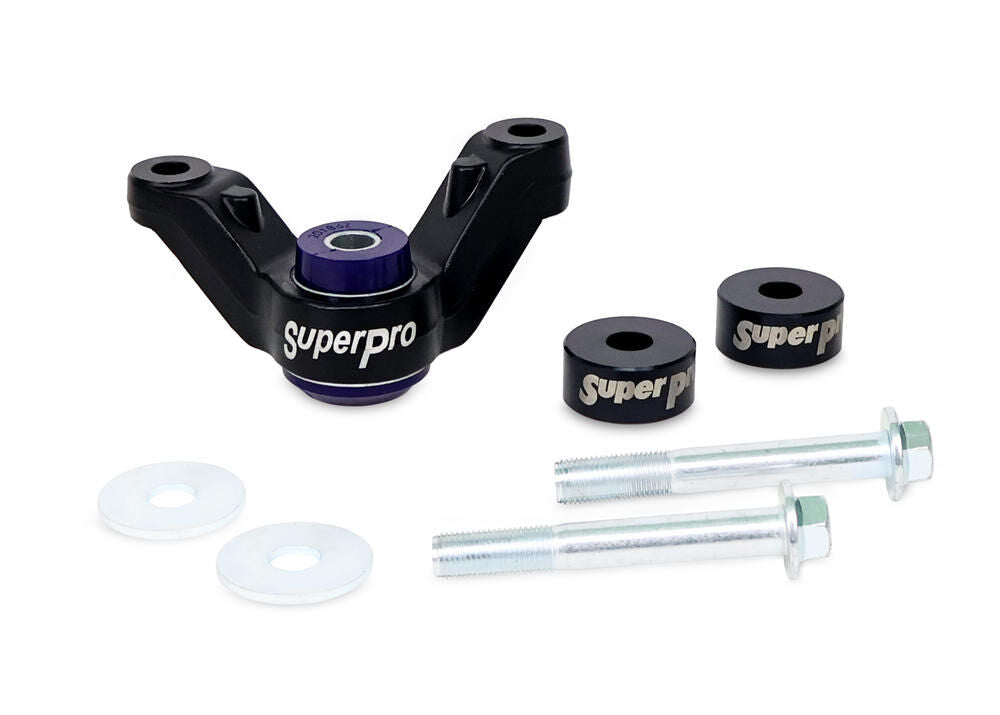

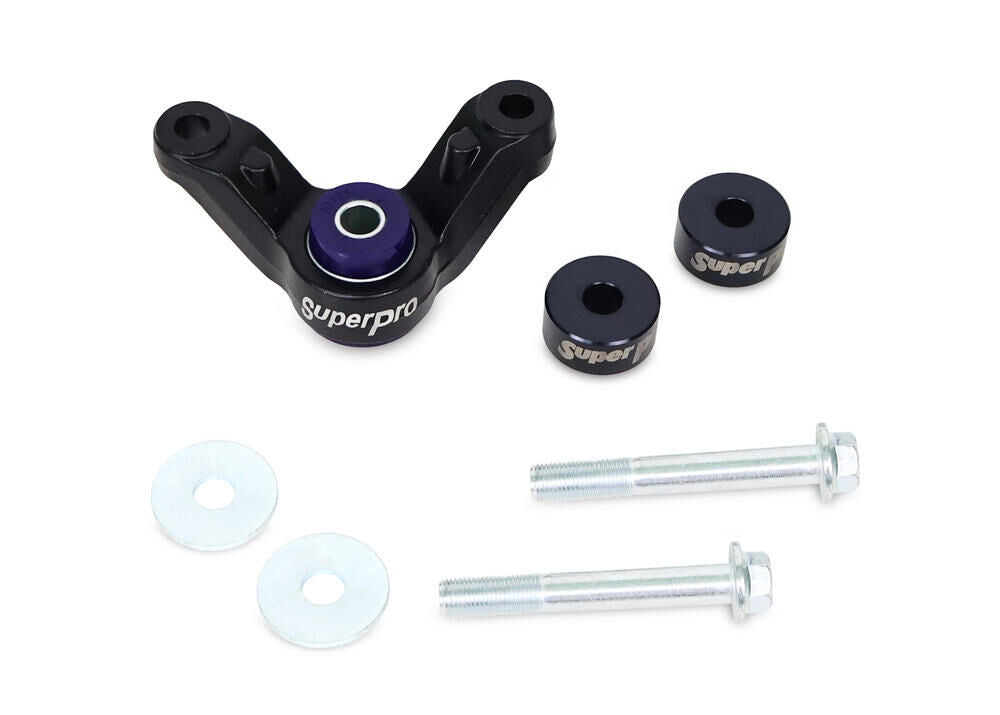

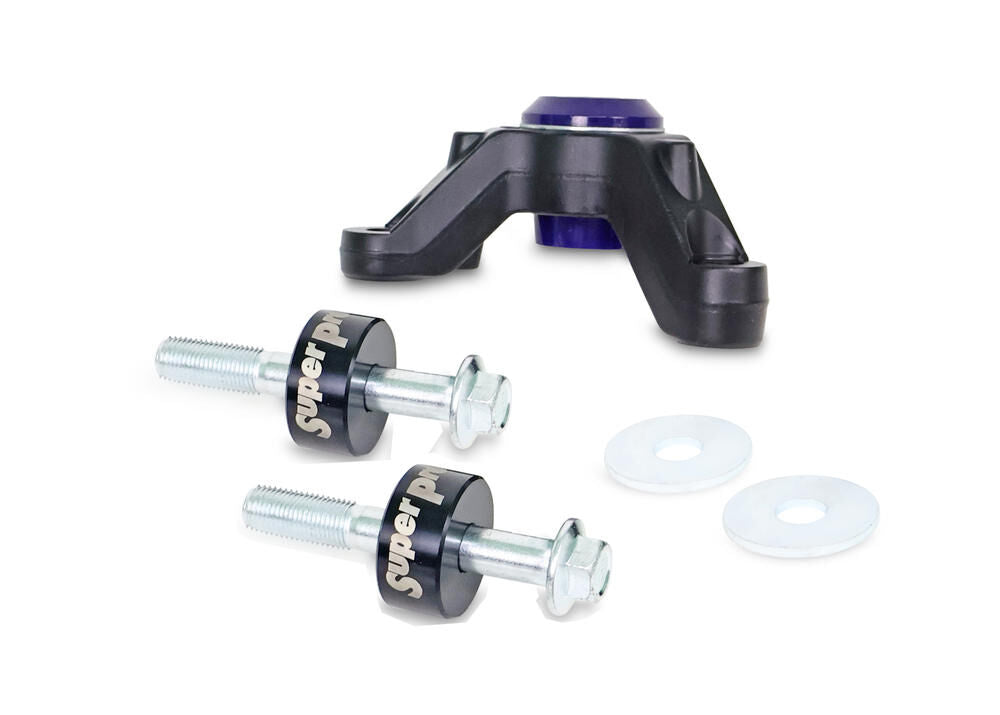

Kit Contents	1 Bracket, 2 Spacers, 2 Bolts, 2 Washers
Kits Required	1
Fitting Position	Front Axle
Foot Note 1	Drops differential to correct CV angle
Foot Note 3	lifetime warranty
Sub brand	Roll Control
EAN	9317745842729
Product Note	This bolt on kit corrects the geometry of the front axles and reducing CV bind at full droop by lowering the front diff approximately 20mm. This kit requires no modifications to the cross member and allows the original bash plate to be refitted.
