TRCLC100DD SuperPro Front Differential Drop Kit to suit Toyota Land Cruiser 100 Series & Lexus LX | Genuine SuperPro Suspension Component

Benefit Note: When lifting a vehicle, the Constant Velocity (CV) joints are put on an increased angle, helping to accelerate the wear on the joint and putting additional stress on the CV boots. The added down travel from adding extended shocks can also cause the joint to exceed the maximum operating angle, which causes the CV joints to bind up and cease to operate. The SuperPro bolt-on kit corrects the geometry of the front axles and CV's by lowering the front diff by approximately 25mm. Reducing the angles on the CV joints can help get them back into the normal operating range, helping to avoid the expensive replacement costs of CV's.

Kit Specifications

Bush Type
Bush Quantity
OD (A)
ID (B)
Length (C)
Flange Thickness (D)
Flange OD (E)
C/Tube Quantity
C/Tube ODxIDxL
Similar Bushing Size

Packaged Weight and Dimensions

Units	cm/kg	in/lbs
Weight	6.3kg	13.89lbs
Length	100cm	39.37"
Width	10cm	3.94"
Height	20cm	7.87"

Misc. Product Information

More Information

SKU	TRCLC100DD

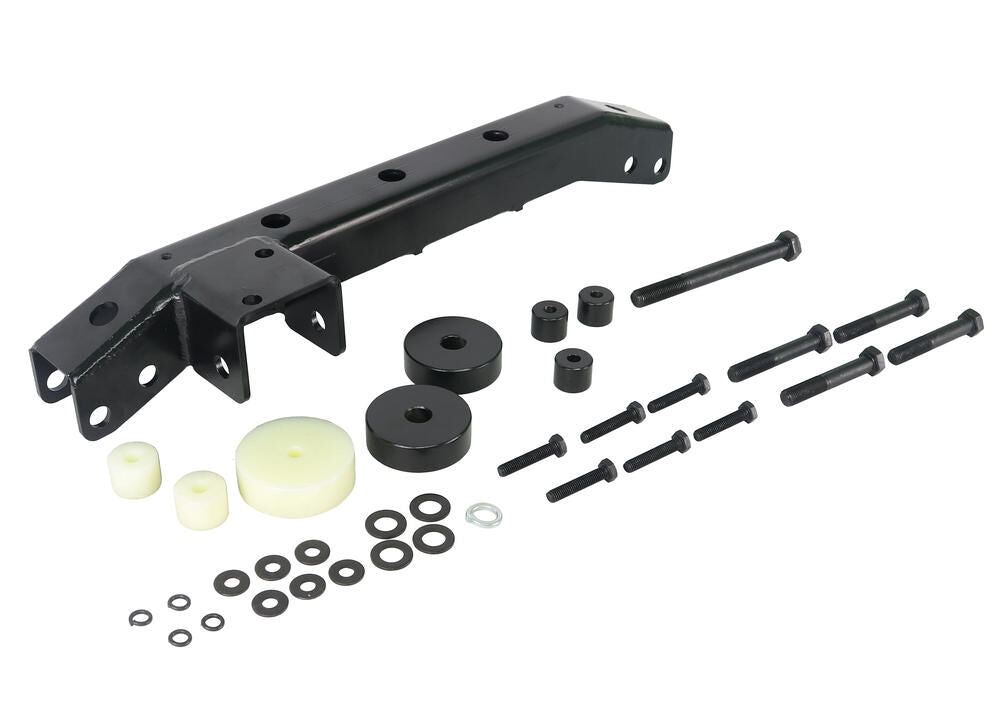

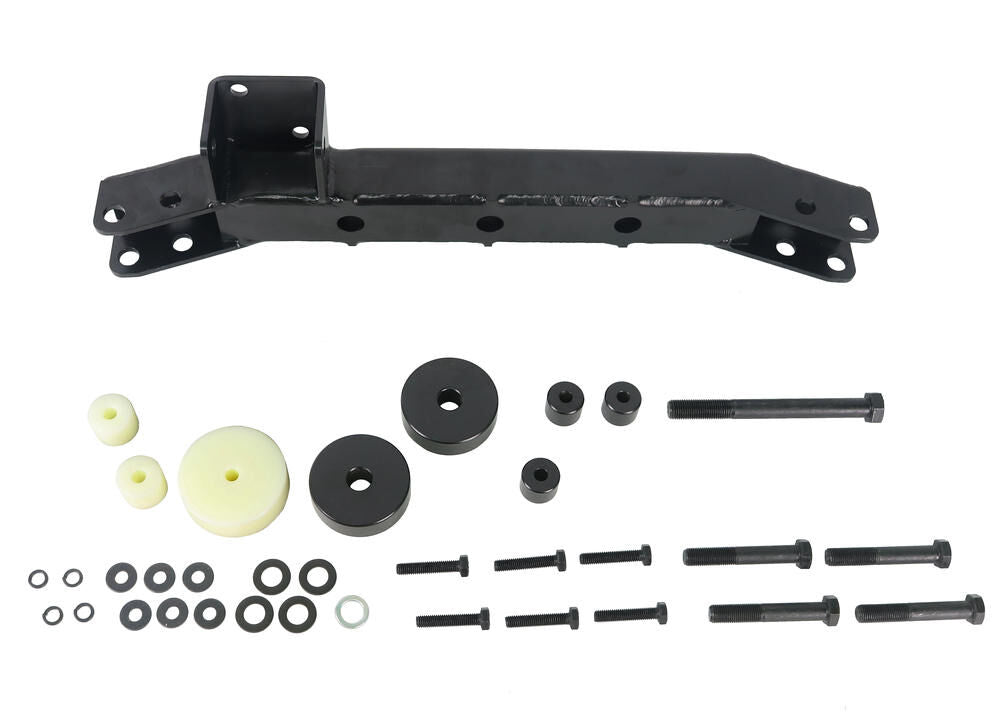

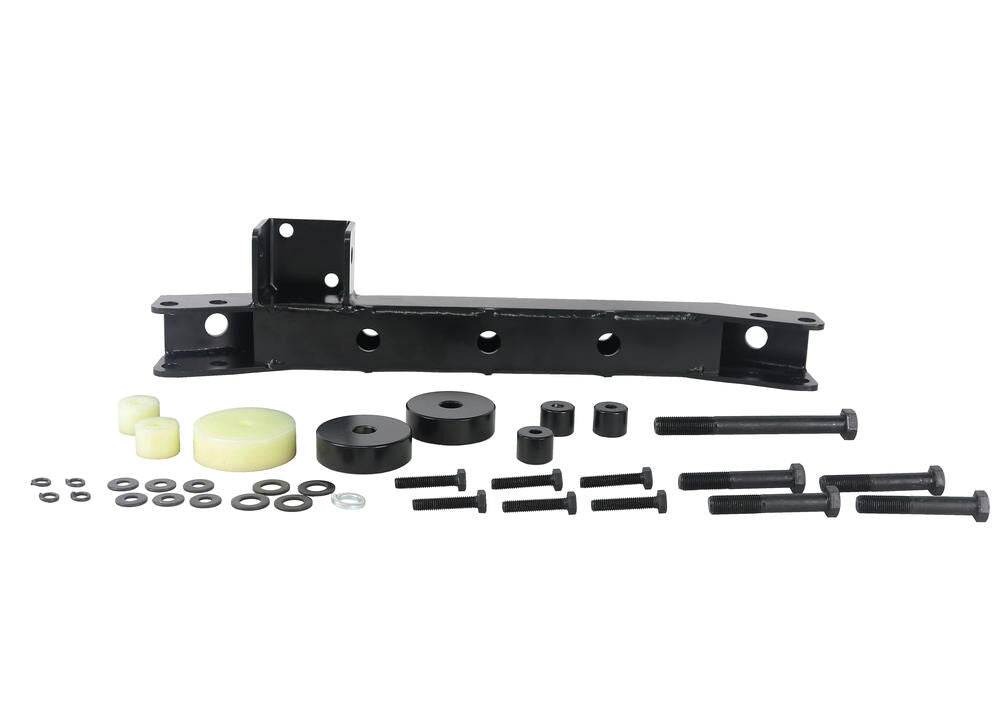

Kit Contents	1 Bracket, 8 Spacers, 7 Bolts, 11 Washers
Kits Required	1
Fitting Position	Front Axle
Foot Note 1	Drops differential to correct CV angle
Foot Note 3	lifetime warranty
Sub brand	Roll Control
EAN	9317745804789
Product Note	Enhance performance and traction; a complete, premium upgrade. Includes: 1 Bracket, 8 Spacers, 7 Bolts, 11 Washers
