W12978 Whiteline Front Steering Rack and Pinion - Mount Bushing Kit to Suit Toyota Prado and 4Runner | Genuine Whiteline Suspension Component
W12978 Whiteline Front Steering Rack and Pinion - Mount Bushing Kit to Suit Toyota Prado and 4Runner | Genuine Whiteline Suspension Component
Couldn't load pickup availability
✓ Authorised Volvo Penta Dealer · Marine & auto specialists · Ships Australia-wide

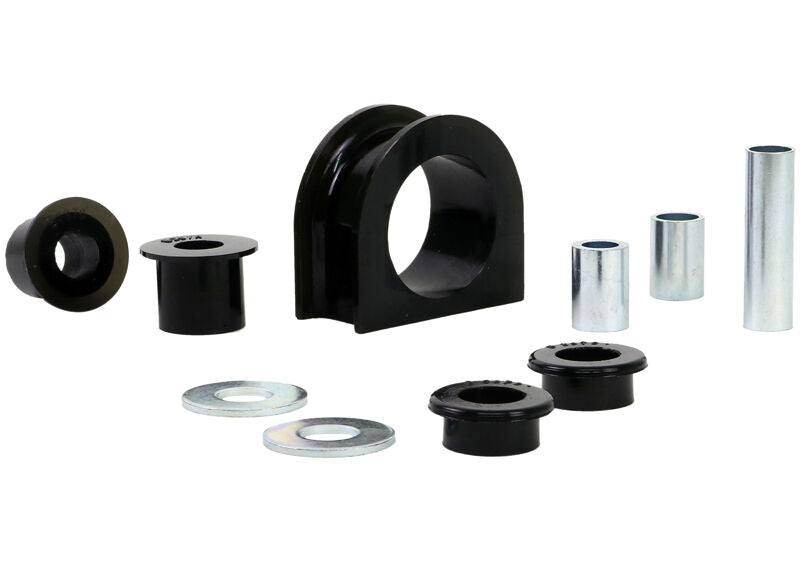

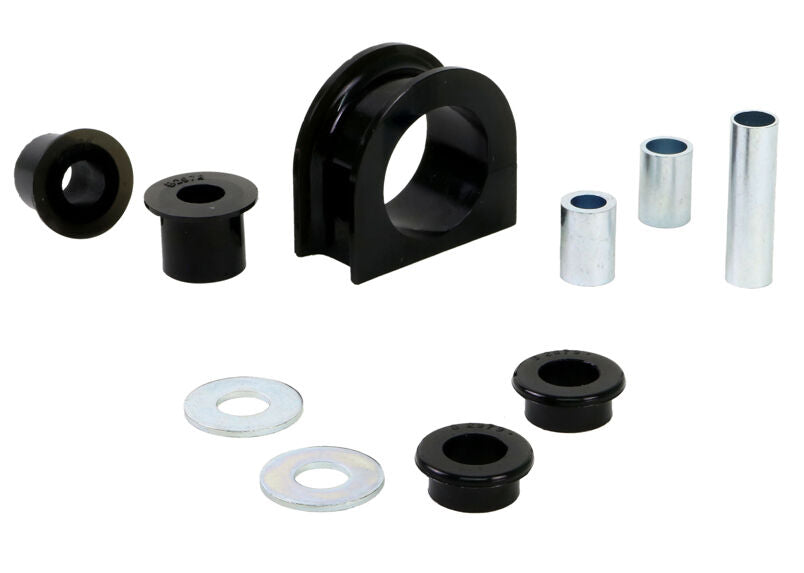

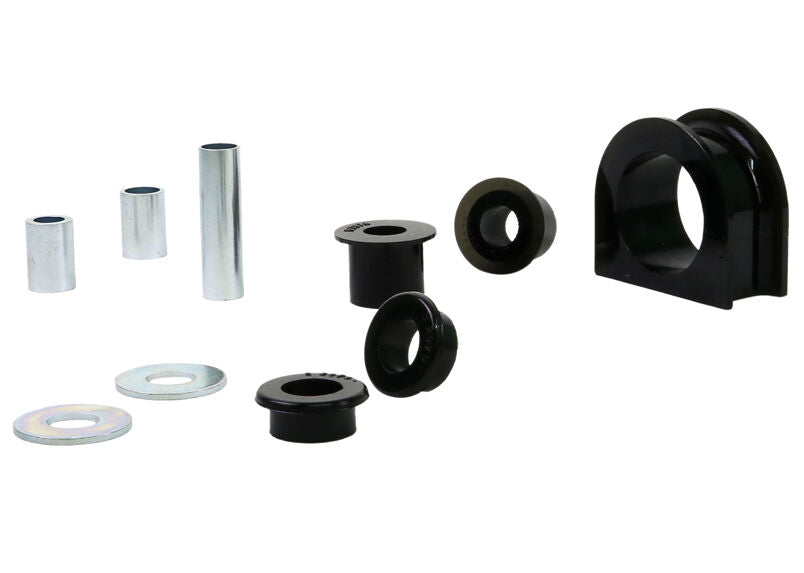

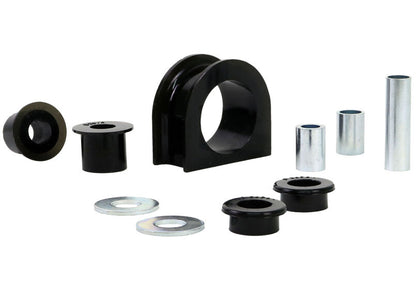

- Maximises grip and stability for better control; the perfect, complete upgrade. Includes: 5 Bushings, 2 Tubes & 1 Washer

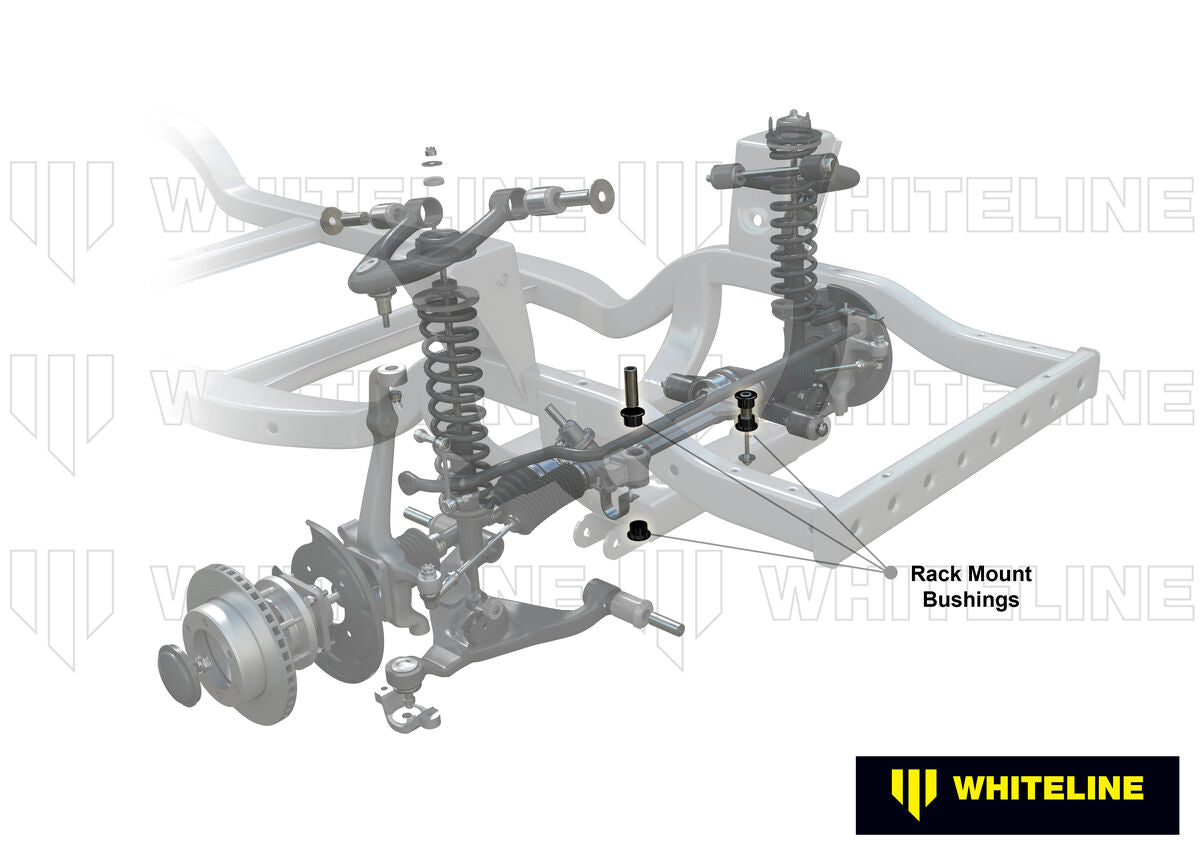

Benefit Note: Power steering, aggressive wheel alignment geometry, wider wheels and lower profile tyres have all put radically increased loading on the steering systems of modern cars. Add to that engine bay contaminants such as oil leaks that also help to degrade the performance of steering rack mount bushings. Whiteline steering rack mounts are engineered to outlast and enhance steering precision and feedback.
Kit Specifications
| Bush Type | 1 - Shackle Bushing | 4 - D-bushing With Flange | 1 - Shackle Bushing |
|---|---|---|---|
| Bush Quantity | 2 mm | 1 mm | 2 mm |
| OD (A) | 33.7 mm | 69.8 mm | 32.15 mm |
| ID (B) | 19.1 mm | 55.5 mm | 22.4 mm |
| Length (C) | 31.3 mm | 38.2 mm | 16.5 mm |
| Flange Thickness (D) | 2.3 mm | 4 mm | 3.8 mm |
| Flange OD (E) | 45.6 mm | 79 mm | 41.4 mm |
| C/Tube Quantity | 1 / 1 | 1 / 1 | 1 / 1 |
| C/Tube ODxIDxL | 22.2x16.2x65 / 22.2x17x31 mm | 22.2x16.2x65 / 22.2x17x31 mm | 22.2x16.2x65 / 22.2x17x31 mm |

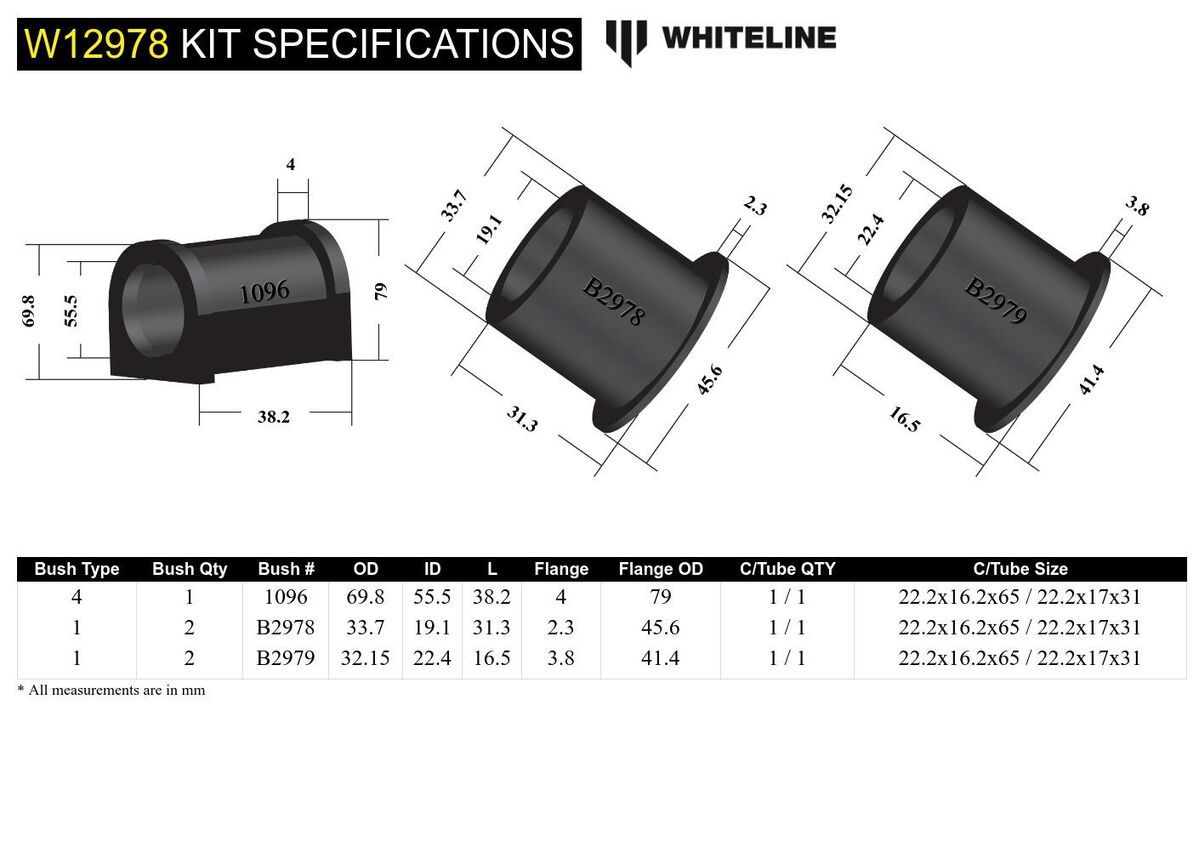

Bushing Design Dimensions (mm)
| Bush Type | 1 | 4 | 1 |
|---|---|---|---|
| QTY | 2 | 1 | 2 |
| OD (A) | 33.7 | 69.8 | 32.15 |
| ID (B) | 19.1 | 55.5 | 22.4 |
| Length (C) | 31.3 | 38.2 | 16.5 |
| FL (D) | 2.3 | 4 | 3.8 |
| FLOD (E) | 45.6 | 79 | 41.4 |
| C/Tube Qty | 1 / 1 | 1 / 1 | 1 / 1 |
| C/Tube Size | 22.2x16.2x65 / 22.2x17x31 | 22.2x16.2x65 / 22.2x17x31 | 22.2x16.2x65 / 22.2x17x31 |
Packaged Weight and Dimensions
| Units | cm/kg | in/lbs |
|---|---|---|
| Weight | 0.316kg | 0.7lbs |
| Length | 10cm | 3.94" |
| Width | 16cm | 6.3" |
| Height | 26cm | 10.24" |
Misc. Product Information
| SKU | W12978 |
| Components Per | 5 Bushings, 2 Tubes, 1 Washer |
| Kits Required | 1 |
| Sub brand | Replacement |
| Product Note | Maximises grip and stability for better control; the perfect, complete upgrade. Includes: 5 Bushings, 2 Tubes & 1 Washer |
| EAN | 9319924349470 |
