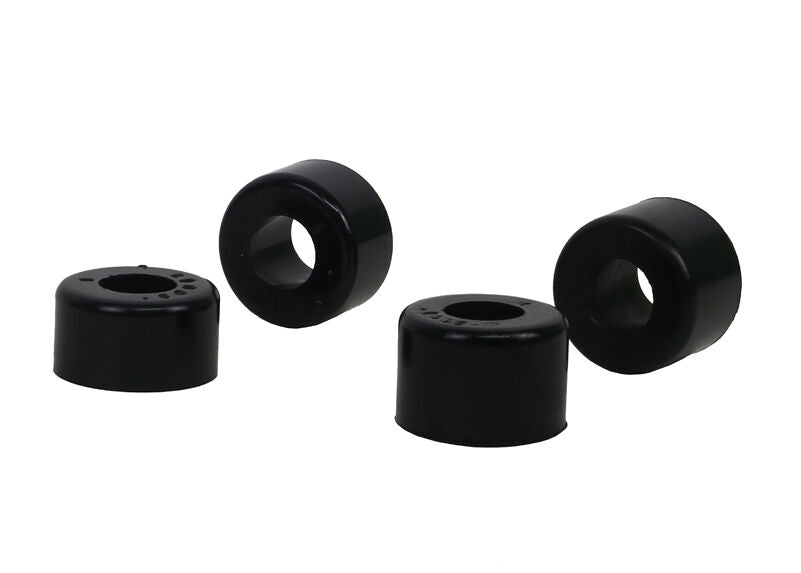

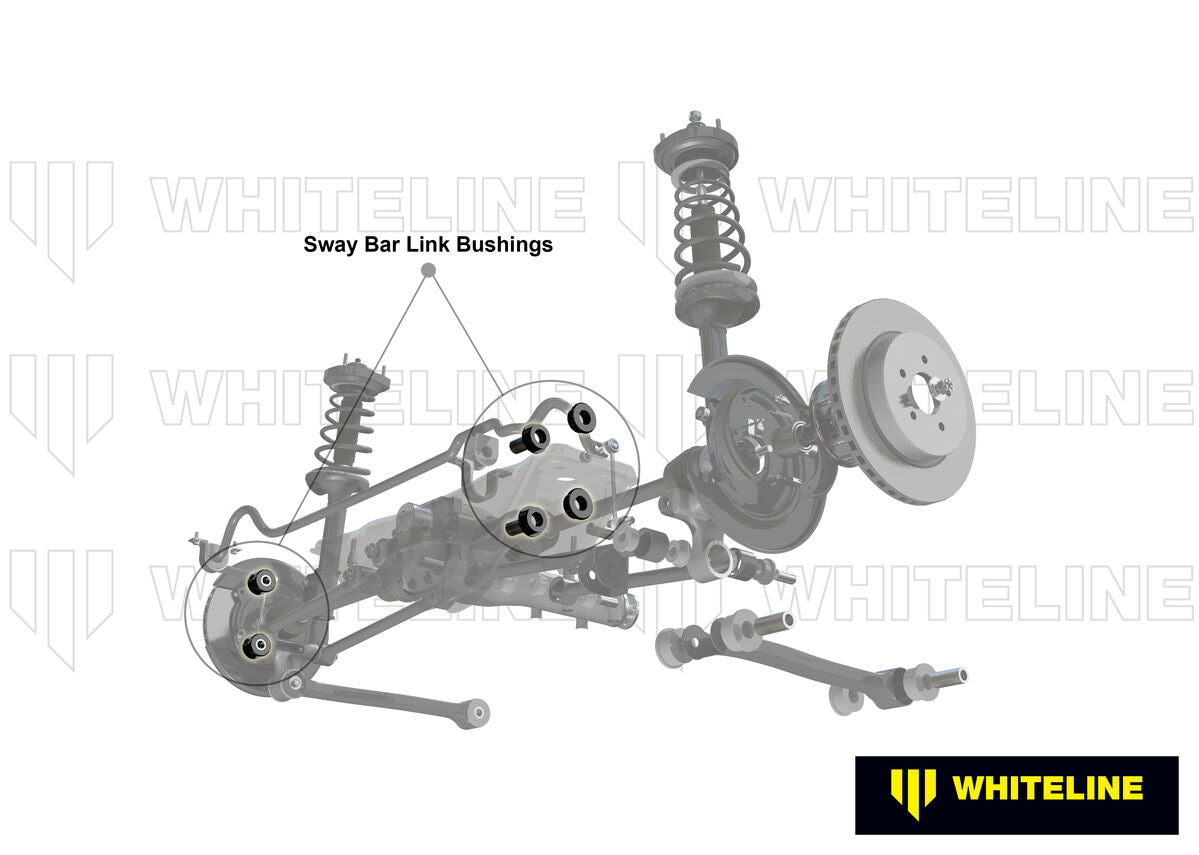

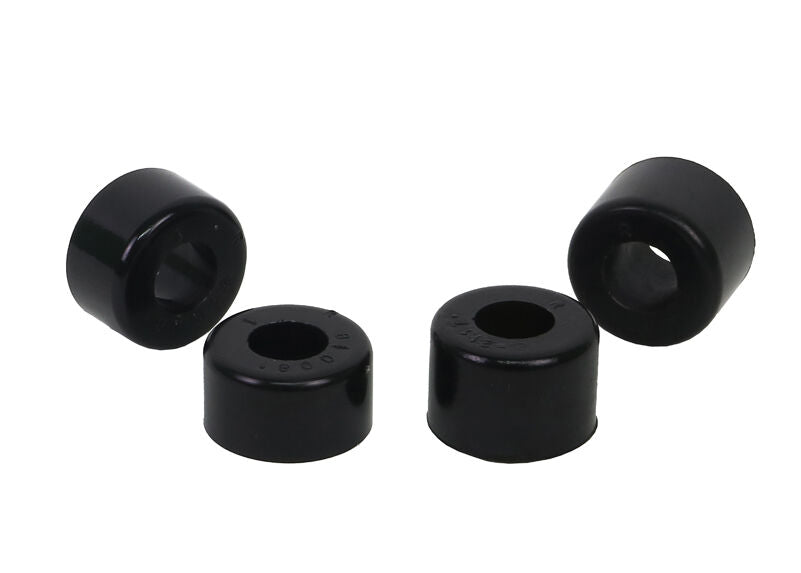

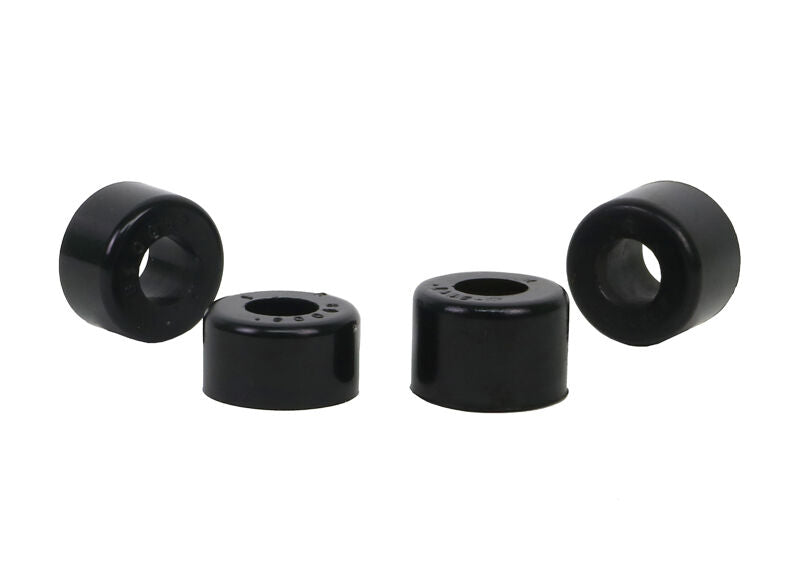

W22117 Whiteline Rear Sway Bar To Hub - Bushing Kit to Suit Holden Astra LD and Nissan Pulsar N13 | Genuine Whiteline Suspension Component
W22117 Whiteline Rear Sway Bar To Hub - Bushing Kit to Suit Holden Astra LD and Nissan Pulsar N13 | Genuine Whiteline Suspension Component
Couldn't load pickup availability
✓ Authorised Volvo Penta Dealer · Marine & auto specialists · Ships Australia-wide
- Engineered for precision and balance and maintains optimal suspension geometry under load; the perfect, complete upgrade. Includes: 4 Bushings
Benefit Note: One of the most common suspension service items as they are easily inspected and simple to replace. Whiteline sway bar mounts utilise the latest technology synthetic elastomer combined with effective designs such as the internal bore knurling and grease retention lips for optimum lubrication and performance. Be sure to measure the sway bar diameter to ensure appropriate diameter mount bushing is selected.
Kit Specifications
| Bush Type | 7 - Pin Bush With & Without Spigot | 7 - Pin Bush With & Without Spigot |
|---|---|---|
| Bush Quantity | 2 mm | 2 mm |
| OD (A) | 40 mm | 41 mm |
| ID (B) | 19 mm | 21 mm |
| Length (C) | 28 mm | 34 mm |
| Flange Thickness (D) | ||
| Flange OD (E) | ||
| C/Tube Quantity | ||
| C/Tube ODxIDxL |

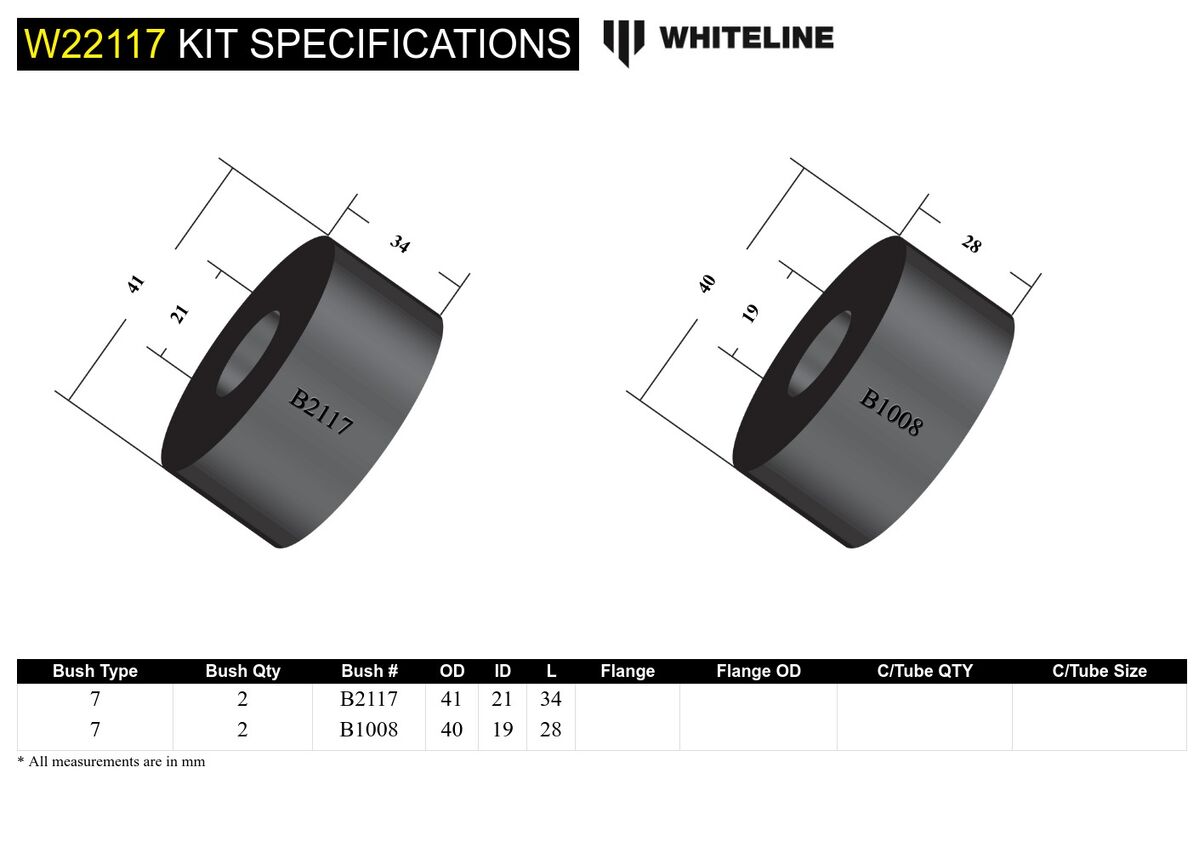

Bushing Design Dimensions (mm)
| Bush Type | 7 | 7 |
|---|---|---|
| QTY | 2 | 2 |
| OD (A) | 40 | 41 |
| ID (B) | 19 | 21 |
| Length (C) | 28.0 | 34.0 |
| FL (D) | ||
| FLOD (E) | ||
| C/Tube Qty | ||
| C/Tube Size |
Packaged Weight and Dimensions
| Units | cm/kg | in/lbs |
|---|---|---|
| Weight | 0.136kg | 0.3lbs |
| Length | 7cm | 2.76" |
| Width | 20cm | 7.87" |
| Height | 14cm | 5.51" |
Misc. Product Information
| SKU | W22117 |
| Components Per | 4 Bushings |
| Kits Required | 1 |
| Sub brand | Replacement |
| Product Note | Engineered for precision and balance and maintains optimal suspension geometry under load; the perfect, complete upgrade. Includes: 4 Bushings |
| EAN | 9319924350520 |
