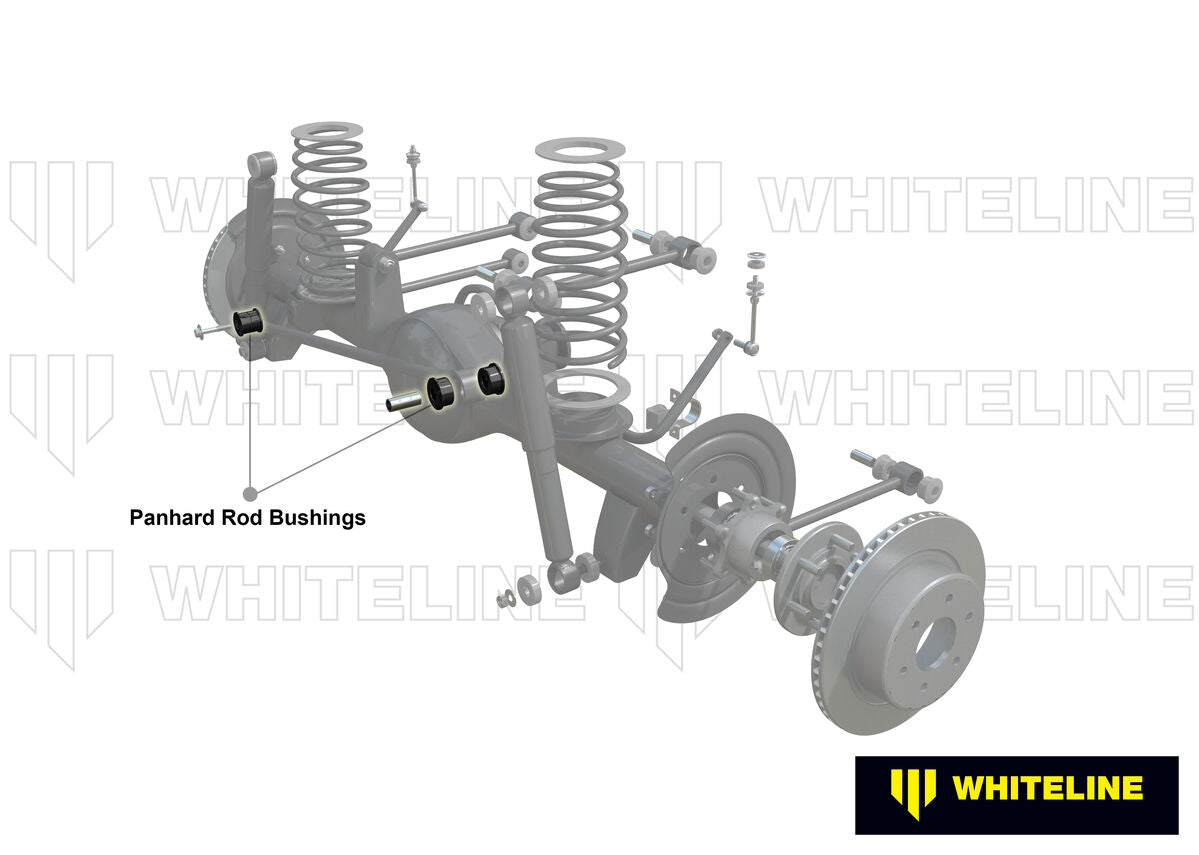

W81632 Whiteline Rear Panhard Rod - Bushing Kit to Suit Nissan Skyline and Pintara R31 | Genuine Whiteline Suspension Component
W81632 Whiteline Rear Panhard Rod - Bushing Kit to Suit Nissan Skyline and Pintara R31 | Genuine Whiteline Suspension Component
Couldn't load pickup availability
✓ Authorised Volvo Penta Dealer · Marine & auto specialists · Ships Australia-wide

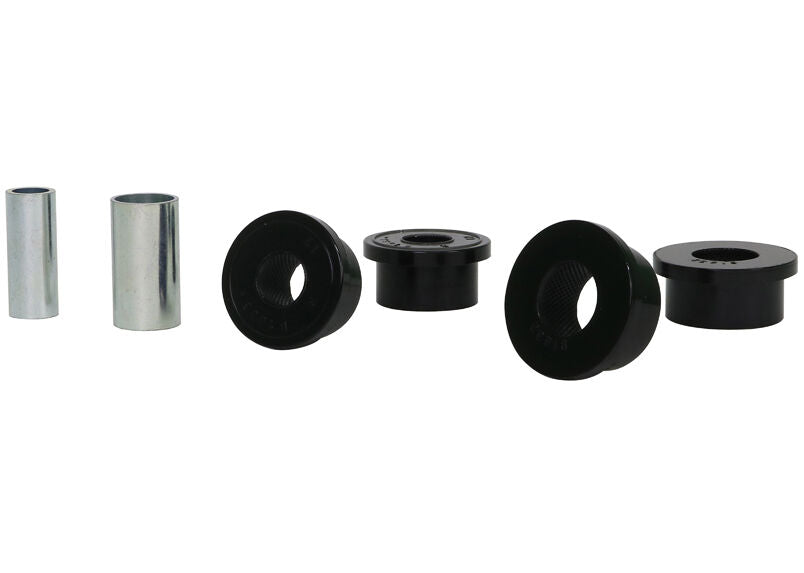

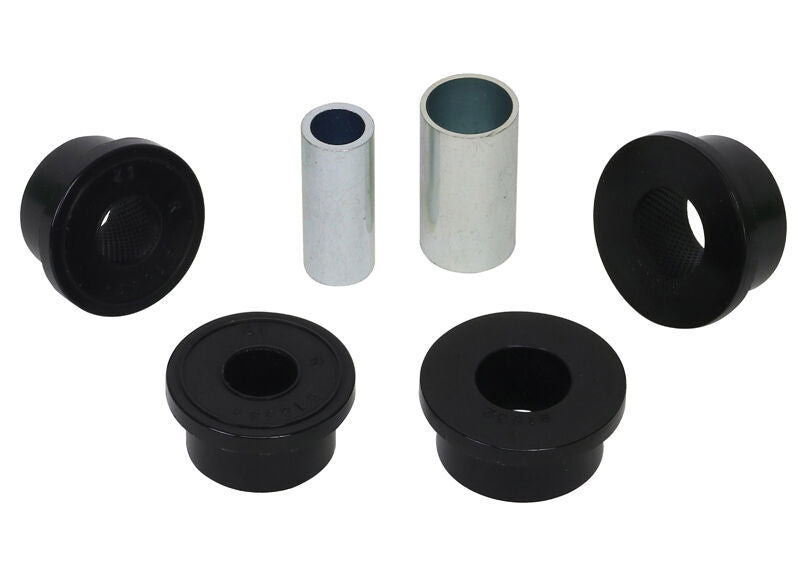

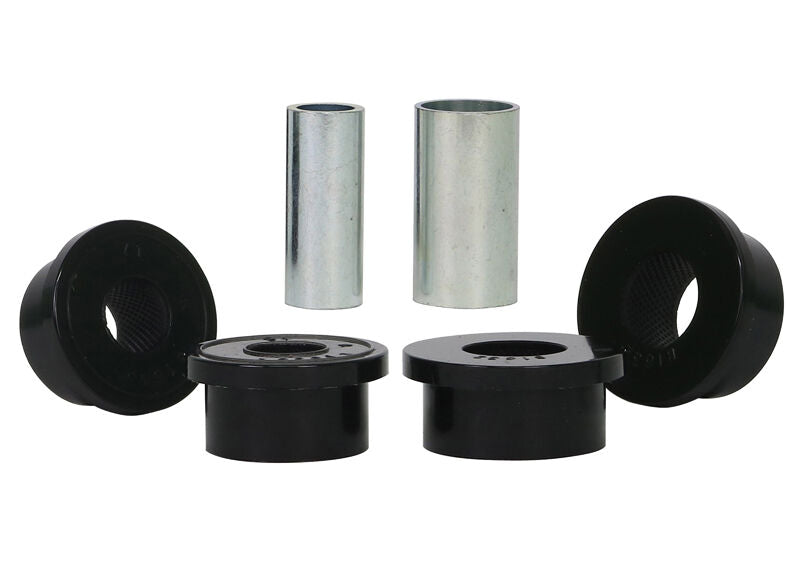

- Boosts handling and performance, while optimising suspension geometry; the perfect, complete upgrade. Includes: 4 Bushings & 2 Tubes
Benefit Note: Eliminate wheel shimmy and ensure accurate axle location with Whiteline synthetic elastomer with core characteristics ensuring superior elasticity, memory and outright durability for all forms of driving applications.

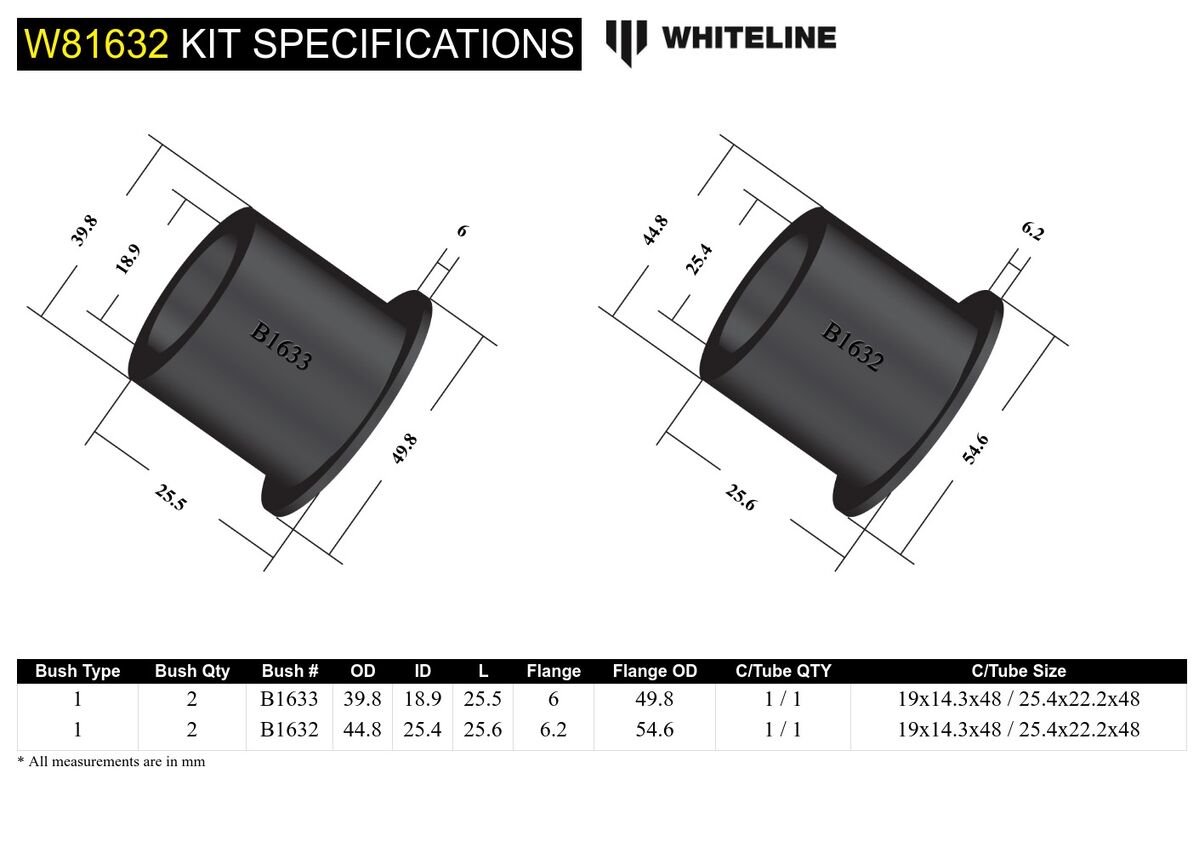

Kit Specifications
| Bush Type | 1 - Shackle Bushing | 1 - Shackle Bushing |
|---|---|---|
| Bush Quantity | 2 mm | 2 mm |
| OD (A) | 44.8 mm | 39.8 mm |
| ID (B) | 25.4 mm | 18.9 mm |
| Length (C) | 25.6 mm | 25.5 mm |
| Flange Thickness (D) | 6.2 mm | 6 mm |
| Flange OD (E) | 54.6 mm | 49.8 mm |
| C/Tube Quantity | 1 / 1 | 1 / 1 |
| C/Tube ODxIDxL | 19x14.3x48 / 25.4x22.2x48 mm | 19x14.3x48 / 25.4x22.2x48 mm |
Bushing Design Dimensions (mm)
| Bush Type | 1 | 1 |
|---|---|---|
| QTY | 2 | 2 |
| OD (A) | 44.8 | 39.8 |
| ID (B) | 25.4 | 18.9 |
| Length (C) | 25.6 | 25.5 |
| FL (D) | 6.2 | 6 |
| FLOD (E) | 54.6 | 49.8 |
| C/Tube Qty | 1 / 1 | 1 / 1 |
| C/Tube Size | 19x14.3x48 / 25.4x22.2x48 | 19x14.3x48 / 25.4x22.2x48 |
Packaged Weight and Dimensions
| Units | cm/kg | in/lbs |
|---|---|---|
| Weight | 0.248kg | 0.55lbs |
| Length | 7cm | 2.76" |
| Width | 20cm | 7.87" |
| Height | 14cm | 5.51" |
Misc. Product Information
| SKU | W81632 |
| Components Per | 4 Bushings, 2 Tubes |
| Kits Required | 1 |
| Sub brand | Replacement |
| Product Note | Boosts handling and performance, while optimising suspension geometry; the perfect, complete upgrade. Includes: 4 Bushings & 2 Tubes |
| EAN | 9319924357109 |
