W91107 Whiteline Front Subframe - Bushing Kit to Suit Holden HQ-WB and Torana LH-LX | Genuine Whiteline Suspension Component
W91107 Whiteline Front Subframe - Bushing Kit to Suit Holden HQ-WB and Torana LH-LX | Genuine Whiteline Suspension Component
Couldn't load pickup availability
✓ Authorised Volvo Penta Dealer · Marine & auto specialists · Ships Australia-wide

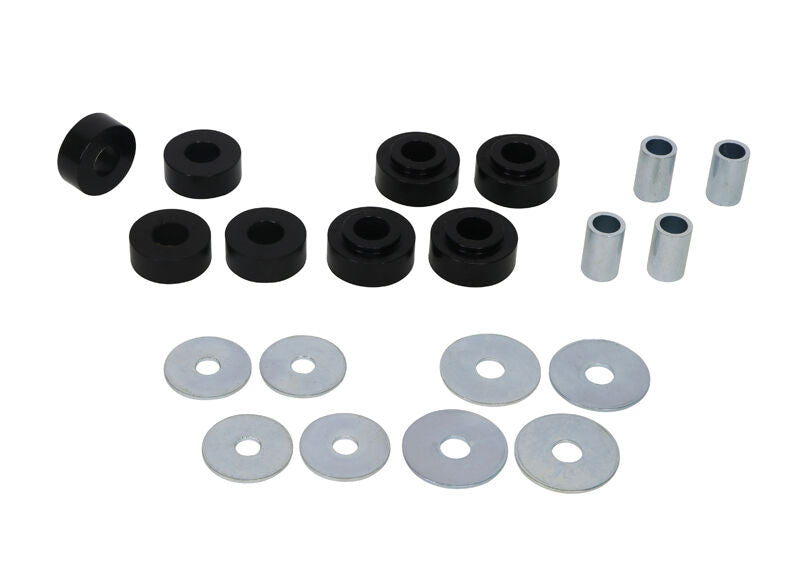

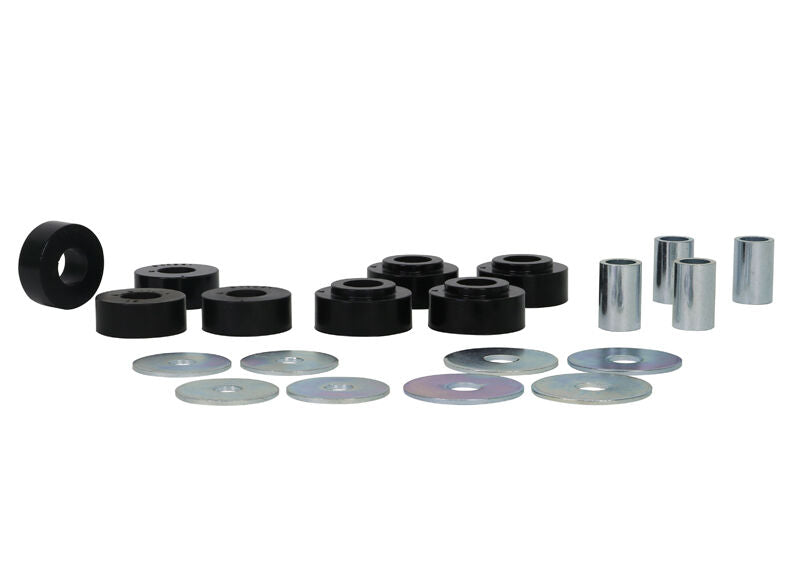

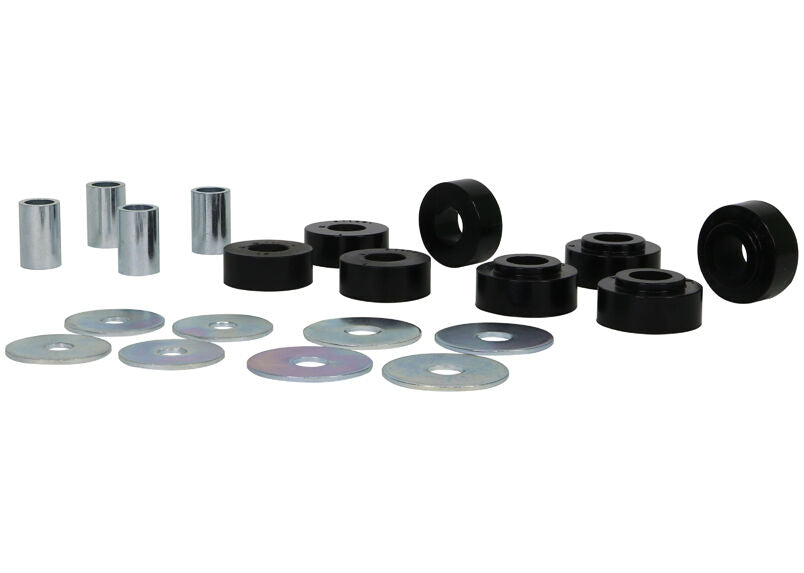

- Creates a consistent drive no matter the surface; the perfect, complete upgrade. Includes: 8 Bushings, 4 Tubes & 8 Washers
Benefit Note: The Whiteline kit replaces the bushings in the front subframe to dramatically reduce rear cross member misalignment and movement which allows a more positive feel from the rear end during cornering.
Kit Specifications
| Bush Type | 7 - Pin Bush With & Without Spigot | 7 - Pin Bush With & Without Spigot |
|---|---|---|
| Bush Quantity | 4 mm | 4 mm |
| OD (A) | 46.6 mm | AI=50.7 AII=34 mm |
| ID (B) | 21 mm | 21 mm |
| Length (C) | 18 mm | 18.4 mm |
| Flange Thickness (D) | 4.5 mm | |
| Flange OD (E) | ||
| C/Tube Quantity | ||
| C/Tube ODxIDxL |

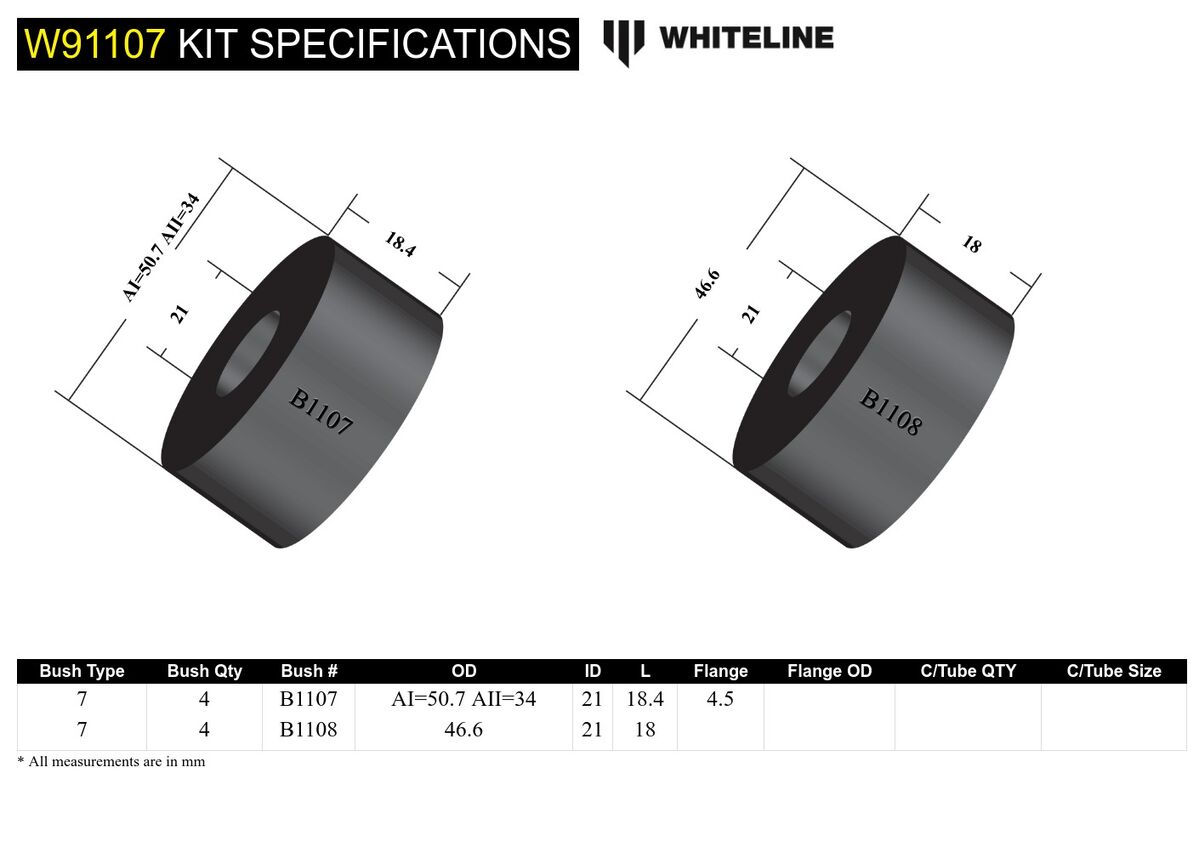

Bushing Design Dimensions (mm)
| Bush Type | 7 | 7 |
|---|---|---|
| QTY | 4 | 4 |
| OD (A) | 46.6 | AI=50.7 AII=34 |
| ID (B) | 21 | 21 |
| Length (C) | 18.0 | 18.4 |
| FL (D) | 4.5 | |
| FLOD (E) | ||
| C/Tube Qty | ||
| C/Tube Size |
Packaged Weight and Dimensions
| Units | cm/kg | in/lbs |
|---|---|---|
| Weight | 0.762kg | 1.68lbs |
| Length | 10cm | 3.94" |
| Width | 26cm | 10.24" |
| Height | 16cm | 6.3" |
Misc. Product Information
| SKU | W91107 |
| Components Per | 8 Bushings, 4 Tubes, 8 Washers |
| Kits Required | 2 |
| Sub brand | Replacement |
| Product Note | Creates a consistent drive no matter the surface; the perfect, complete upgrade. Includes: 8 Bushings, 4 Tubes & 8 Washers |
| EAN | 9319924357604 |
