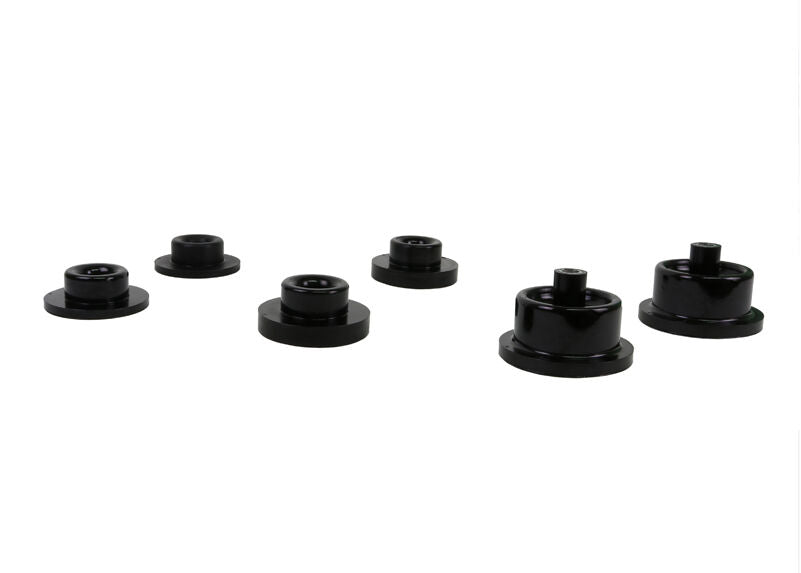

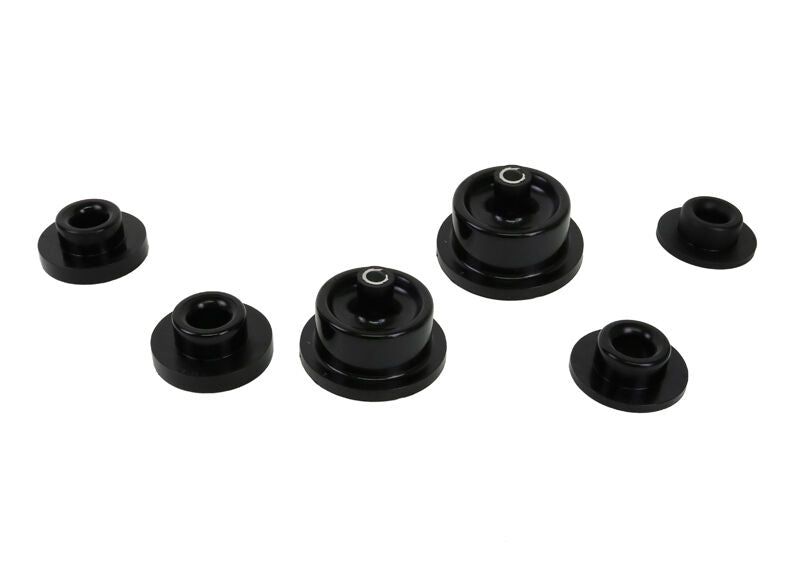

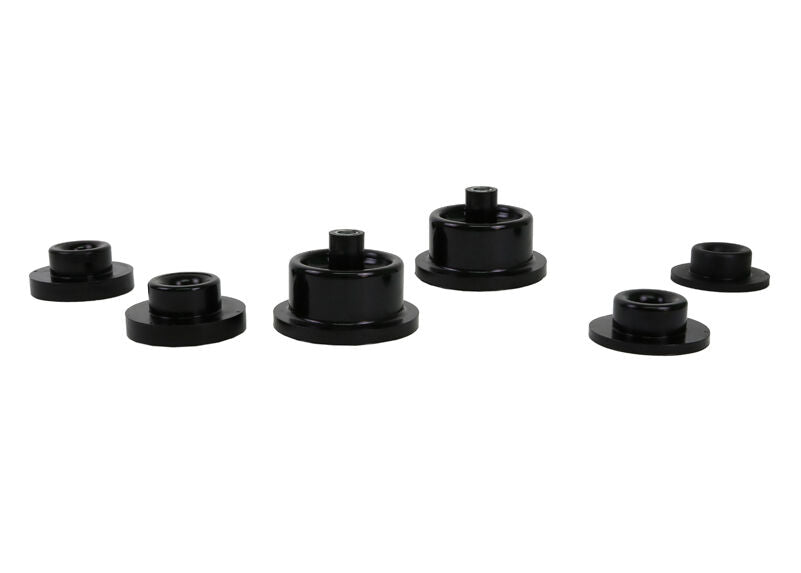

W92350 Whiteline Rear Subframe - Bushing Kit to Suit Holden Commodore VN-VZ and HSV | Genuine Whiteline Suspension Component
W92350 Whiteline Rear Subframe - Bushing Kit to Suit Holden Commodore VN-VZ and HSV | Genuine Whiteline Suspension Component
Couldn't load pickup availability
✓ Authorised Volvo Penta Dealer · Marine & auto specialists · Ships Australia-wide
- Boosts handling and performance, while optimising suspension geometry; the perfect, complete upgrade. Includes: 6 Bushings

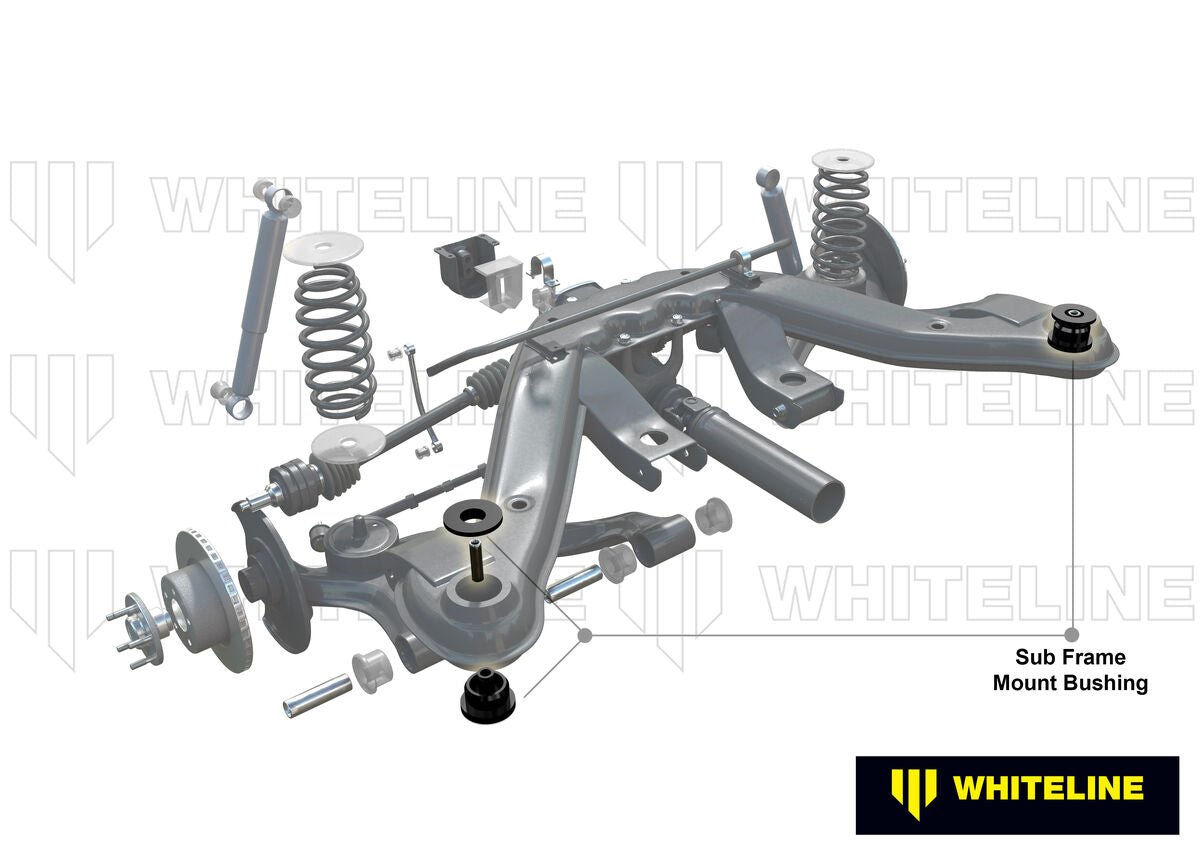

Benefit Note: The Whiteline kit replaces the bushings in the rear subframe to dramatically reduce rear cross member misalignment and movement which allows a more positive feel from the rear end during cornering. Recommended for motorsport applications.
Kit Specifications
| Bush Type | 6 - Male/female Interconnecting Bushing | 6 - Male/female Interconnecting Bushing | 6 - Male/female Interconnecting Bushing |
|---|---|---|---|
| Bush Quantity | 2 mm | 2 mm | 2 mm |
| OD (A) | 60 mm | 30 mm | 60 mm |
| ID (B) | 30.3 mm | 16.2 mm | 30.5 mm |
| Length (C) | 45 mm | 80 mm | 43 mm |
| Flange Thickness (D) | 8.5 mm | 12.7 mm | 17.5 mm |
| Flange OD (E) | 98.5 mm | 124 mm | 100 mm |
| C/Tube Quantity | |||
| C/Tube ODxIDxL |
Bushing Design Dimensions (mm)
| Bush Type | 6 | 6 | 6 |
|---|---|---|---|
| QTY | 2 | 2 | 2 |
| OD (A) | 60 | 30 | 60 |
| ID (B) | 30.3 | 16.2 | 30.5 |
| Length (C) | 45.0 | 80.0 | 43.0 |
| FL (D) | 8.5 | 12.7 | 17.5 |
| FLOD (E) | 98.5 | 124 | 100 |
| C/Tube Qty | |||
| C/Tube Size |
Packaged Weight and Dimensions
| Units | cm/kg | in/lbs |
|---|---|---|
| Weight | 1.72kg | 3.79lbs |
| Length | 20cm | 7.87" |
| Width | 10cm | 3.94" |
| Height | 20cm | 7.87" |
Misc. Product Information
| SKU | W92350 |
| Components Per | 6 Bushings |
| Kits Required | 1 |
| Sub brand | Replacement |
| Product Note | Boosts handling and performance, while optimising suspension geometry; the perfect, complete upgrade. Includes: 6 Bushings |
| EAN | 9319924357925 |
