W92994 Whiteline Rear Subframe - Bushing Kit to Suit Nissan 350Z, Skyline and Stagea | Genuine Whiteline Suspension Component
W92994 Whiteline Rear Subframe - Bushing Kit to Suit Nissan 350Z, Skyline and Stagea | Genuine Whiteline Suspension Component
Couldn't load pickup availability
✓ Authorised Volvo Penta Dealer · Marine & auto specialists · Ships Australia-wide

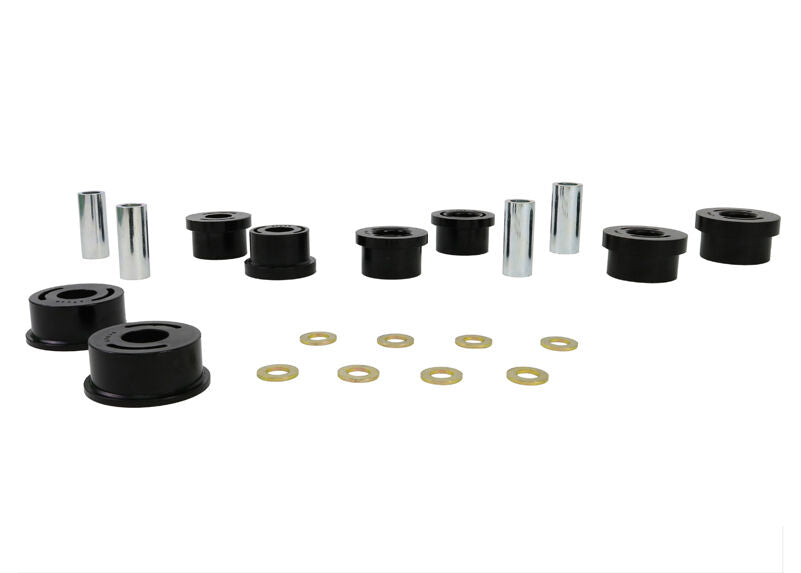

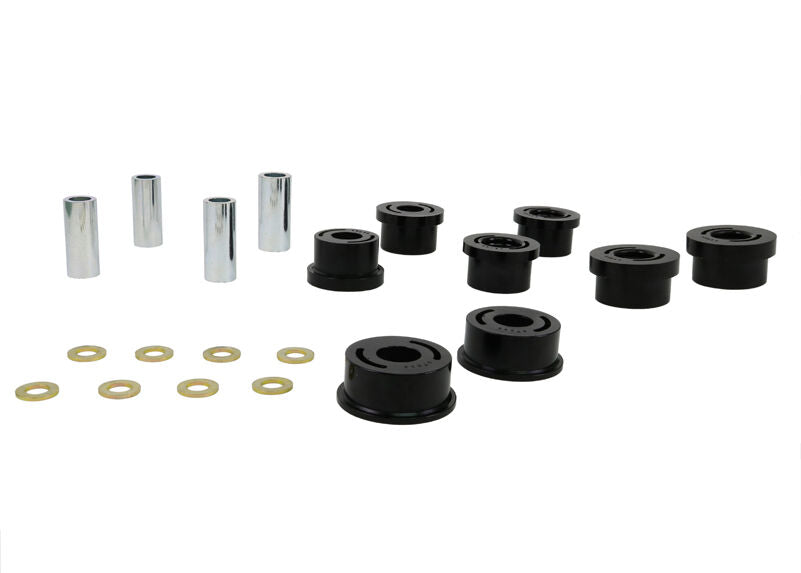

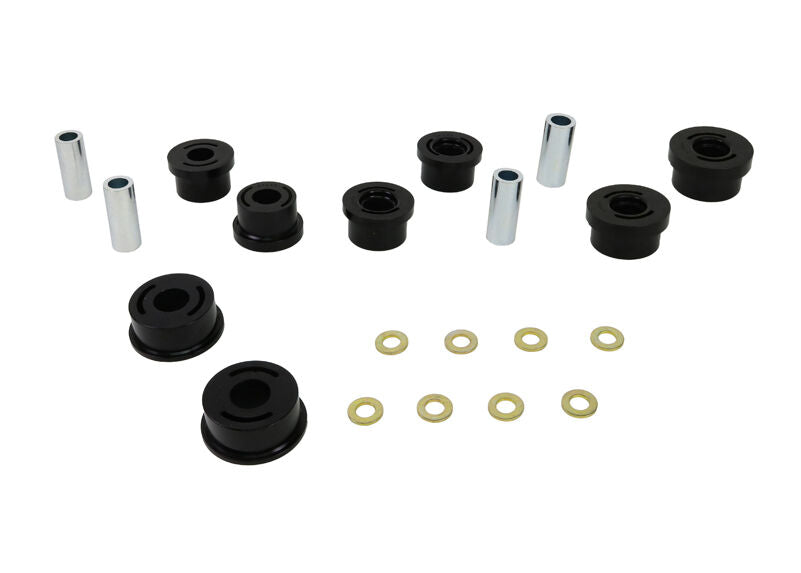

- Maximises grip and stability for better control; the perfect, complete upgrade. Includes: 8 Bushings, 4 Tubes & 8 Washers

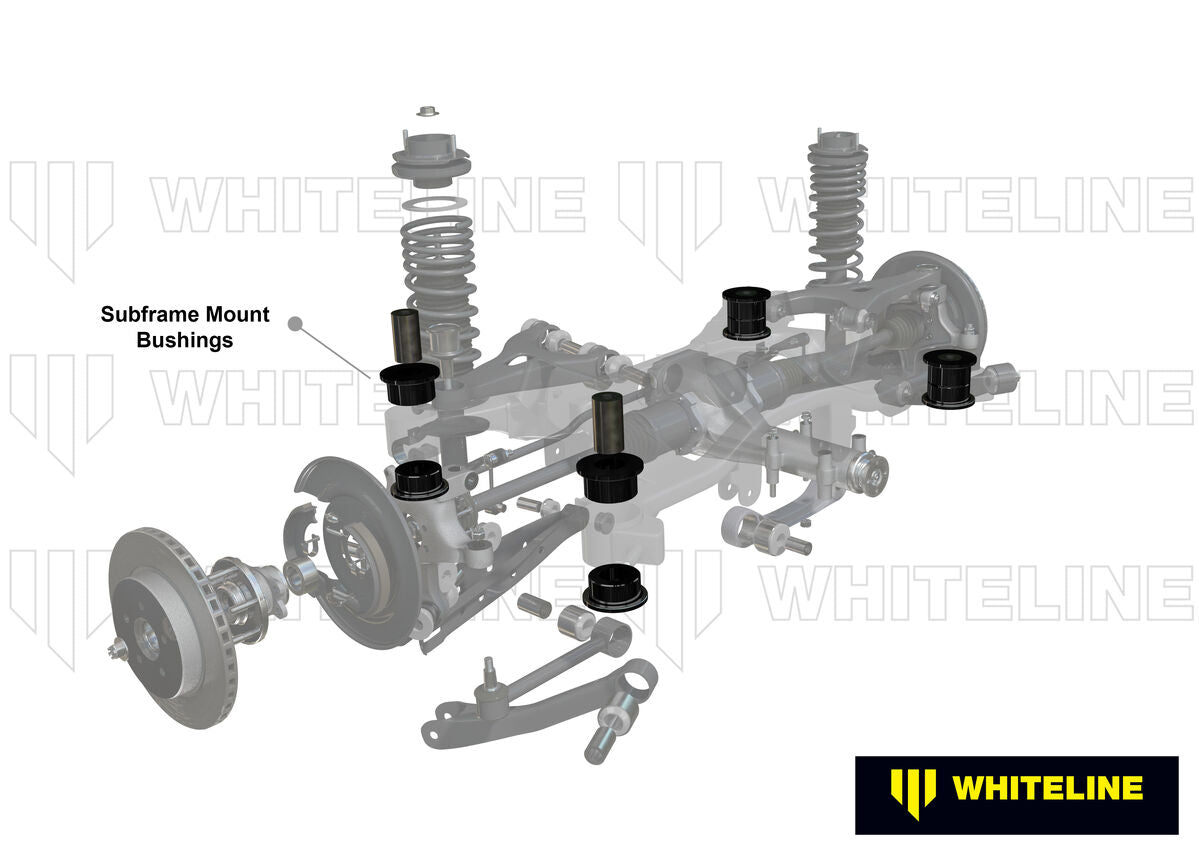

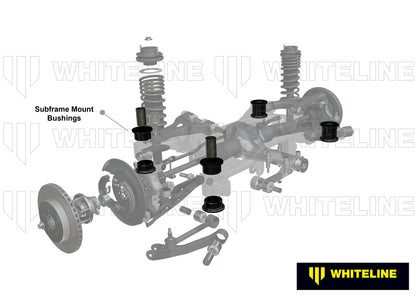

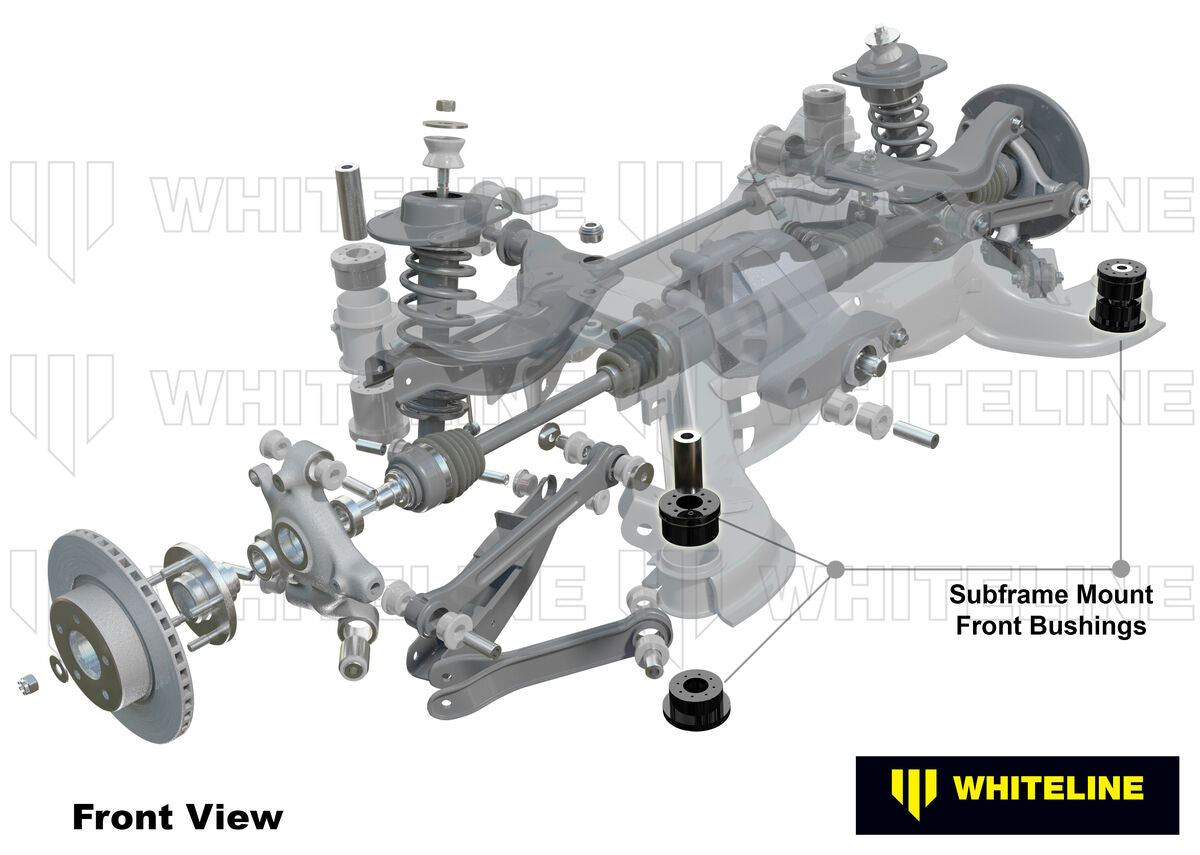

Benefit Note: The Whiteline kit replaces the bushings in the rear subframe to dramatically reduce rear cross member misalignment and movement which allows a more positive feel from the rear end during cornering. Recommended for motorsport applications.
Kit Specifications
| Bush Type | 1 - Shackle Bushing | 1 - Shackle Bushing | 1 - Shackle Bushing | 1 - Shackle Bushing |
|---|---|---|---|---|
| Bush Quantity | 2 mm | 2 mm | 2 mm | 2 mm |
| OD (A) | 65 mm | 65 mm | 76 mm | 76 mm |
| ID (B) | 32 mm | 32 mm | 32 mm | 32 mm |
| Length (C) | 45 mm | 47 mm | 36 mm | 47 mm |
| Flange Thickness (D) | 11 mm | 13 mm | 6 mm | 17 mm |
| Flange OD (E) | 78 mm | 78 mm | 85 mm | 90 mm |
| C/Tube Quantity | 4 | 4 | 4 | 4 |
| C/Tube ODxIDxL | 32x21.6x80 mm | 32x21.6x80 mm | 32x21.6x80 mm | 32x21.6x80 mm |

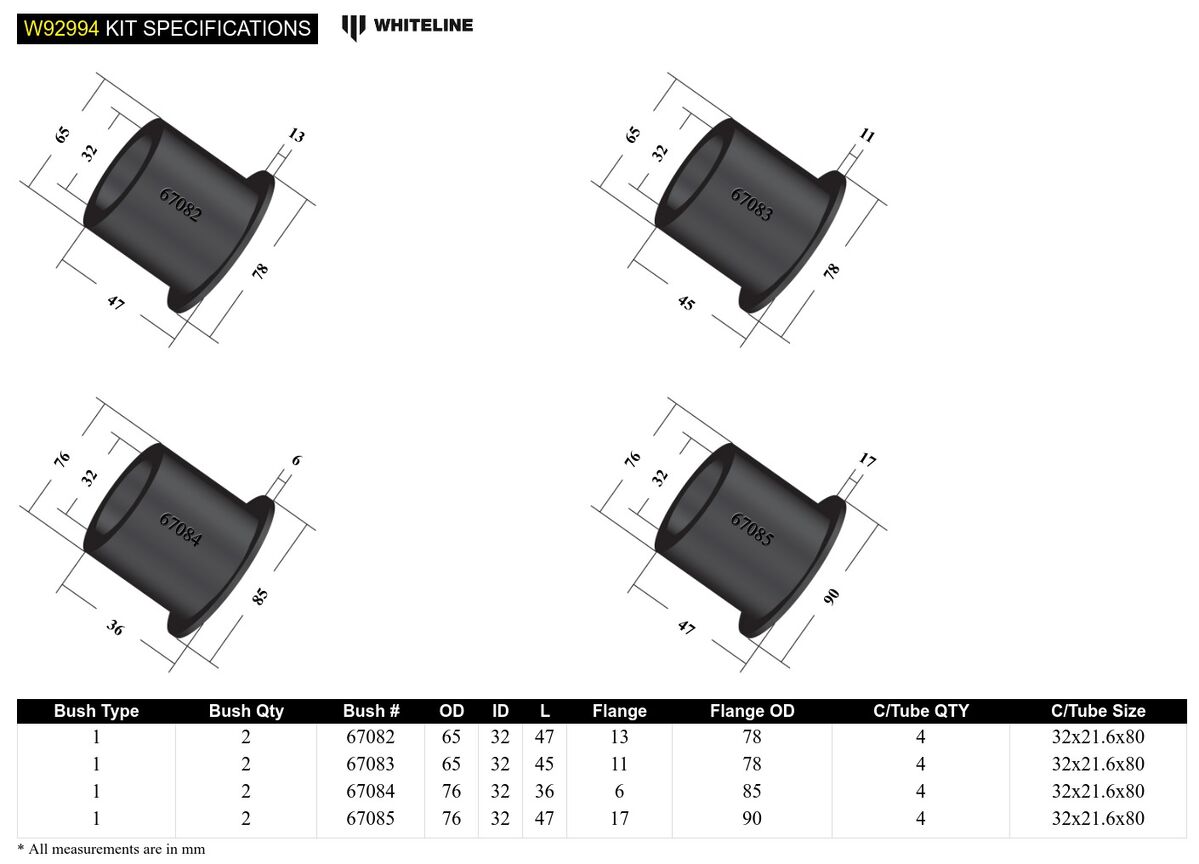

Bushing Design Dimensions (mm)
| Bush Type | 1 | 1 | 1 | 1 |
|---|---|---|---|---|
| QTY | 2 | 2 | 2 | 2 |
| OD (A) | 65 | 65 | 76 | 76 |
| ID (B) | 32 | 32 | 32 | 32 |
| Length (C) | 45.0 | 47.0 | 36.0 | 47.0 |
| FL (D) | 11 | 13 | 6 | 17 |
| FLOD (E) | 78 | 78 | 85 | 90 |
| C/Tube Qty | 4 | 4 | 4 | 4 |
| C/Tube Size | 32x21.6x80 | 32x21.6x80 | 32x21.6x80 | 32x21.6x80 |
Packaged Weight and Dimensions
| Units | cm/kg | in/lbs |
|---|---|---|
| Weight | 2.47kg | 5.45lbs |
| Length | 25cm | 9.84" |
| Width | 18cm | 7.09" |
| Height | 20cm | 7.87" |
Misc. Product Information
| SKU | W92994 |
| Components Per | 8 Bushings, 4 Tubes, 8 Washers |
| Kits Required | 1 |
| Sub brand | Replacement |
| Product Note | Maximises grip and stability for better control; the perfect, complete upgrade. Includes: 8 Bushings, 4 Tubes & 8 Washers |
| EAN | 9319924358250 |
