W93049 Whiteline Front Subframe - Rear Bushing Kit to Suit Nissan Dualis, X-Trail and Renault Koleos | Genuine Whiteline Suspension Component
W93049 Whiteline Front Subframe - Rear Bushing Kit to Suit Nissan Dualis, X-Trail and Renault Koleos | Genuine Whiteline Suspension Component
Couldn't load pickup availability
✓ Authorised Volvo Penta Dealer · Marine & auto specialists · Ships Australia-wide

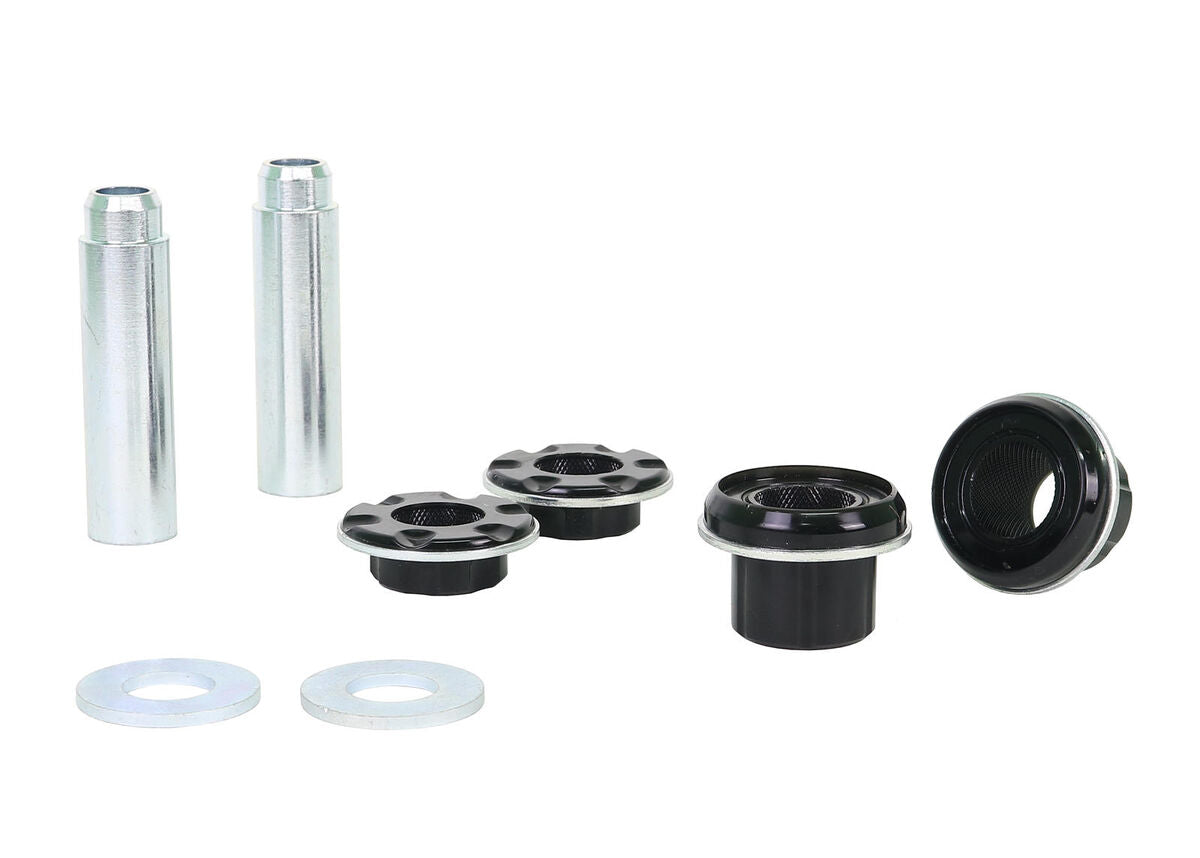

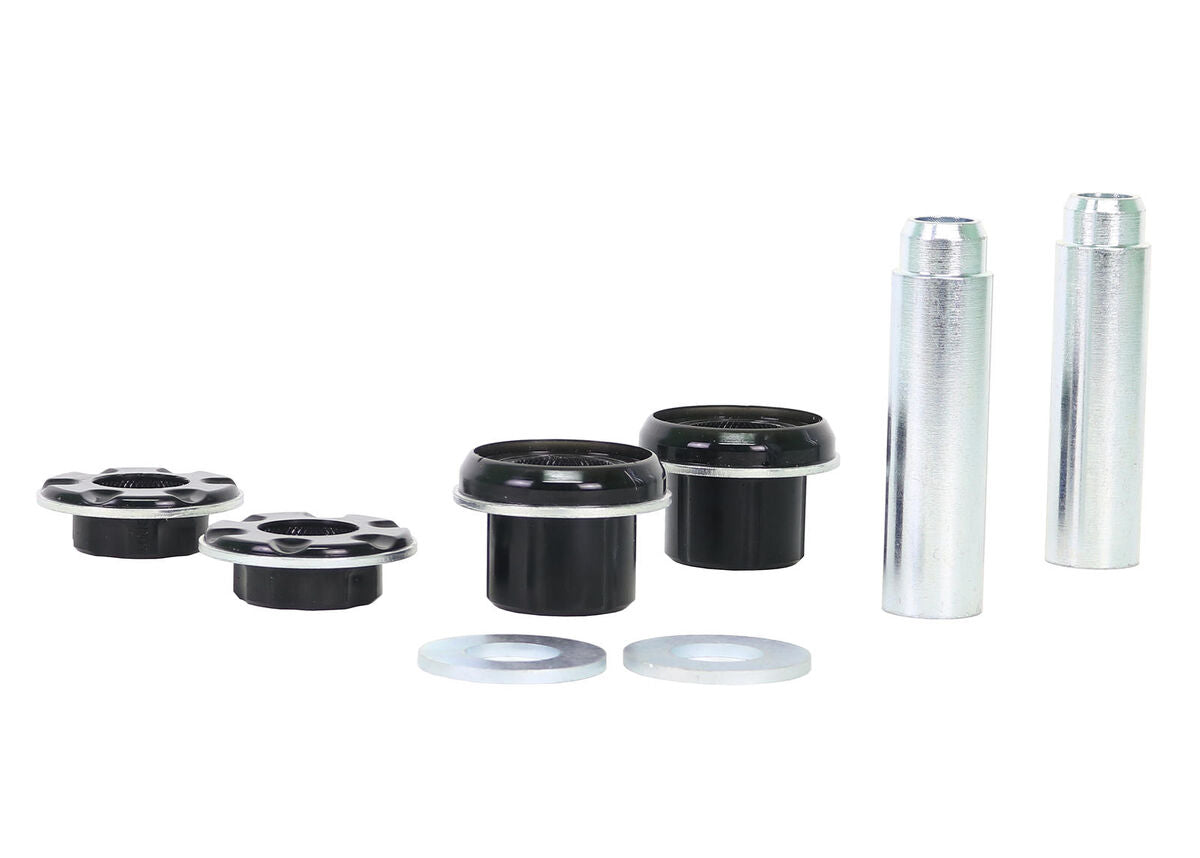

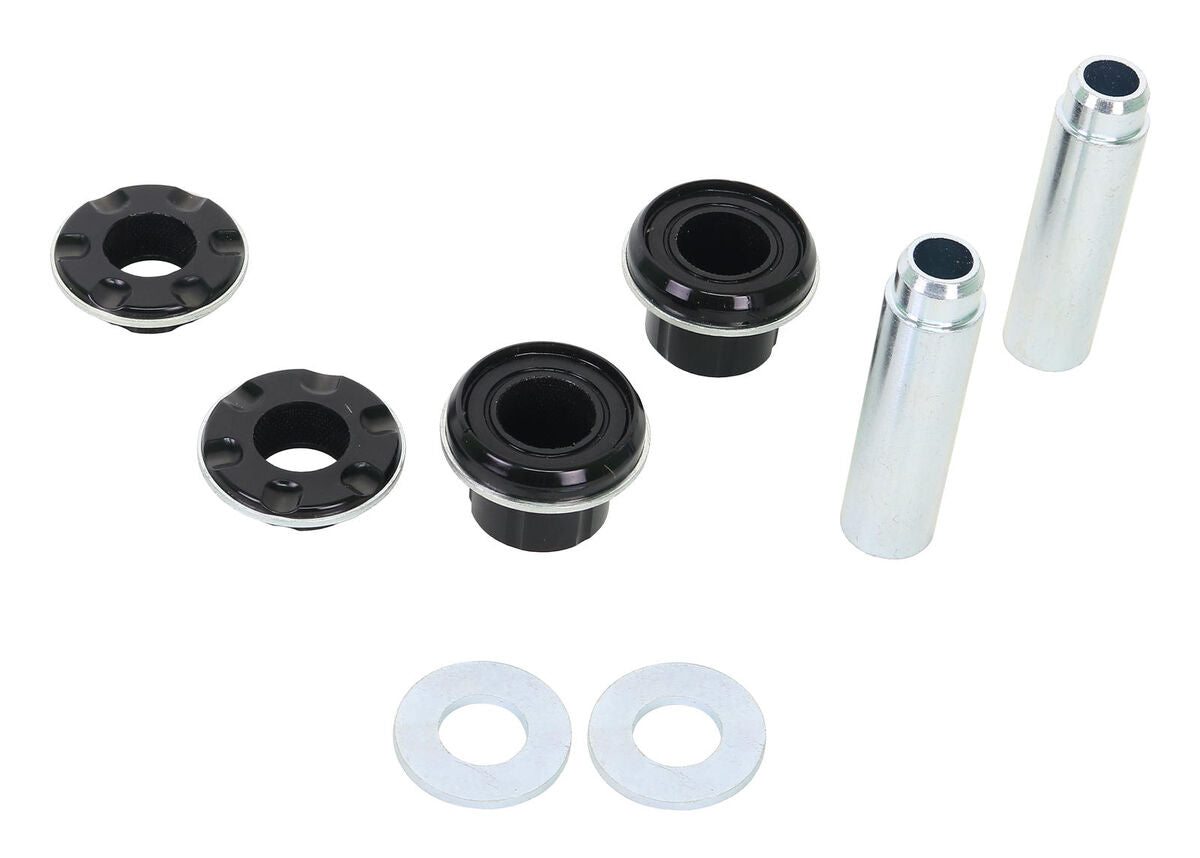

- Maximises grip and stability for better control; the perfect, complete upgrade. Includes: 4 Bushings, 2 Tubes & 2 Washers

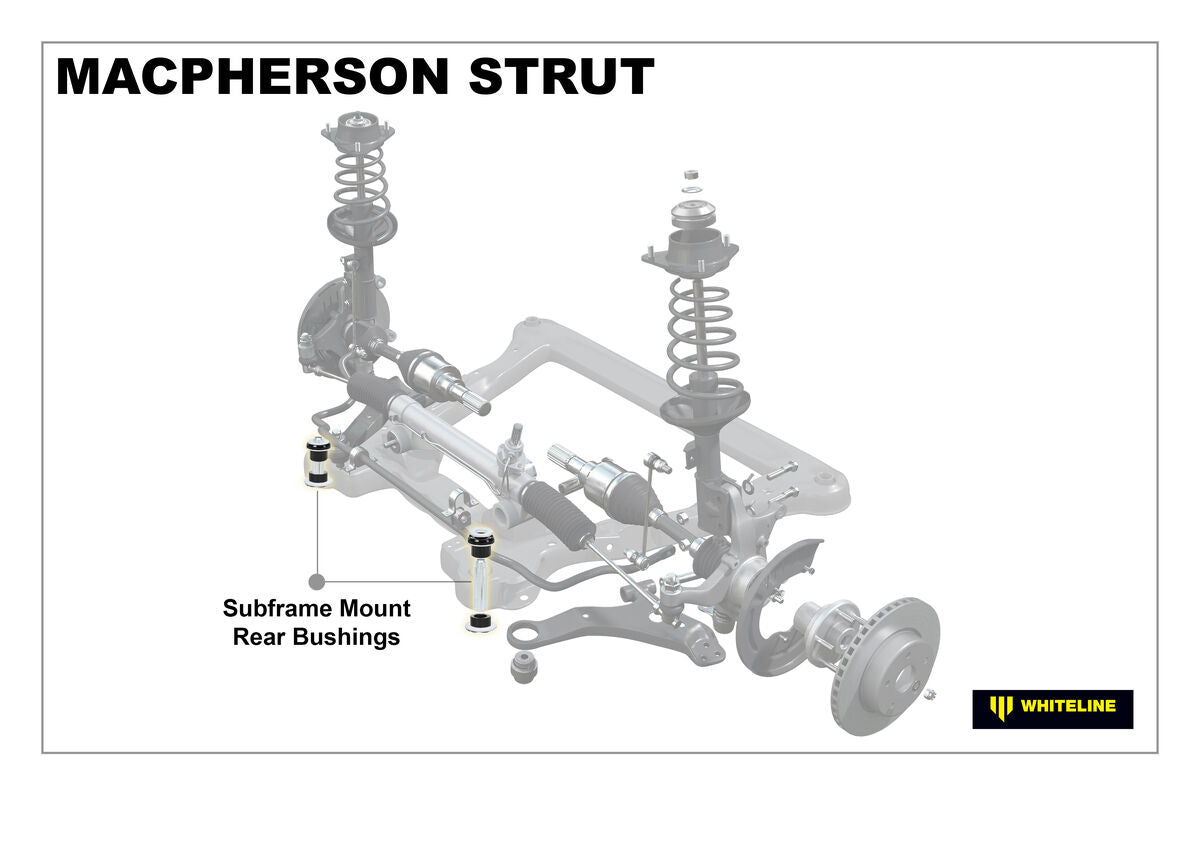

Benefit Note: The Whiteline kit replaces the rear bushings in the front subframe to dramatically reduce front cross member misalignment and movement which allows a more positive feel from the front end during cornering.

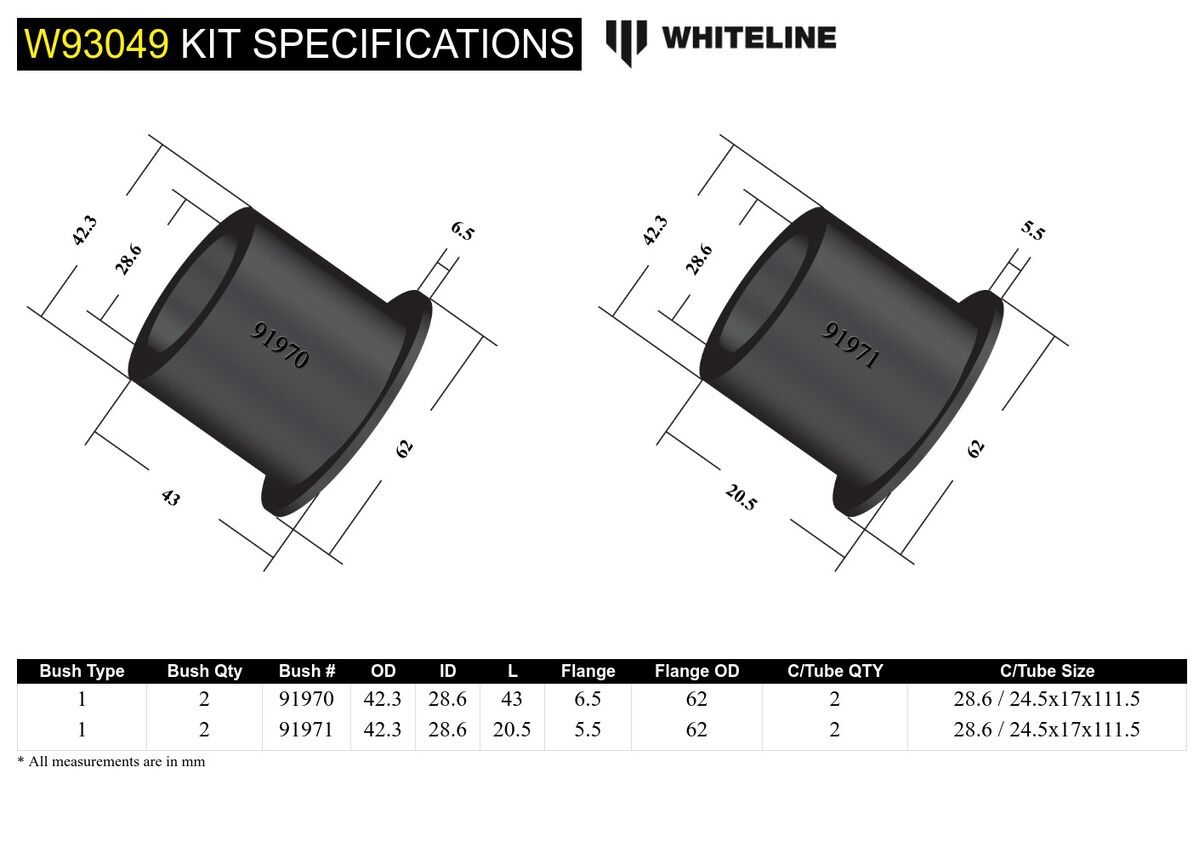

Kit Specifications
| Bush Type | 1 - Shackle Bushing | 1 - Shackle Bushing |
|---|---|---|
| Bush Quantity | 2 mm | 2 mm |
| OD (A) | 42.3 mm | 42.3 mm |
| ID (B) | 28.6 mm | 28.6 mm |
| Length (C) | 43 mm | 20.5 mm |
| Flange Thickness (D) | 6.5 mm | 5.5 mm |
| Flange OD (E) | 62 mm | 62 mm |
| C/Tube Quantity | 2 | 2 |
| C/Tube ODxIDxL | 28.6 / 24.5x17x111.5 mm | 28.6 / 24.5x17x111.5 mm |
Bushing Design Dimensions (mm)
| Bush Type | 1 | 1 |
|---|---|---|
| QTY | 2 | 2 |
| OD (A) | 42.3 | 42.3 |
| ID (B) | 28.6 | 28.6 |
| Length (C) | 43.0 | 20.5 |
| FL (D) | 6.5 | 5.5 |
| FLOD (E) | 62 | 62 |
| C/Tube Qty | 2 | 2 |
| C/Tube Size | 28.6 / 24.5x17x111.5 | 28.6 / 24.5x17x111.5 |
Packaged Weight and Dimensions
| Units | cm/kg | in/lbs |
|---|---|---|
| Weight | 1kg | 2.2lbs |
| Length | 10cm | 3.94" |
| Width | 26cm | 10.24" |
| Height | 16cm | 6.3" |
Misc. Product Information
| SKU | W93049 |
| Components Per | 4 Bushings, 2 Tubes, 2 Washers |
| Kits Required | 1 |
| Sub brand | Replacement |
| Product Note | Maximises grip and stability for better control; the perfect, complete upgrade. Includes: 4 Bushings, 2 Tubes & 2 Washers |
| EAN | 9319924463794 |
