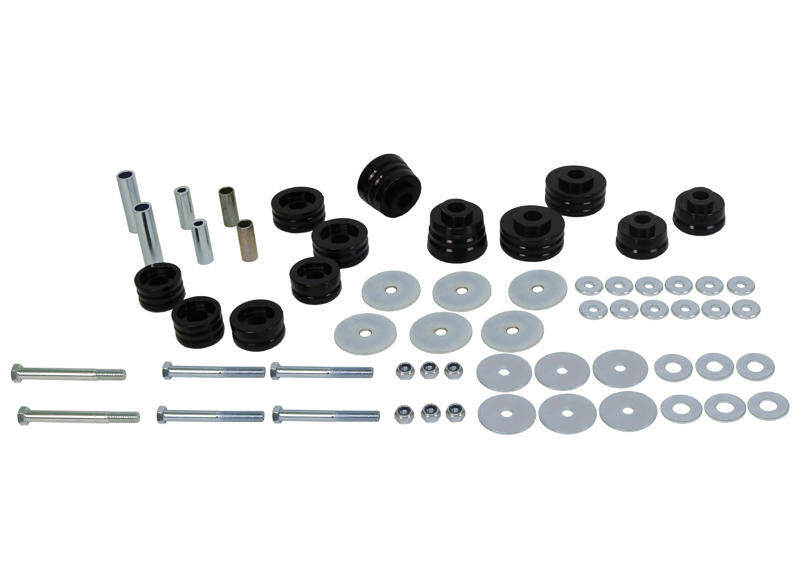

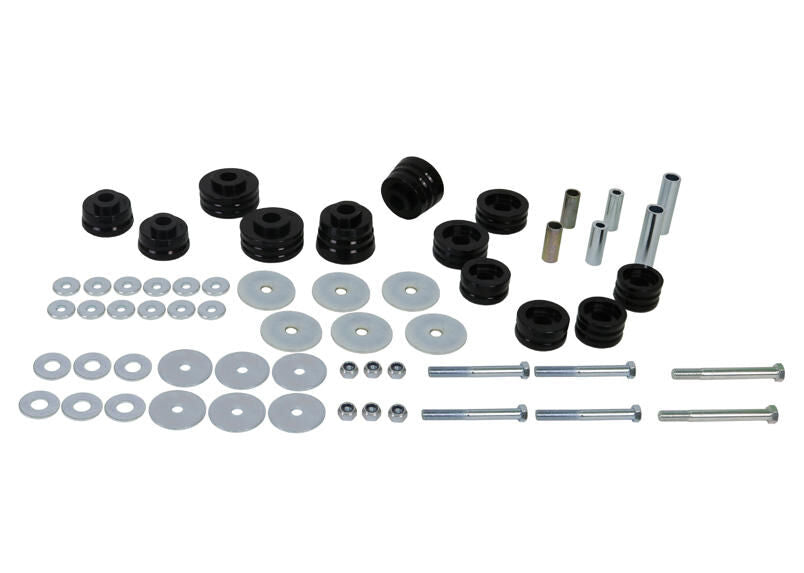

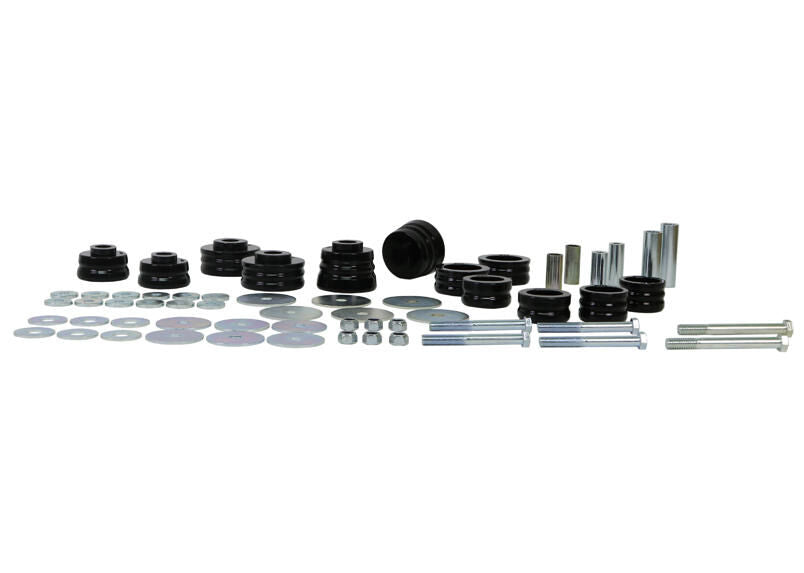

W93445 Whiteline Front and Rear Body Mount - Bushing Kit to Suit Ford Courier PE, PH and Mazda B Series UN | Genuine Whiteline Suspension Component

W93445 Whiteline Front and Rear Body Mount - Bushing Kit to Suit Ford Courier PE, PH and Mazda B Series UN | Genuine Whiteline Suspension Component

$505.00 AUD
$505.00 AUD
Sale Sold out
Flat $14.99 shipping Australia-wide.

✓ Authorised Volvo Penta Dealer · Marine & auto specialists · Ships Australia-wide

  • Maximises grip and stability for better control; the perfect, complete upgrade. Includes: 12 Bushings, 6 Tubes, 6 Bolts, 30 Washers & 6 Nuts

Benefit Note: Whiteline bushings are made tough and offer outstanding abrasion resistance, high load bearing capability (4WD's, utes and towing), flexibility, increased tensile strength and chemical resistance to oil, grease, ozone and weathering.


Kit Specifications

Bush Type 6 - Male/female Interconnecting Bushing 6 - Male/female Interconnecting Bushing 6 - Male/female Interconnecting Bushing 6 - Male/female Interconnecting Bushing 6 - Male/female Interconnecting Bushing 6 - Male/female Interconnecting Bushing
Bush Quantity 2 mm 2 mm 2 mm 2 mm 2 mm 2 mm
OD (A) 34.6 mm 47 mm 39.7 mm 34.6 mm 47 mm 39.7 mm
ID (B) 22 mm 25.4 mm 25.4 mm 22.2 mm 25.4 mm 25.4 mm
Length (C) 42.7 mm 46.6 mm 64 mm 33.3 mm 34 mm 38 mm
Flange Thickness (D) 33.2 mm 36.6 mm 54 mm 23.3 mm 22.5 mm 28.5 mm
Flange OD (E) 71.2 mm 87 mm 84 mm 64 mm 75 mm 59.3 mm
C/Tube Quantity 2 / 2 / 2 2 / 2 / 2 2 / 2 / 2 2 / 2 / 2 2 / 2 / 2 2 / 2 / 2
C/Tube ODxIDxL 22.2x16.2x63.5 / 25.4x18.2x66 / 25.4x19x90 mm 22.2x16.2x63.5 / 25.4x18.2x66 / 25.4x19x90 mm 22.2x16.2x63.5 / 25.4x18.2x66 / 25.4x19x90 mm 22.2x16.2x63.5 / 25.4x18.2x66 / 25.4x19x90 mm 22.2x16.2x63.5 / 25.4x18.2x66 / 25.4x19x90 mm 22.2x16.2x63.5 / 25.4x18.2x66 / 25.4x19x90 mm
Bushing Type 6 - Male/female Interconnecting Bushing
Bushing Type 6 - Male/female Interconnecting Bushing
Bushing Type 6 - Male/female Interconnecting Bushing
Bushing Type 6 - Male/female Interconnecting Bushing
Bushing Type 6 - Male/female Interconnecting Bushing
Bushing Type 6 - Male/female Interconnecting Bushing

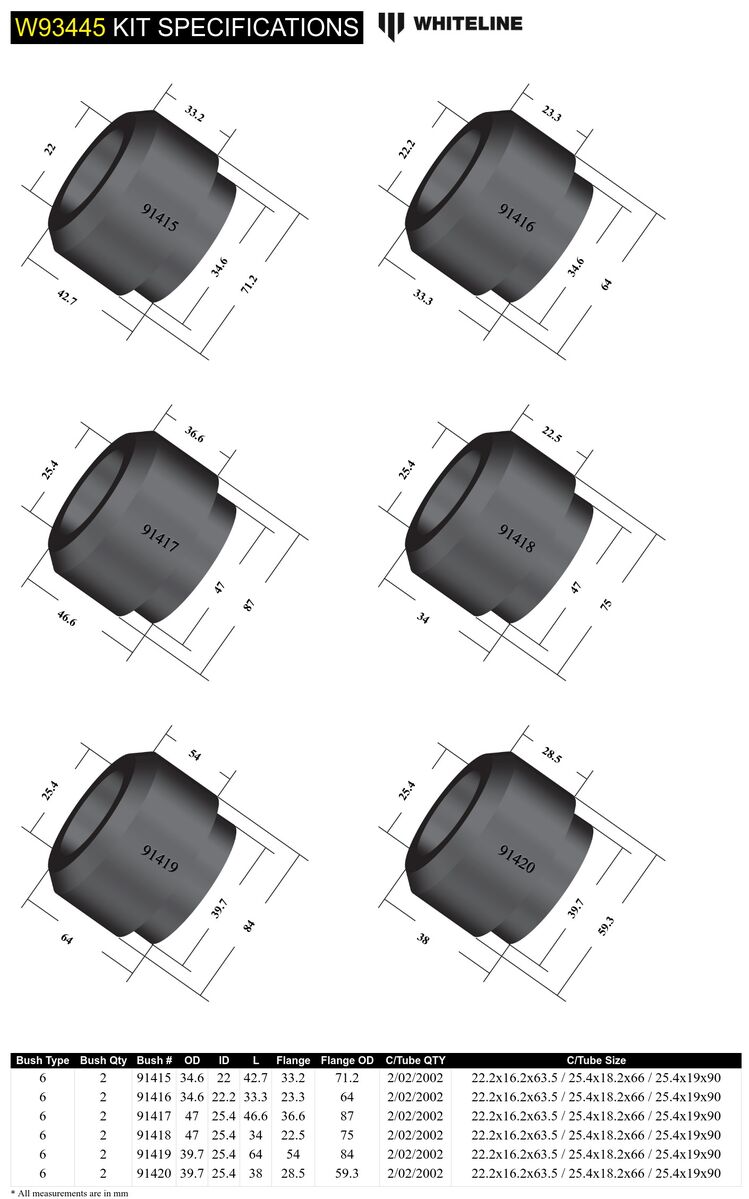

Bushing Design Dimensions (mm)

Bush Type 6 6 6 6 6 6
QTY 2 2 2 2 2 2
OD (A) 34.6 47 39.7 34.6 47 39.7
ID (B) 22 25.4 25.4 22.2 25.4 25.4
Length (C) 42.7 46.6 64.0 33.3 34.0 38.0
FL (D) 33.2 36.6 54 23.3 22.5 28.5
FLOD (E) 71.2 87 84 64 75 59.3
C/Tube Qty 2 / 2 / 2 2 / 2 / 2 2 / 2 / 2 2 / 2 / 2 2 / 2 / 2 2 / 2 / 2
C/Tube Size 22.2x16.2x63.5 / 25.4x18.2x66 / 25.4x19x90 22.2x16.2x63.5 / 25.4x18.2x66 / 25.4x19x90 22.2x16.2x63.5 / 25.4x18.2x66 / 25.4x19x90 22.2x16.2x63.5 / 25.4x18.2x66 / 25.4x19x90 22.2x16.2x63.5 / 25.4x18.2x66 / 25.4x19x90 22.2x16.2x63.5 / 25.4x18.2x66 / 25.4x19x90
Bushing Type 6

Packaged Weight and Dimensions

Units cm/kg in/lbs
Weight 4.7kg 10.36lbs
Length 40cm 15.75"
Width 10cm 3.94"
Height 20cm 7.87"

Misc. Product Information

More Information
SKU W93445
Components Per 12 Bushings, 6 Tubes, 6 Bolts, 30 Washers, 6 Nuts
Kits Required 1
Sub brand Replacement
Product Note Maximises grip and stability for better control; the perfect, complete upgrade. Includes: 12 Bushings, 6 Tubes, 6 Bolts, 30 Washers & 6 Nuts
EAN 9319924461134
