Aftermarket Yamaha 100HP 4-Stroke Service Kit (2002-04) | Sawley's Select Marine Parts

🔧 Product Description

Aftermarket replacement F100AET 100HP Major Service Kit - Kit / Reference: YAM-F100AET-2002-04

New aftermarket major service kit for Yamaha F100AET four-stroke outboards from the 2002-2004 application range.

⚙️ Key Features

• Complete major scheduled-maintenance kit for the listed Yamaha engine family

• Matched cooling, ignition, fuel, lubrication and corrosion-control components

• Individual service parts identified by OEM or verified cross-reference number

• Designed to simplify annual or hour-based scheduled maintenance

• Engine model and serial number must be confirmed before installation

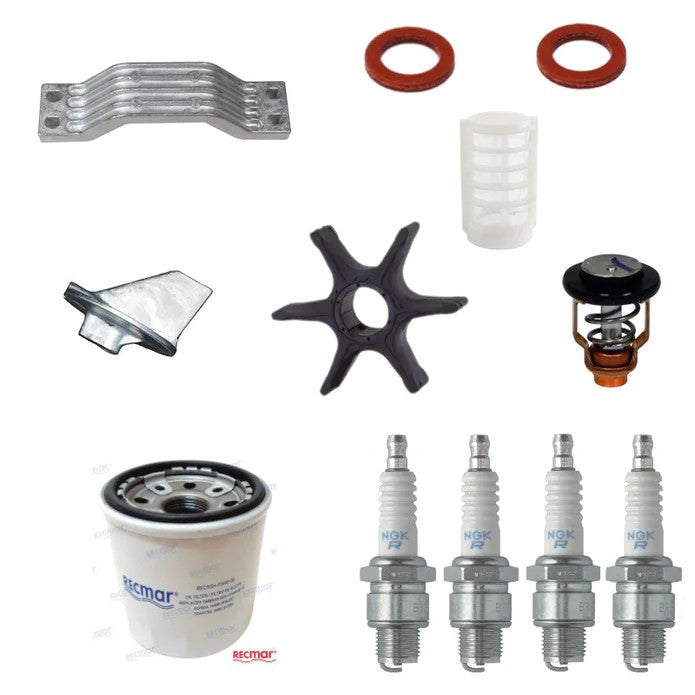

🧰 Kit / Assembly Contents

• 1 × Engine-oil filter - Yamaha P/N 5GH-13440-90 / 5GH-13440-71 service family

• 1 × Complete water-pump repair kit - Yamaha P/N 67F-W0078-00

• 4 × Spark plugs - NGK LFR5A-11

• 1 × Thermostat - Yamaha P/N 67F-12411-01

• 1 × Fuel strainer/filter - Yamaha P/N 61N-24563-10

• 1 × Fuel-filter O-ring - Yamaha P/N 93210-32738

• 2 × Gearcase drain-plug gaskets - Yamaha P/N 90430-08003 / 90430-08020 service family

• 1 × Engine-oil drain gasket - Yamaha P/N 90430-14M09

• 1 × Lower-unit anode - Yamaha P/N 6H1-45251-03

• 1 × Trim-tab anode - Yamaha P/N 67F-45371-00

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• Custom aftermarket kit assembled from the listed Yamaha F100AET service components

OEM / Related Numbers:

• 5GH-13440-90

• 5GH-13440-71

• 67F-W0078-00

• 67F-12411-01

• 61N-24563-10

• 93210-32738

• 90430-08003

• 90430-08020

• 90430-14M09

• 6H1-45251-03

• 67F-45371-00

• NGK LFR5A-11

Aftermarket / Verified Equivalents:

• Sawley's Select Marine Parts Yamaha F100AET kit

🚤 Compatibility

Commonly used on:

• Yamaha outboard scheduled-maintenance applications

Typically suits:

• Engine models:

• F100AET four-stroke

• HP Range: 100HP

• Year Range: 2002 - 2004

• Model / Serial Identification: Corrected model family is F100AET. Later 2005-2017 engines use a different service-kit configuration.

🔌 Function

This scheduled-maintenance kit groups the cooling, ignition, fuel, lubrication and corrosion-control components required for the listed engine family. Replacing the matched consumables together helps restore reliable starting, correct cooling-water flow, clean fuel and oil circulation, and leak-free drain and thermostat joints.

Common signs that service is due:

• The annual, 100-hour or manufacturer-specified service interval is due

• The engine's previous service history is unknown

• Cooling-water flow is weak or the engine runs hotter than normal

• Spark plugs are fouled, filters are restricted or starting quality has deteriorated

• Drain seals, pump components or sacrificial anodes show corrosion, wear or leakage

📦 Condition

• New aftermarket replacement service kit

• Brand new

• Supplied in original or equivalent packaging
