Yamaha 6H2 Carburettor and reed plate assembly | Genuine Used Part

🔧 Product Description

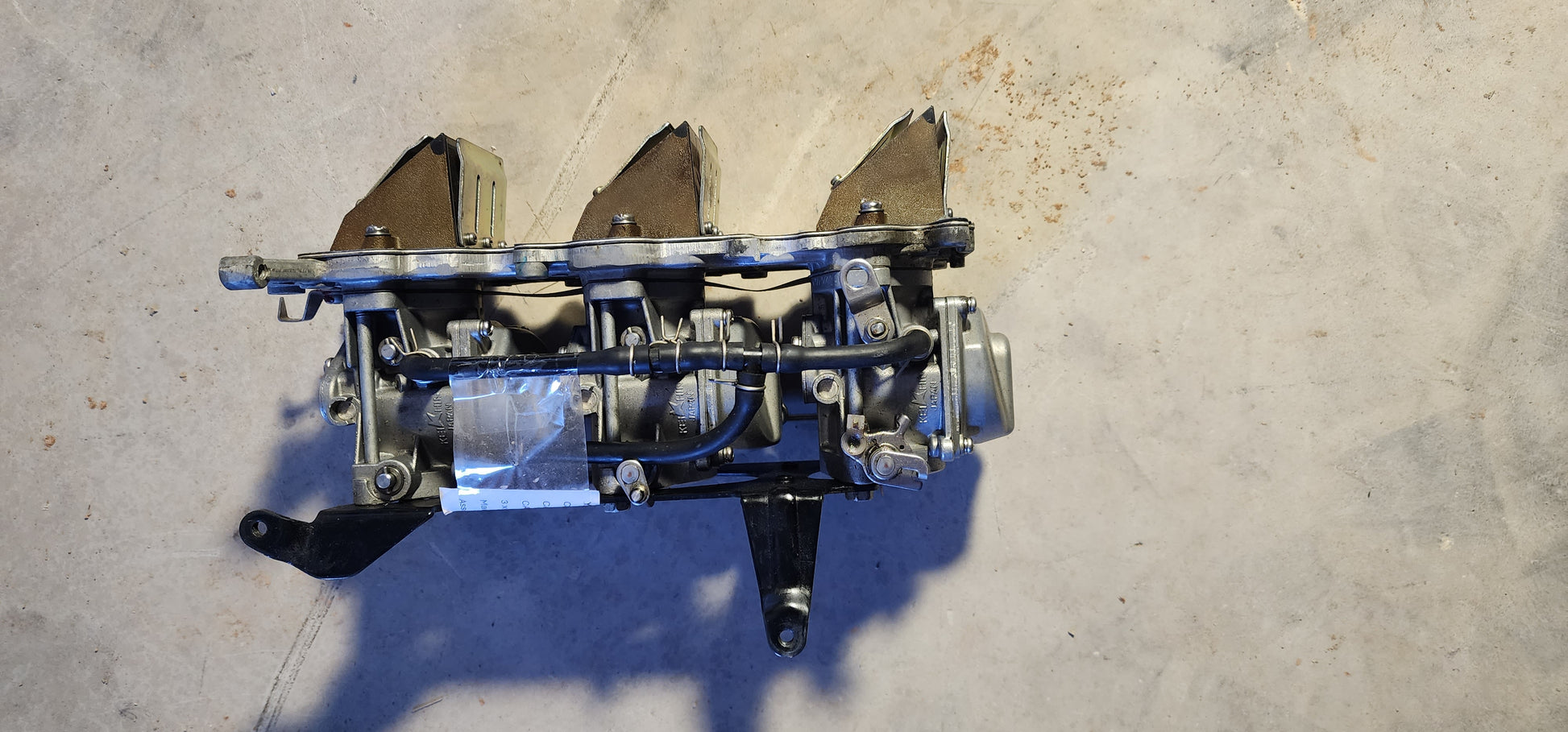

Genuine Yamaha Complete Carburettor, Reed Valve and Intake Manifold Assembly - Part Numbers: 6H2-14301-08-00 / 6H2-14302-08-00 / 6H2-14303-08-00

A genuine Yamaha complete intake and carburettor assembly for selected 60F 6H2 three-cylinder two-stroke outboards.

This assembly is supplied complete with all three factory carburettors, three reed-valve assemblies, the intake manifold and the connected throttle and synchronisation linkages. Supplying the components together helps preserve the original carburettor alignment, linkage relationship and intake configuration.

Included components

• Upper carburettor assembly No. 1 - 6H2-14301-08-00
• Centre carburettor assembly No. 2 - 6H2-14302-08-00
• Lower carburettor assembly No. 3 - 6H2-14303-08-00
• Three reed-valve assemblies - 6H2-13610-00-00
• Intake manifold - 6H3-13641-11-94
• Carburettor throttle, choke and synchronisation linkages as fitted

⚙️ Key Features

• Genuine Yamaha complete intake assembly
• Three matched carburettors supplied together
• Includes three reed-valve blocks and intake manifold
• Supplied assembled with the connected linkages
• Designed for Yamaha 60F 6H2 three-cylinder two-stroke outboards

🚤 Compatibility

Commonly used on

• Yamaha 60F 6H2 three-cylinder carburetted two-stroke outboards
• Yamaha oil-injected 60HP remote-control engine families using the -08 carburettor calibration

Typically suits

• Engine models:
• Yamaha 60FEO - model code 6H2
• Yamaha 60FETO - model code 6H2
• Yamaha P60TLHP - 1991 USA model
• Yamaha 60F 60HP electric-start, remote-control, manual-tilt models
• Yamaha 60F 60HP electric-start, remote-control, power-trim-and-tilt models
• Yamaha 60F 6H2 engines using carburettors 6H2-14301-08-00, 6H2-14302-08-00 and 6H2-14303-08-00
• HP Range: 60HP
• Engine Type: Yamaha 849cc three-cylinder carburetted two-stroke outboard
• Fuel System: Three individual carburettors with oil injection
• Year Range: Approximately 1988-1991 for the supplied -08 carburettor calibration

🔌 Function

The three carburettors independently meter fuel and air for the upper, centre and lower cylinders. Their throttle plates are joined by the supplied linkage so all three carburettors open together and remain correctly synchronised.

The intake manifold distributes the metered mixture to the crankcase passages. Each reed-valve assembly operates as a one-way intake valve, allowing the fuel-and-air charge to enter its cylinder's crankcase while preventing the mixture from being forced back through the carburettor.

⚠️ Common Signs of Failure

• Engine is difficult to start or requires excessive choke
• Unstable idle, stalling or uneven operation between cylinders
• Hesitation, bogging or reduced power during acceleration
• Fuel leaks or overflows from one or more float chambers
• Blocked jets or internal passages cause lean cylinder operation
• Carburettor linkages are worn or no longer synchronised
• Reed petals are chipped, bent or no longer sealing flat
• Fuel mist or mixture spits back through a carburettor
• Intake manifold is cracked, warped or leaking around the gasket surfaces
• One cylinder receives noticeably different fuel delivery from the others

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 6H2-14301-08-00 supplied upper carburettor reference
• 6H2-14302-08-00 supplied centre carburettor reference
• 6H2-14303-08-00 supplied lower carburettor reference
• 6H3-13641-11-94 → Supersedes 6H3-13641-10-94
• 6H3-13641-10-94 earlier intake-manifold reference

OEM / Related Numbers

• 6H2-14301-08-00
• 6H2-14302-08-00
• 6H2-14303-08-00
• 6H2-13610-00-00
• 6H3-13641-11-94
• 6H3-13641-10-94
• 688-W0004-00-00 related reed set
• 6H3-13621-00-00 related reed-valve seat gasket
• 6H2-14947-02-00 related main nozzle
• 6H3-14590-02-00 related needle-valve assembly
• 6G1-14985-00-00 related carburettor float
• 6G1-14984-00-00 related float-chamber gasket

Aftermarket / Verified Equivalents

• Rareelectrical / ComponentsPlus: 333SSCR stainless reed-petal set replacing 6H2-13610-00-00
• Yamaboya: aftermarket reed-valve assembly replacing 6H2-13610-00-00
• Yalume Marine: aftermarket reed-valve assembly replacing 6H2-13610-00-00
• No aftermarket complete three-carburettor and manifold assembly equivalent

📦 Condition

• Genuine used Yamaha assembly
• Supplied complete with three carburettors, three reed-valve assemblies, intake manifold and fitted linkages
• Removed from running engine where applicable
• In good working condition unless otherwise stated
