128170-13530 Aftermarket Yanmar 3-Bolt Exhaust Elbow 1GM/10-2GM/20 | Sawley's Select Marine Parts

128170-13530 Aftermarket Yanmar 3-Bolt Exhaust Elbow 1GM/10-2GM/20 | Sawley's Select Marine Parts

$500.00 AUD
$500.00 AUD
Sale Sold out
Shipping calculated at checkout.

✓ Authorised Volvo Penta Dealer · Marine & auto specialists · Ships Australia-wide

🔧 Product Description

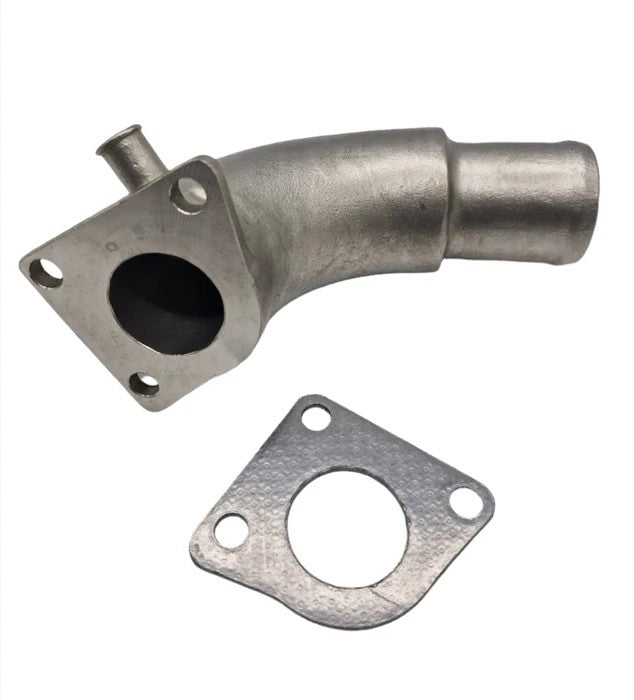

Aftermarket Yanmar 3-Bolt Exhaust Elbow 1GM/10-2GM/20 - Part Number: 128170-13530


A cast AISI 316 stainless-steel three-bolt mixing elbow replacing Yanmar 128170-13530 on 1GM, 1GM10, 2GM and 2GM20 engines. The assembly includes the correct flange gasket.


⚙️ Key Features


• Cast AISI 316 stainless-steel construction

• Replaces Yanmar 128170-13530

• Three-bolt engine flange

• For 1GM/1GM10 and 2GM/2GM20 engines

• Includes gasket 128170-13200/13201


🔄 Supersession & Cross Reference


OEM Supersession Chain:


• GMS20 → Replaces Yanmar 128170-13530


OEM / Related Numbers:


• 128170-13530

• 128170-13200

• 128170-13201

• HDI GMS20


Aftermarket / Verified Equivalents:


• HDI Marine: GMS20


Included Components:


• Mixing elbow - Part Number: 128170-13530 replacement

• Mounting gasket - Part Number: 128170-13200 / 128170-13201


🚤 Compatibility


Commonly used on:


• Yanmar 1GM/2GM three-bolt wet-exhaust systems


Typically suits:


• Engine models:

• Yanmar 1GM

• Yanmar 1GM10

• Yanmar 2GM

• Yanmar 2GM20

• Yanmar 2GM20F


• Material: cast AISI 316 stainless steel

• Water Inlet: approximately 17mm

• Exhaust Outlet: approximately 45mm


🔌 Function


The elbow turns exhaust from the small Yanmar diesel and injects raw water before discharge into the exhaust hose.


Common signs of failure:


• External corrosion, cracking or pin-hole leakage

• Internal carbon, rust or salt restriction

• Cooling water entering the manifold, turbocharger or cylinders

• Steam, reduced cooling-water discharge or an abnormally hot exhaust hose

• Loss of power caused by excessive exhaust back-pressure


📦 Condition


• Brand new aftermarket replacement part

• New and unused

• Supplied in manufacturer or equivalent protective packaging
