128370-13610 Aftermarket Yanmar Mixing-Elbow Riser Kit HDI GMKIT | Sawley's Select Marine Parts

128370-13610 Aftermarket Yanmar Mixing-Elbow Riser Kit HDI GMKIT | Sawley's Select Marine Parts

$770.00 AUD
$770.00 AUD
Sale Sold out
Shipping calculated at checkout.

✓ Authorised Volvo Penta Dealer · Marine & auto specialists · Ships Australia-wide

🔧 Product Description

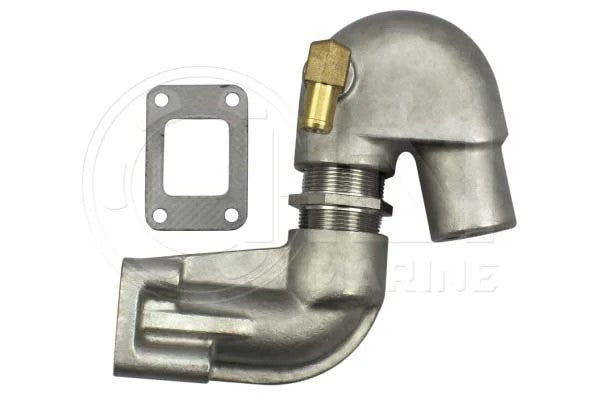

Aftermarket Yanmar Mixing-Elbow Riser Kit HDI GMKIT - Part Number: 128370-13610


A complete cast AISI 316 stainless-steel GM/HM/YM exhaust kit replacing the original Yanmar U-bend and mixing-elbow families. It includes the lower bend, upper mixer, threaded connector, water hose barb and mounting gasket.


⚙️ Key Features


• Complete stainless-steel GM/HM/YM exhaust package

• Replaces eight Yanmar elbow references

• Includes lower bend, upper mixer, coupler, water fitting and gasket

• For 1GM through 3GM/3HM and early YM applications

• Removable threaded mixer simplifies inspection and cleaning


🔄 Supersession & Cross Reference


OEM Supersession Chain:


• GMKIT → Replaces 128370-13600, 128370-13610, 128270-13600 and 124070-13520

• GMKIT → Also replaces 104214-13521, 104214-13531 and 128990-13520


OEM / Related Numbers:


• 128370-13600

• 128370-13610

• 128270-13600

• 124070-13520

• 104214-13521

• 104214-13531

• 128990-13520

• 104214-13580

• 124070-13300

• 128370-13201


Aftermarket / Verified Equivalents:


• HDI Marine: GMKIT


Included Components:


• Upper mixing elbow - HDI GM

• Lower exhaust bend - HDI GML

• Threaded coupler - Part Number: 104214-13580 / HDI GMN

• Bronze water hose barb - Part Number: 124070-13300 / HDI GMPIPE

• Mounting gasket - Part Number: 128370-13201 / HDI GGML


🚤 Compatibility


Commonly used on:


• Yanmar GM/HM/YM threaded wet-exhaust systems


Typically suits:


• Engine models:

• Yanmar 1GM

• Yanmar 1GM10

• Yanmar 2GM

• Yanmar 2GM20

• Yanmar 2GM20F

• Yanmar 2GM30

• Yanmar 2GM30F

• Yanmar 3GM

• Yanmar 3GMD

• Yanmar 3GM30

• Yanmar 3GM30F

• Yanmar 3HM

• Yanmar 3HM35

• Yanmar 3HM35F

• Yanmar 2YM15

• Yanmar 3YM20

• Yanmar 3YM30

• Yanmar YSM12


• Mixer Water Inlet: 3/8 in pipe thread

• Exhaust Outlet: 2 in OD

• Mixer Internal Thread: 1-1/4 BSPT


🔌 Function


The kit routes exhaust through the lower bend and introduces raw water in the removable upper mixing elbow before discharge.


Common signs of failure:


• Exhaust-gas or cooling-water leakage after assembly

• Restricted exhaust flow or excessive back-pressure

• Insufficient cooling-water injection into the wet exhaust

• Corrosion or pitting at the mating flanges

• Incorrect alignment, clamp engagement or gasket compression


📦 Condition


• Brand new aftermarket replacement part

• New and unused

• Supplied in manufacturer or equivalent protective packaging
