HOT1KIT Aftermarket Yanmar 6LP/6LPA Cast 316 Stainless Steel Exhaust Mixing-Elbow Kit | Sawley's Select Marine Parts

🔧 Product Description

Aftermarket Yanmar 6LP/6LPA Cast 316 Stainless Steel Exhaust Mixing-Elbow Kit - Part Number: HOT1KIT

A complete AISI 316 stainless-steel exhaust kit for Yanmar 6LP and 6LPA engines. It replaces the original HOT1 dry bend and VB mixing-elbow system and includes the matched clamps, insulation, shield and gaskets.

⚙️ Key Features

• Complete 6LP/6LPA exhaust package

• Includes dry riser, wet mixer, clamps, blanket and shield

• Replaces 119778-13300/13301 and 119773-13500/13501/13510

• Removable mixer allows cleaning

• Designed for the complete 6LP engine family

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• HOT1 → Replaces 119778-13300 and 119778-13301

• VB → Replaces 119773-13500, 119773-13501 and 119773-13510

• VBC → Replaces 119773-13300

OEM / Related Numbers:

• HOT1KIT

• 119778-13300

• 119778-13301

• 119773-13500

• 119773-13501

• 119773-13510

• 119773-13300

• 119778-13310

• 119773-13250

Aftermarket / Verified Equivalents:

• HDI Marine: HOT1KIT

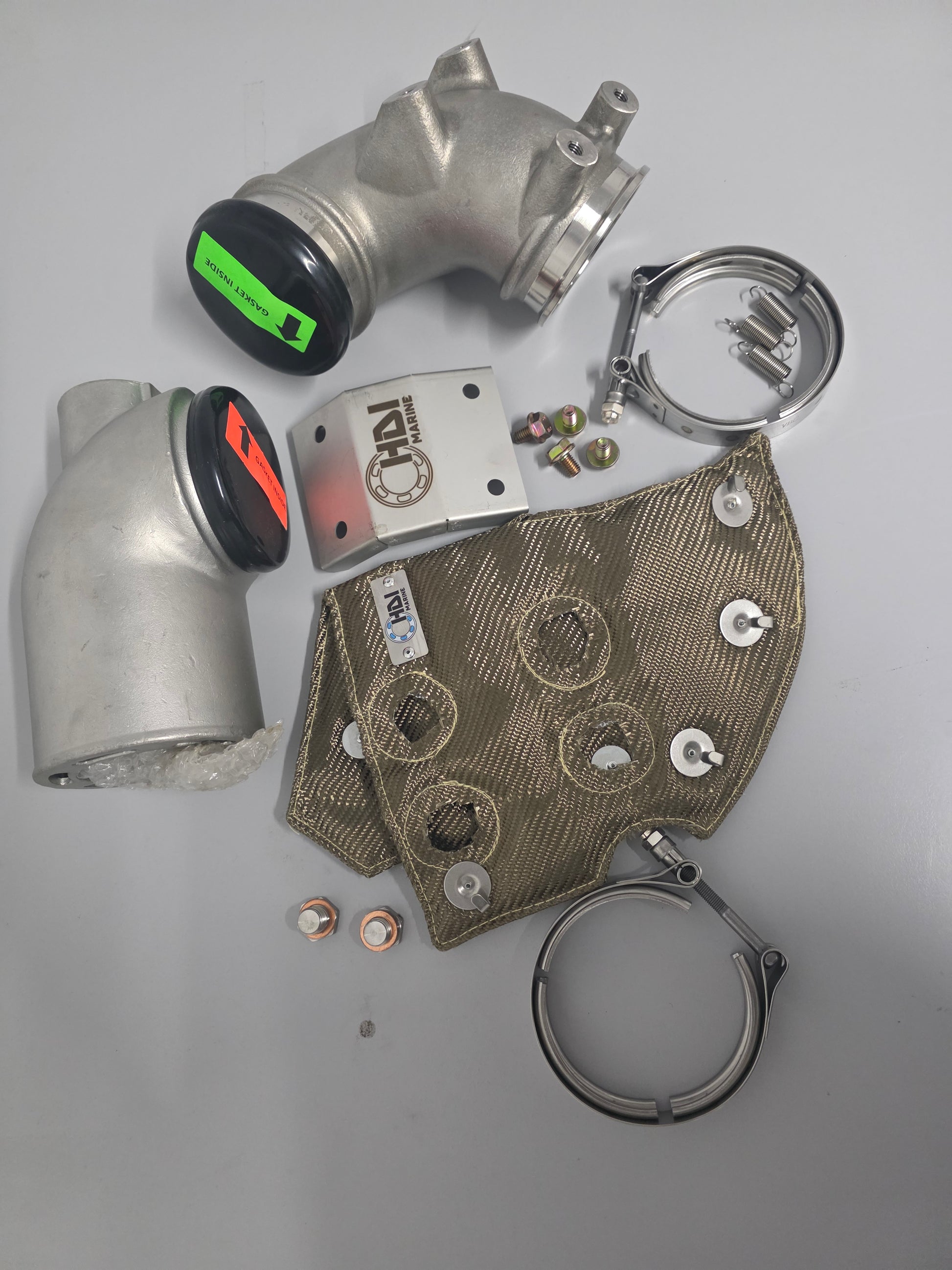

Included Components:

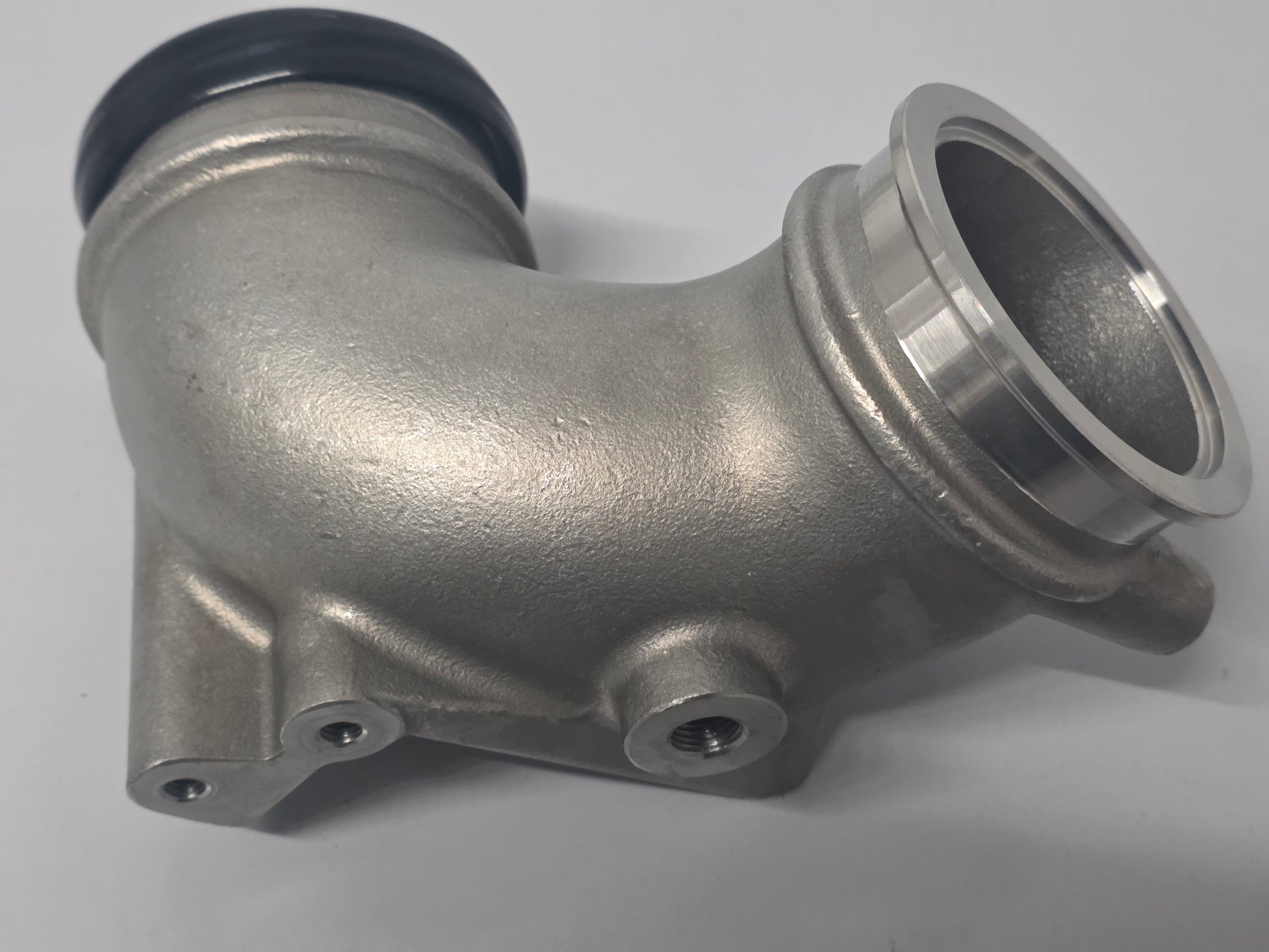

• Dry exhaust riser - Part Number: 119778-13300 or 119778-13301 / HDI HOT1

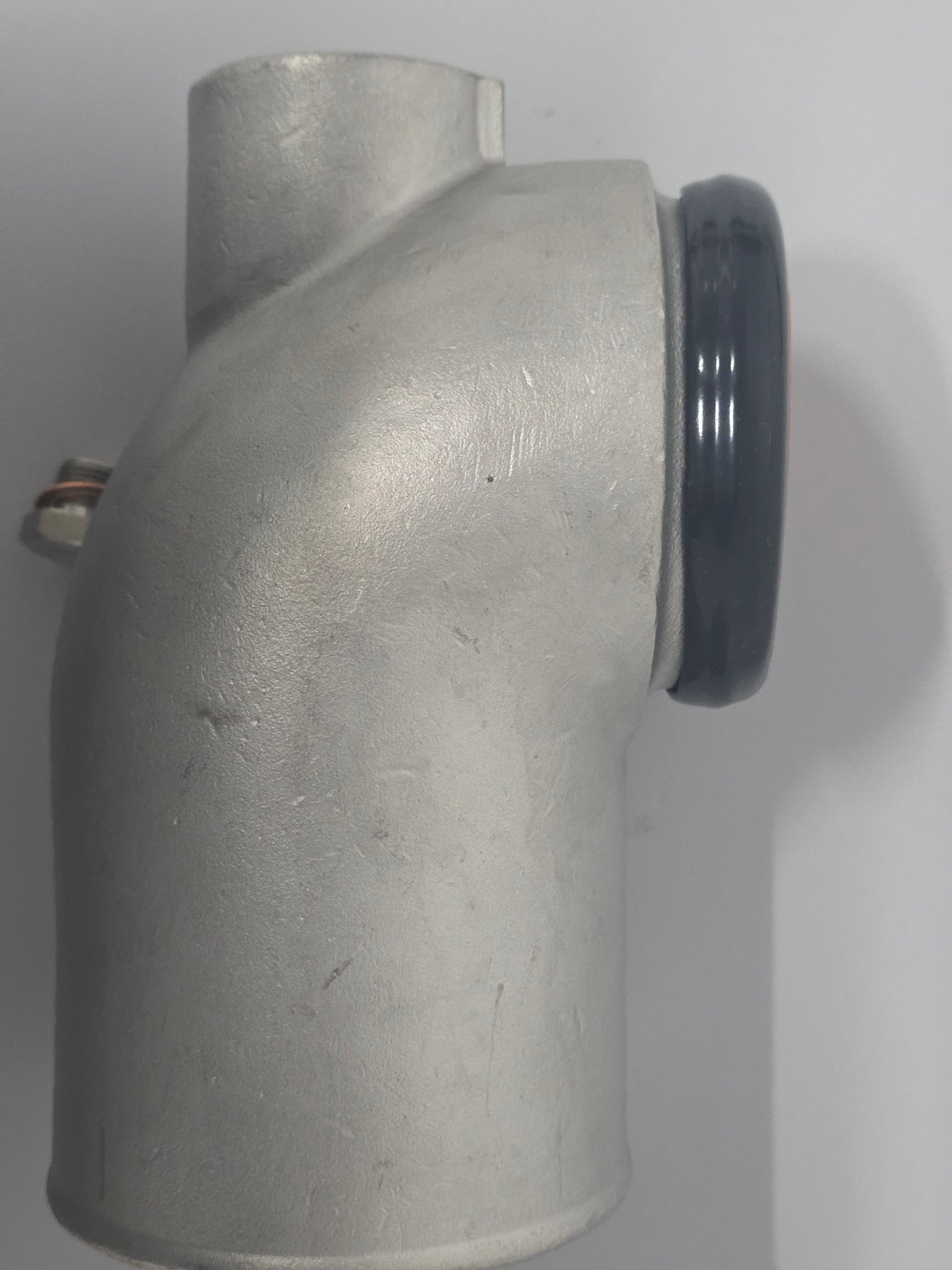

• Mixing elbow - Part Number: 119773-13500, 119773-13501 or 119773-13510 / HDI VB

• 2 × V-band clamps - Part Number: 119773-13300 / HDI VBC

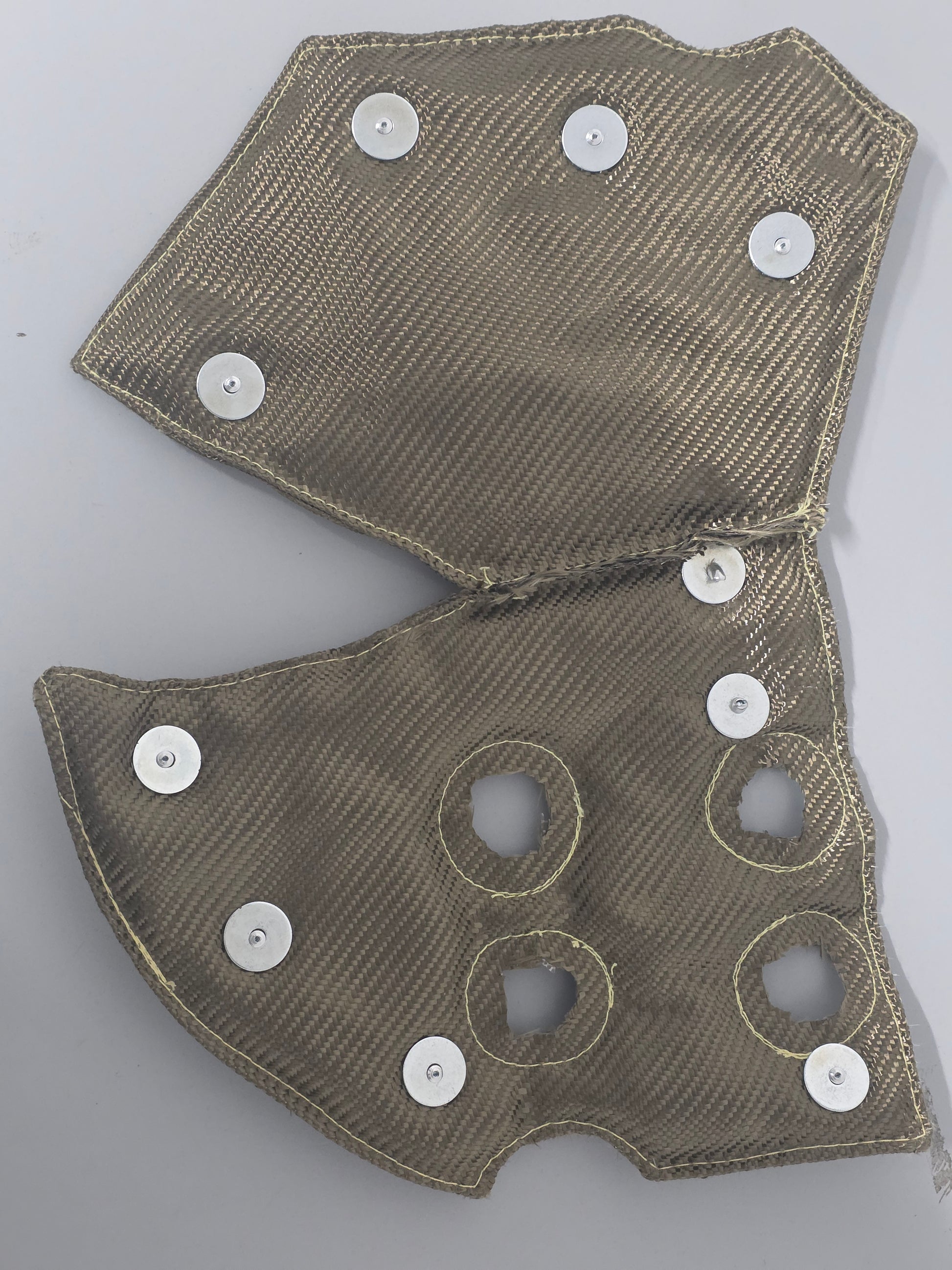

• Insulation blanket - Part Number: 119778-13310 / HDI MAT1

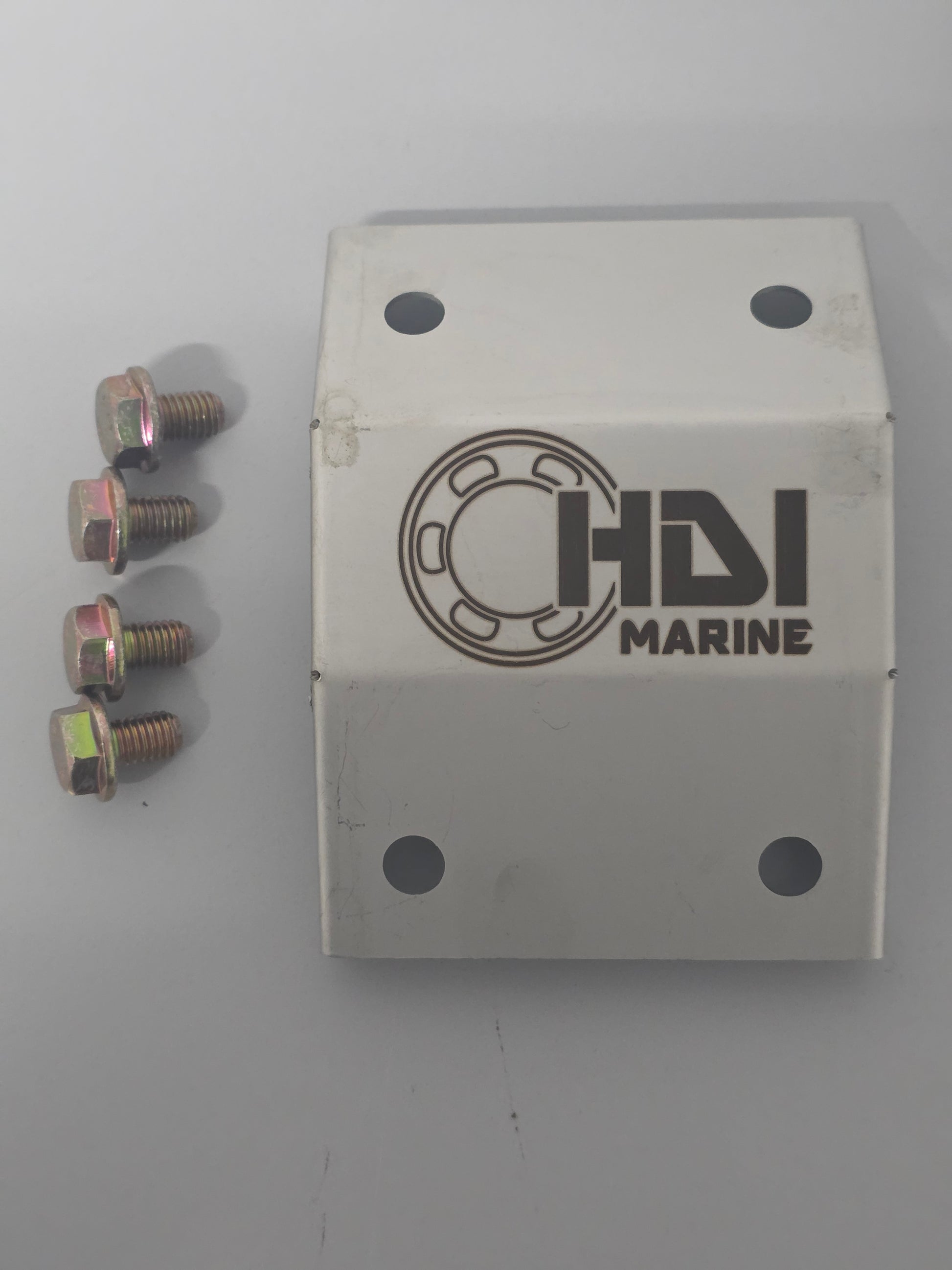

• Stainless heat shield - HDI SHIELD1

• 2 × turbo/exhaust gaskets - Part Number: 119773-13250

🚤 Compatibility

Commonly used on:

• Yanmar 6LP/6LPA dry-riser and wet-mixer exhaust systems

Typically suits:

• Engine models:

• Yanmar 6LP-DTE

• Yanmar 6LP-STE

• Yanmar 6LPA-DTP

• Yanmar 6LPA-DTZE

• Yanmar 6LPA-DTZP

• Yanmar 6LPA-STP

• Yanmar 6LPA-STP2

• Yanmar 6LPA-STZE

• Yanmar 6LPA-STZP

• Dry-Riser Flange: approximately 89mm

• Dry-Riser Bore: approximately 72mm

• Mixer Outlet: 4 in

🔌 Function

The kit routes dry turbo exhaust through the insulated riser and injects cooling water in the removable VB mixer.

Common signs of failure:

• Exhaust-gas or cooling-water leakage after assembly

• Restricted exhaust flow or excessive back-pressure

• Insufficient cooling-water injection into the wet exhaust

• Corrosion or pitting at the mating flanges

• Incorrect alignment, clamp engagement or gasket compression

📦 Condition

• Brand new aftermarket replacement part

• New and unused

• Supplied in manufacturer or equivalent protective packaging
