🔧 Product Description
Z195 Raymarine RotaVecta Transducer supplied with 20m (65’) Cable - Part Number: Z195
Compact wind speed and direction sensor for power boats
Model: Includes 20-metre (65-foot) interconnect cable.
Overview

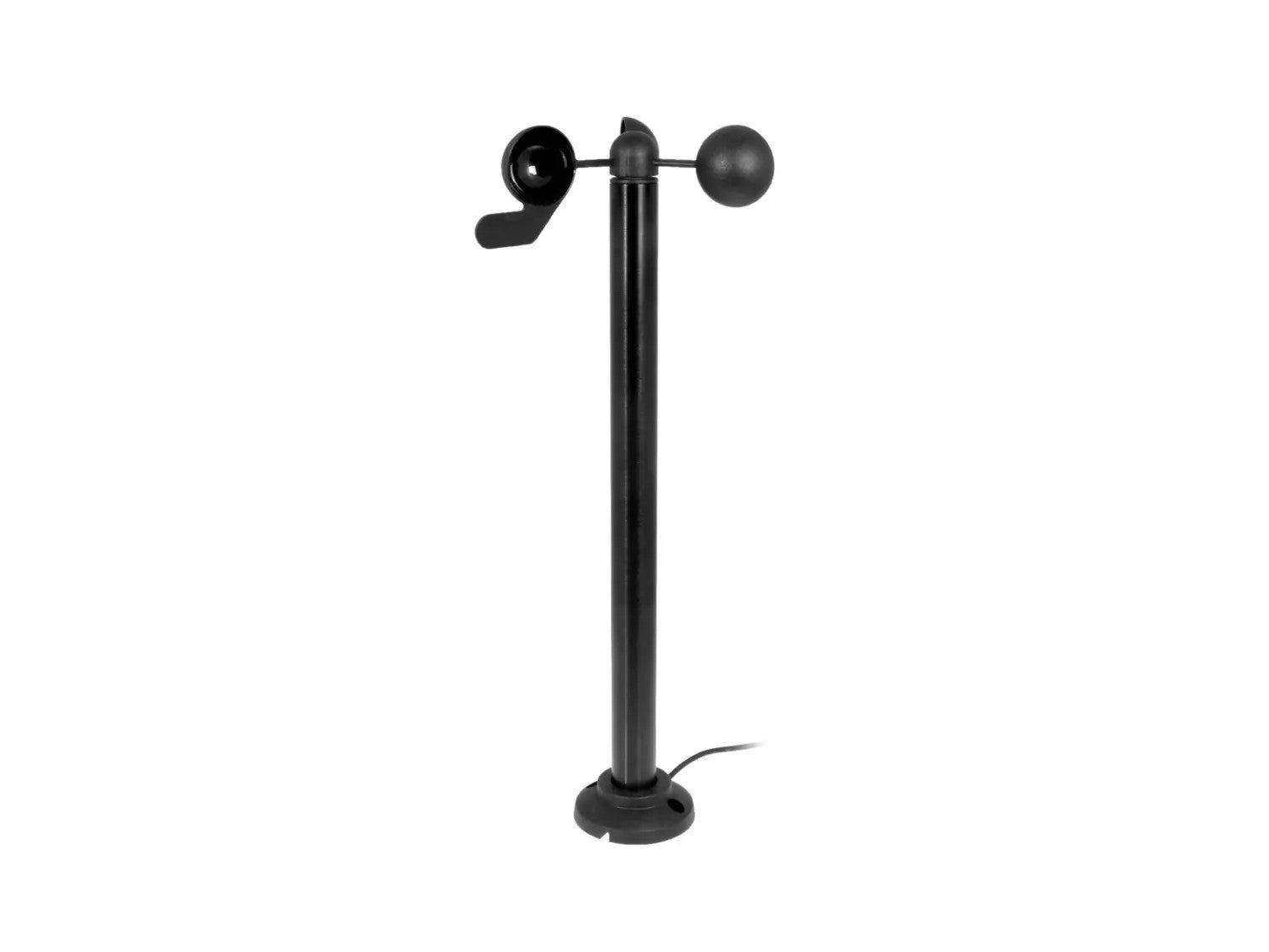

The Rotavecta wind transducer is a compact sensor providing accurate measurement of relative wind speed and direction for powerboat applications.
When combined with other sensors like boat speed and compass, the masthead transducer provides the necessary wind information to calculate true wind speed, true direction and many other advanced data items.
The innovative design of the Rotavecta transducer allows it to measure both wind speed and direction with a single rotating sensor. The compact footprint allows it to be installed on crowded masts or hardtops.
- Durable anodized aluminium and UV-stabilised plastic construction
- Mounting block and interconnect cable included
- Compatible with i60 Wind, iTC-5, ST60+ and ST60 series instruments
- 20-metre (65-foot) interconnect cable included
Genuine Raymarine product for the Australian market, with Australian warranty support.
📏 Specifications
| Physical | |
|---|---|
| Dimensions | Height (Surface mount): 385 mm (15.2 in), Height (Including rail clamp): 426 mm (16.8 in), Cup rotation diameter: 187 mm (7.4 in), Cable length: 20 m (65.6 ft) |
| Weight | Boxed: 1.2 Kg (2.6 lbs), Surface mount: 0.68 Kg (1.5 lbs), Rail mount: 0.77 Kg (1.7 lbs) |
| Conformance | |
| Standards | EN 60945:2002, EMC Directive 2004/108/EC, Australia and New Zealand: C-Tick, Compliance Level 2 |
📦 What's in the box
- Rotavecta assembly (including 20 m / 65.6 ft. cable)
- Fixings x 2
- Retaining ring
- Nut
- Seal
- Packing pieces x 2
- Rail clamp
- Grub screw
- Documentation
✅ Condition
- Brand new genuine product
- Supplied in original packaging
- Full Australian manufacturer warranty
