🔧 Product Description

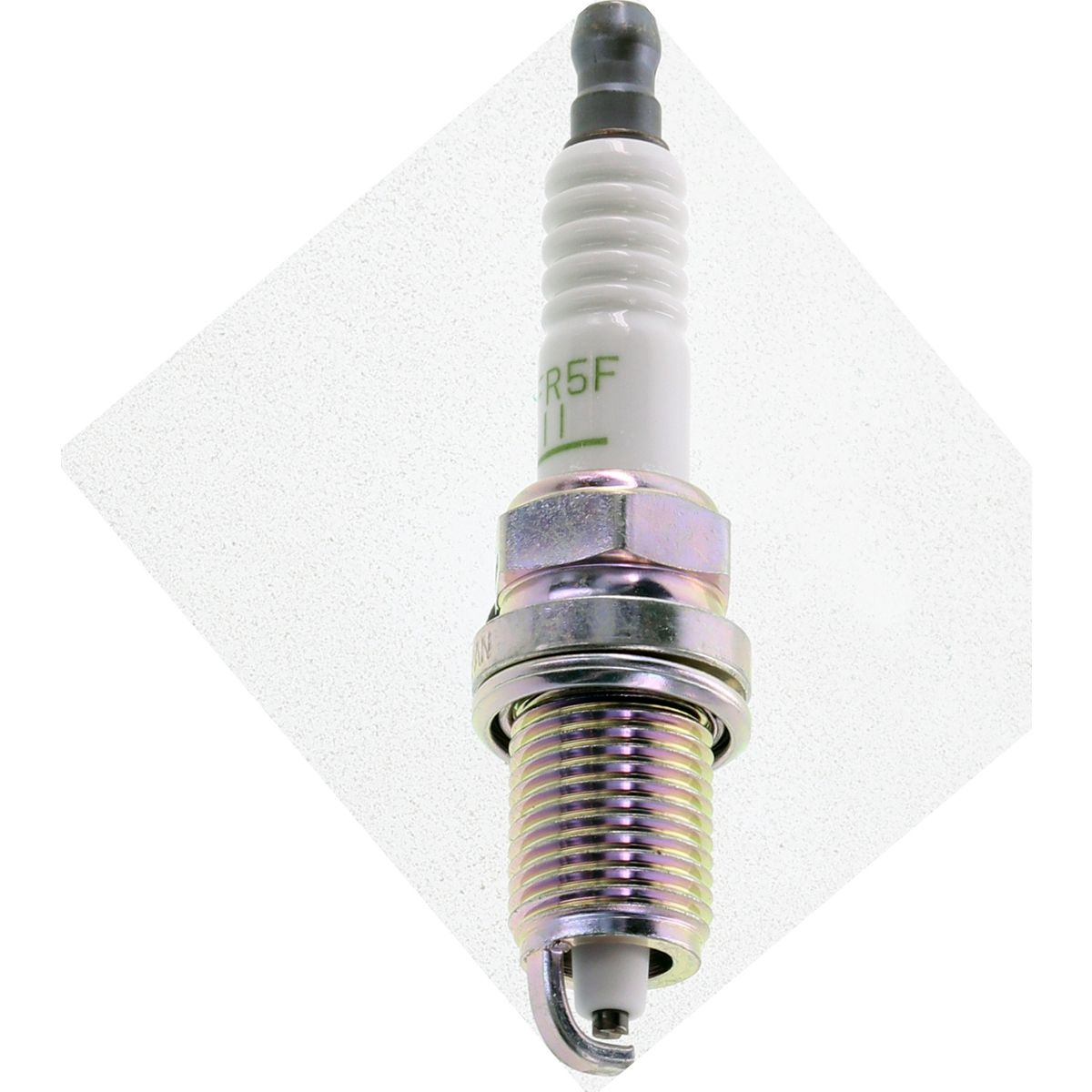

NGK STD V-Groove Resistor Spark Plug – Part Number: ZFR5F-11

Spark plugs are a critical engine component, providing the spark that ignites the air-fuel mixture that drives an engine. NGK spark plugs feature trivalent plating – a silver/chrome-coloured finish on the threads – for corrosion resistance against moisture and chemicals, and are designed to meet or exceed OE standards.

⚙️ Key Features

• Standard nickel centre electrode
• Trivalent metal plating provides superior anti-corrosion and anti-seizing properties
• Corrugated ribs reduce the risk of flashover
• Pure alumina silicate ceramic insulator, providing superior strength and better heat transfer
• Copper core aids in heat removal
• Triple seals prevent leakage

📏 Specifications

• NGK stock number: 2262
• Thread: 14 mm
• Reach: 19 mm (3/4 in)
• Hex: 16 mm (5/8 in)
• Seat: Gasket
• Terminal: Solid
• Type: ISO Extended Projection Wide Gap

🚘 Application

Listed in NGK's application charts for automotive vehicles.

• Acura CL (1999-1997) – 4-10 per engine
• Acura CL (2003-2001) – 4-10 per engine
• Acura EL (2000-1997) – 4-10 per engine
• Acura Integra (2001-1992) – 4-10 per engine
• Acura MDX (2002-2001) – 4-10 per engine
• Acura TL (2003-1999) – 4-10 per engine
• Chrysler 200 (2014-2011) – 4-10 per engine
• Chrysler Sebring (2007) – 4-10 per engine
• Chrysler Sebring (2010-2009) – 4-10 per engine
• Dodge Avenger (2014-2008) – 4-10 per engine
• Dodge Caliber (2012-2007) – 4-10 per engine
• Dodge Dakota (2007-2000) – 4-10 per engine
• Dodge Journey (2017-2009) – 4-10 per engine
• Dodge Ram 2500 (1996-1994) – 4-10 per engine
• Dodge Ram 3500 (1996-1994) – 4-10 per engine
• Honda Accord (2002-1990) – 4-10 per engine
• Honda Civic (2000-1992) – 4-10 per engine
• Honda Civic del Sol (1997-1993) – 4-10 per engine
• Honda CR-V (1998-1997) – 4-10 per engine
• Honda Odyssey (2004-1995) – 4-10 per engine
• Honda Pilot (2005-2003) – 4-10 per engine
• Honda Prelude (1996-1990) – 4-10 per engine
• Hyundai Elantra (2012-2007) – 4-10 per engine
• Isuzu Oasis (1999-1996) – 4-10 per engine
• Jeep Compass (2017-2007) – 4-10 per engine

That is the 25 most common of 37 applications NGK's charts list for this plug – ask us to check yours.

🔄 Supersession & Cross Reference

NGK's cross-reference tables list this plug against these part numbers.

• Champion: 318, 318C2, 318S, 434, 434C2, 435, 436, 436S and 9 more
• DENSO: 3131, 3132, 3133, 3311, KJ16CR-11, KJ16CR-L11, KJ16CR-U11, KJ20CR11
• Bosch: 7562, 7962, FR8LCX+
• ACDelco: 93180485
• Beck Arnley: 1765224
• Motorcraft: 1Y0G

📦 Condition

• Brand new genuine product
• Supplied in original packaging
